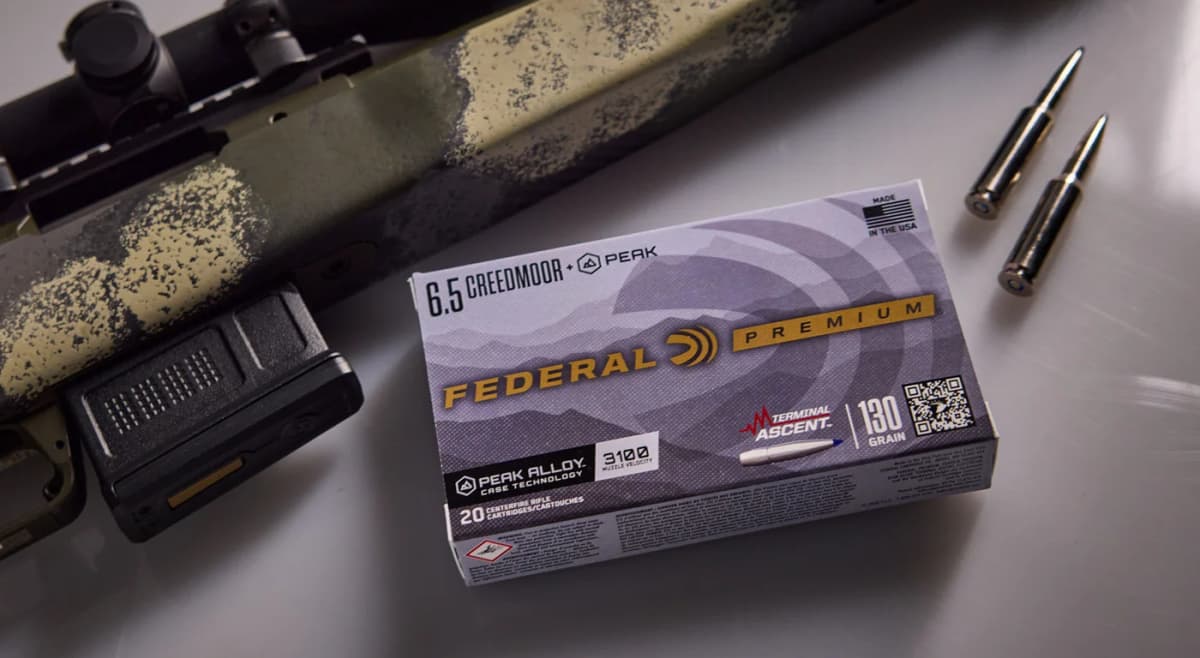

Federal 6.5 Creedmoor +Peak: PRC Speed in Your Existing Rifle

Federal 6.5 Creedmoor +Peak is a higher-pressure 6.5 Creedmoor loading built on Federal's Peak Alloy case technology. The case keeps the exact external dimensions of standard 6.5 Creedmoor brass, so it chambers, feeds, and headspaces in any standard 6.5 Creedmoor rifle. What changes is the pressure ceiling: Peak Alloy tolerates 80,000 PSI versus the 62,000 PSI limit of SAAMI-spec 6.5 Creedmoor brass.

That extra 18,000 PSI of headroom is the entire mechanism. More pressure behind the same bullet means more velocity out of the same barrel. Federal extracts 250 to 300 fps over conventional 6.5 Creedmoor loads without touching the chamber, the bolt face, the magazine, or the barrel. There is no new gun to buy and no gunsmithing involved. The cartridge that drops in is the same length and diameter your rifle already runs.

The case alloy is the product. Federal engineered Peak Alloy to survive repeated firings at a pressure that would flatten, stretch, or rupture conventional brass. The cases are reloadable, but they require different processes than standard brass, so handloaders should treat +Peak as its own component rather than a brass substitute. For a deeper look at the cartridge itself, our 6.5 Creedmoor Guide covers the ballistics that made this caliber the obvious first target for the technology.

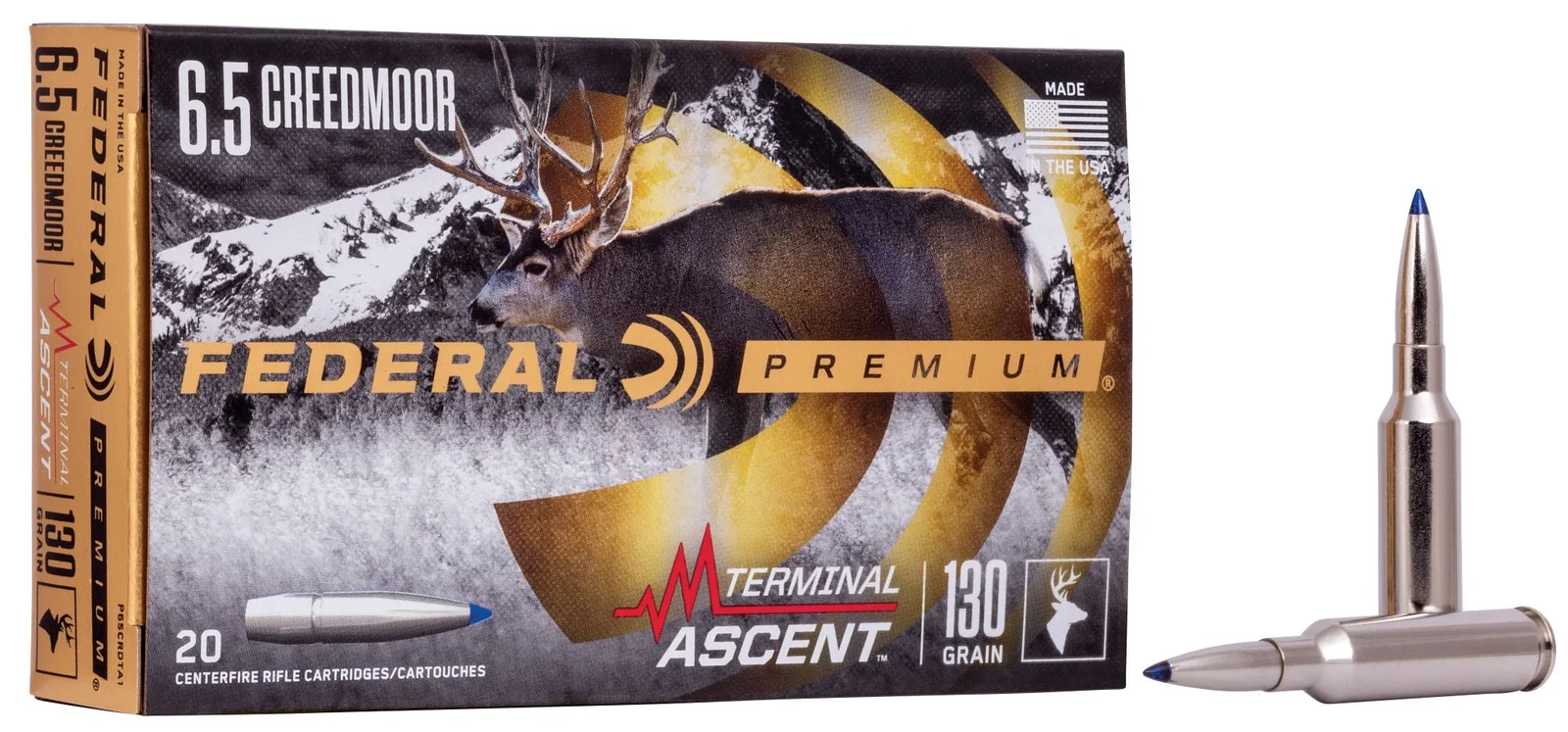

6.5 Creedmoor +Peak runs 250 to 300 fps faster than standard 6.5 Creedmoor across the launch lineup. The 130-grain Terminal Ascent is the headline number: standard 6.5 Creedmoor pushes that bullet at 2,800 fps, while the +Peak version clears 3,100 fps from a 24-inch barrel. That is a 300 fps jump from the identical projectile, achieved purely through the higher-pressure Peak Alloy case.

The 155-grain Fusion Tipped +Peak load runs roughly 2,900 fps, a figure that conventional 6.5 Creedmoor cannot reach with a bullet that heavy at standard pressure. Heavier-for-caliber bullets carry higher ballistic coefficients and resist wind better at distance, and +Peak makes those heavy loadings practical without the velocity penalty that normally comes with added mass.

Put it against 6.5 PRC and the gap is obvious. Federal's 130-grain 6.5 PRC Terminal Ascent leaves the muzzle at 3,000 fps. The 130-grain +Peak Terminal Ascent reaches 3,100 fps from a 24-inch barrel, edging past the PRC number from a shorter, more common cartridge case. The velocity that previously required stepping up to a magnum-length action now comes out of a standard 6.5 Creedmoor chamber.

Two loads ship first, in August 2026: the 130-grain Terminal Ascent at 3,100 fps and the 155-grain Fusion Tipped at 2,900 fps, both from a 24-inch barrel. The Terminal Ascent is Federal's premium bonded hunting bullet built for controlled expansion across a wide velocity window; the Fusion Tipped is a bonded deer-and-medium-game projectile that benefits directly from the heavier bullet weight that +Peak velocity supports.

Three more loads are confirmed to follow. The 127-grain Barnes LRX runs 3,100 fps, tying the Terminal Ascent for the fastest of the announced lineup and a monometal option for hunters who need deep penetration and weight retention. The 153-grain Gold Medal Sierra Tipped MatchKing at 2,900 fps brings match-grade precision to the platform. The 156-grain Berger Elite Hunter at 2,900 fps rounds out the heavy-for-caliber hunting options with one of the highest ballistic coefficients in the class.

MSRP lands between $57.99 and $73.99 per 20-round box, at or below current 6.5 Creedmoor and 6.5 PRC Terminal Ascent pricing, which runs $77.99 to $78.99. +Peak does not carry a premium over the standard high-end loads it competes with, which is the point: the same dollars buy a meaningful velocity increase rather than a different cartridge.

6.5 Creedmoor +Peak erases most of the practical reason to step up to 6.5 PRC. The standard 6.5 PRC Terminal Ascent (130-grain) runs 3,000 fps at $77.99 per box. The +Peak 130-grain Terminal Ascent reaches 3,100 fps from a 24-inch barrel at $72.99. The two loads land within about 100 fps of each other, and the +Peak version gets there from the smaller, more widely chambered case.

+Peak keeps the standard 6.5 Creedmoor case head and the .308-family bolt face, while 6.5 PRC runs a wider .532-inch case head that requires a magnum bolt face and a different bolt. The difference between the two has always been case capacity and action size, not just velocity. 6.5 PRC needs a longer magazine and a magnum-length action to feed its taller case. +Peak delivers the velocity from a standard short-action 6.5 Creedmoor, which means lighter rifles, cheaper actions, and broader rifle availability all stay on the table.

For a shooter weighing a new build, this reshuffles the math. If you already own a 6.5 Creedmoor, +Peak gives you PRC-class ballistics for the price of a box of ammunition. If you are buying new, the rifle selection in 6.5 Creedmoor is far deeper than 6.5 PRC. Our Best 6.5 Creedmoor Rifles guide ranks the factory options, and the broader 6.5 Creedmoor Guide covers where the caliber fits for hunting and precision work.

6.5 Creedmoor +Peak is compatible with standard 6.5 Creedmoor chambers because the Peak Alloy case carries identical external dimensions to standard brass. It headspaces and feeds exactly like any other 6.5 Creedmoor cartridge. Federal directs shooters to check with the rifle manufacturer before running +Peak, per its website FAQ, since the loading operates at 80,000 PSI rather than the standard 62,000 PSI. Federal specifically lists its Peak Alloy loads as incompatible with CVA break-action rifles, including the Scout, Hunter, and Apex models.

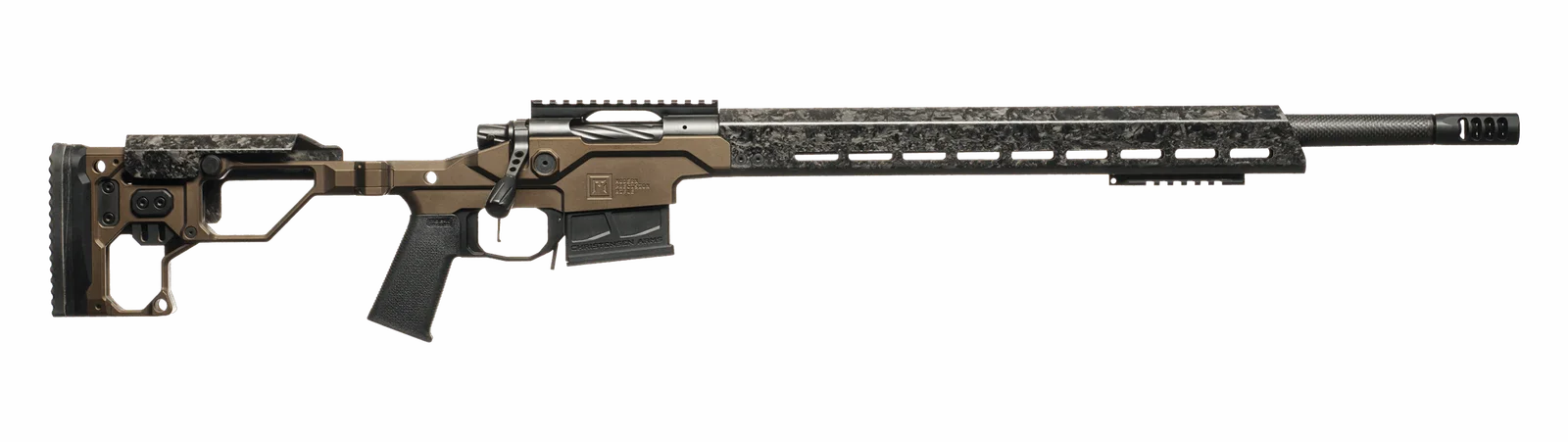

Modern precision bolt guns and AR-10/AR-pattern rifles chambered in 6.5 Creedmoor are the intended hosts. Quality bolt actions are engineered with substantial pressure margin, and gas-gun shooters should confirm their platform's rating before committing to a case of +Peak. The manufacturer confirmation step matters here: a higher-pressure load is only an upgrade in a rifle built to handle it.

If you are spec'ing a precision rifle or a semi-auto build around this ammunition, use our rifle builder to lay out a 6.5 Creedmoor platform, and check the Best 6.5 Creedmoor Rifles guide for factory rifles rated for high-pressure loads.

Peak Alloy is a platform technology, not a single product. 6.5 Creedmoor +Peak is the launch case because of the caliber's popularity, but Federal already lists 6.5 Creedmoor +Peak as its own caliber line on the company site, signaling that this is a permanent addition rather than a limited run. Federal says it is natural to expect the higher-pressure case approach to reach new cartridges with different bullet diameters down the road.

The implication for legacy cartridges is significant. Applying Peak Alloy to an established chambering would deliver the same kind of velocity uplift in existing rifles built for that round, without the industry having to introduce and support a new cartridge. Mike Holm, Federal's Director of Centerfire Rifle Ammunition, framed the strategy directly: “We saw the big-picture potential for this technology from the start. It was obvious what Peak Alloy meant for legacy cartridges, and considering the popularity of 6.5 Creedmoor, 6.5 Creedmoor +Peak was the natural place to show the world what it could do.”

That positioning matters for anyone building a rifle today. A 6.5 Creedmoor build now sits on a proven Peak Alloy upgrade path, gaining velocity later without a new barrel or bolt. Browse our precision rifle catalog to see the components and platforms that fit a 6.5 Creedmoor build positioned to take advantage of it.
