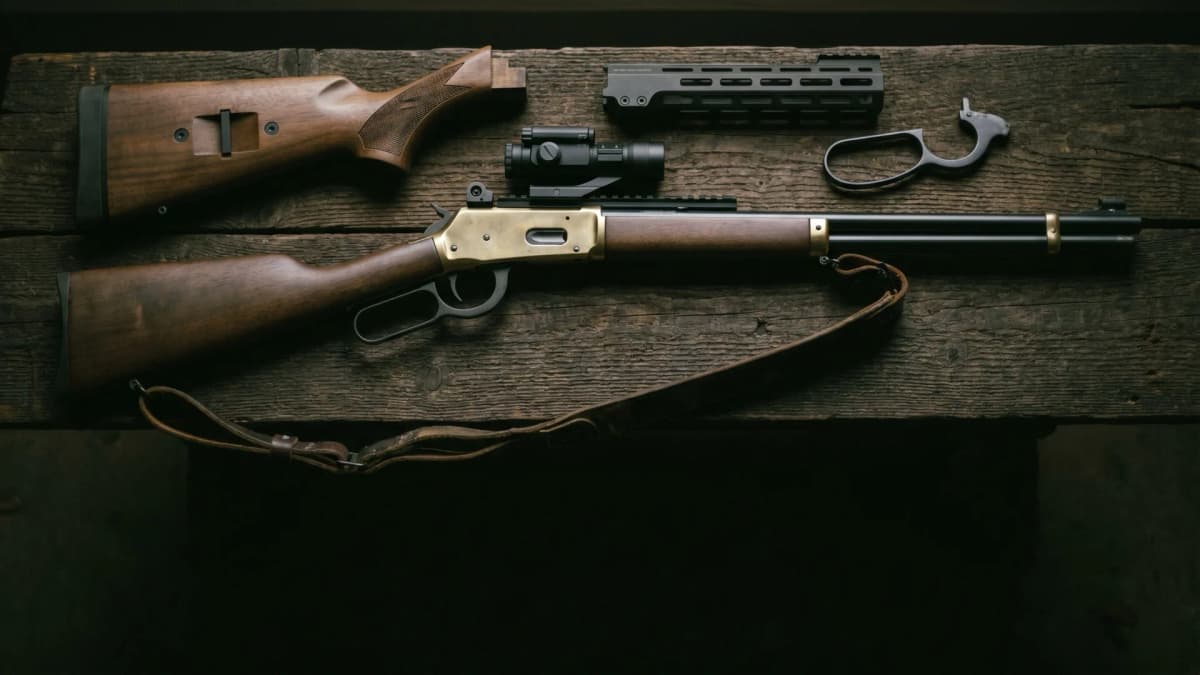

Henry Lever Action Accessories 2026: Sights, Scopes, Slings

Quick Answer: What To Upgrade First

Start with sights, because the factory rear sight is the weakest part of every Henry. On a pistol-caliber Big Boy, the Skinner Big Boy Express receiver peep ($95) is the single biggest accuracy and speed gain you can buy, and it bolts to the existing rear holes. On a .45-70 large-frame rifle, the XS ghost-ring set ($99.99) does the same job and pairs with the XS lever rail, which adds an optic mount. Only after the irons are sorted does a scope mount and glass make sense. Furniture, slings, and the large loop lever are handling and comfort upgrades that come last. Still deciding which Henry to buy before you spend on parts? Our best lever action rifle guide covers where the Big Boy, Long Ranger, and X Model sit against Marlin and the rest of the field. You can also browse the full accessory catalog to compare parts side by side.

Affiliate links - purchases support this site at no extra cost to you. (?)

Sights: Fix The Factory Rear First

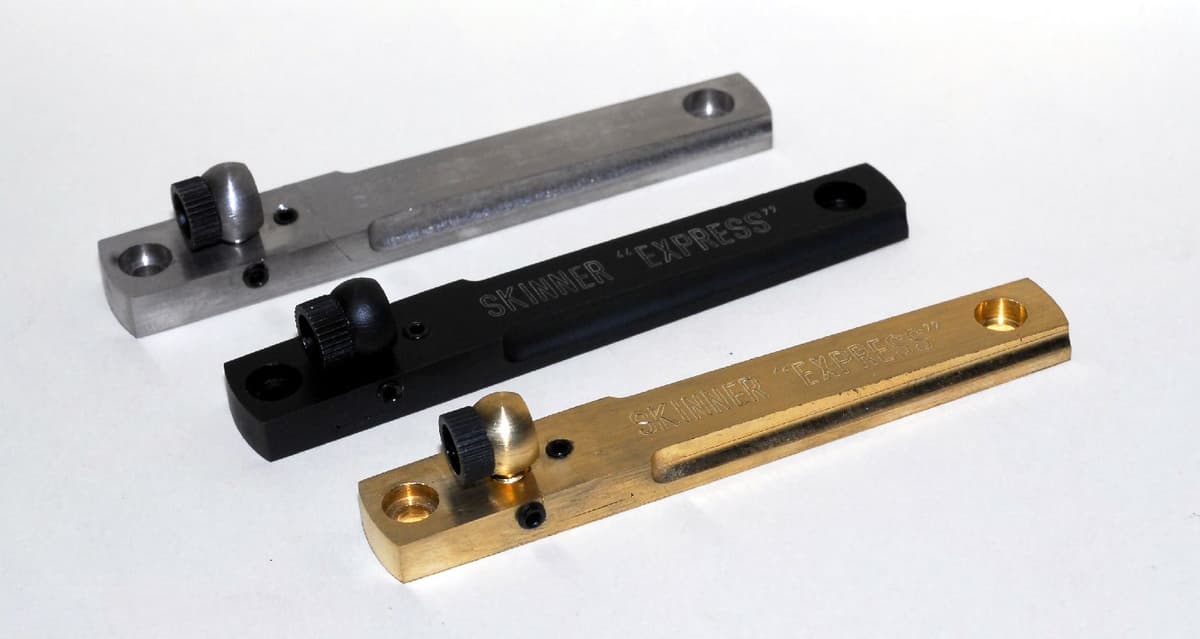

A receiver aperture is the highest-impact sight upgrade because it moves the rear sight back toward your eye, lengthens the sight radius, and lets your eye automatically center the front post in the ring. On the pistol-caliber Big Boy, the Skinner Big Boy Express is the standard answer. It machines from solid bar stock in steel, brass, black-gold, or stainless to match the receiver, bolts to the factory rear drilled-and-tapped holes, and ships with a .096-inch aperture that swaps to four other sizes. Run a large opening for ghost-ring speed in the timber or a small aperture for target precision off a bench. The one caveat is fit: it covers the H006 brass and H012 steel Big Boys in .32 through .45, but not the large-frame .45-70 and .30-30 rifles, which use a different receiver. Plan on a taller front sight if the original sits low for your zero.

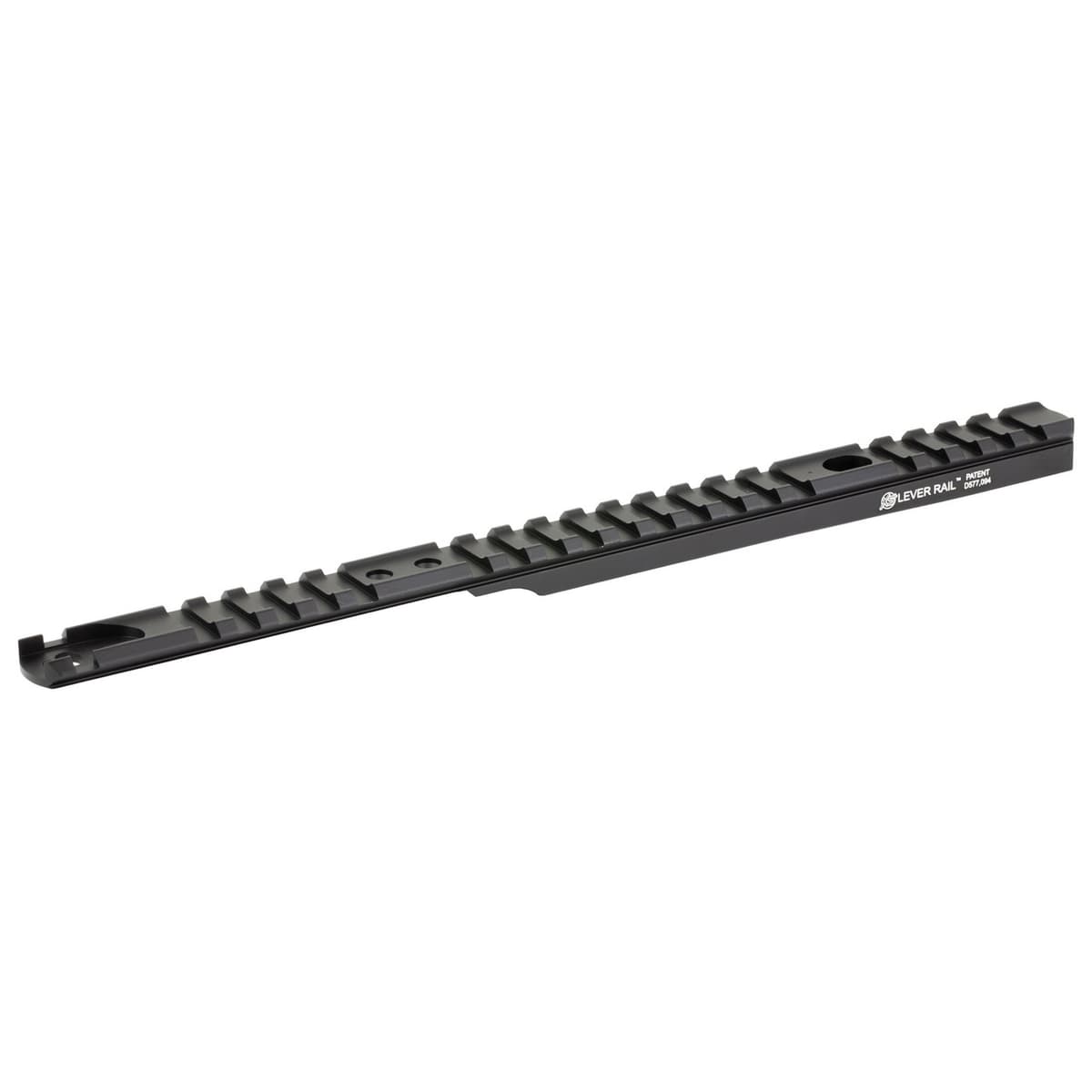

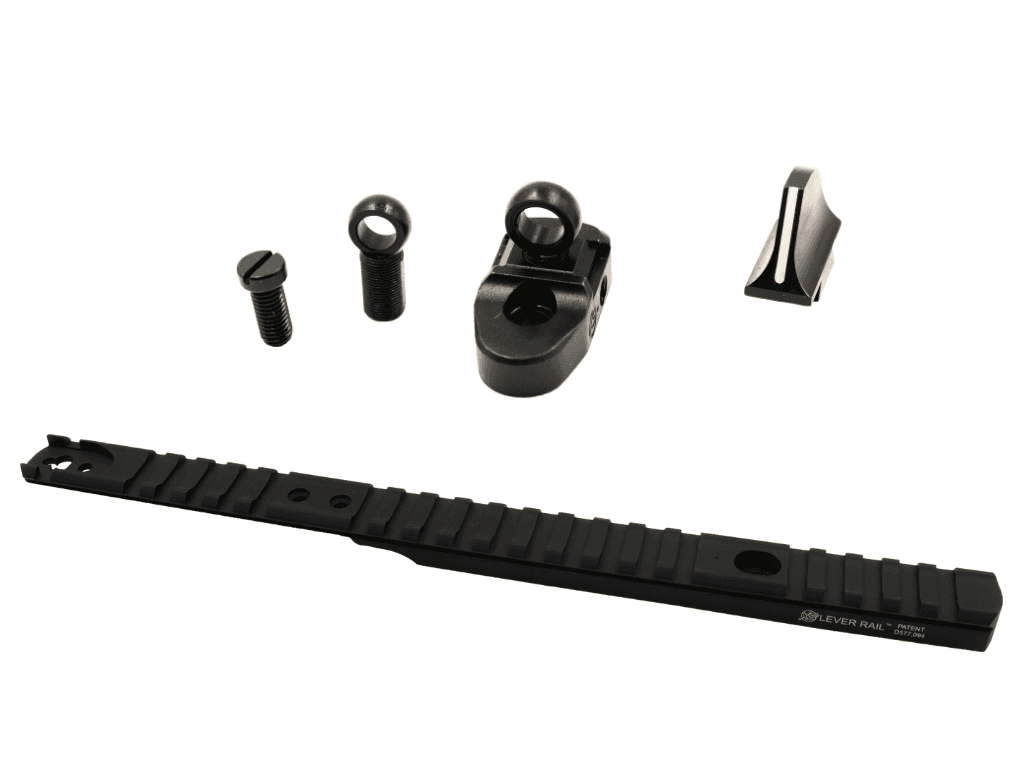

On the .45-70, the XS Sights Henry Ghost Ring Set is the better fast-irons answer. The ghost ring is dramatically quicker than the factory buckhorn inside 100 yards, and once you add the separately sold XS lever rail it sits on, that same rail gives you a scout-scope and red-dot base. Two apertures tune speed versus precision. The rear sight will not zero without that rail, so budget for both parts. If you only want the optic base and plan to run a scope rather than backup irons, the standalone XS Henry Lever Rail is the rigid Picatinny foundation, low enough to keep the factory irons co-witnessed on most builds.

Optic Mounts And Scopes: One Per Henry Family

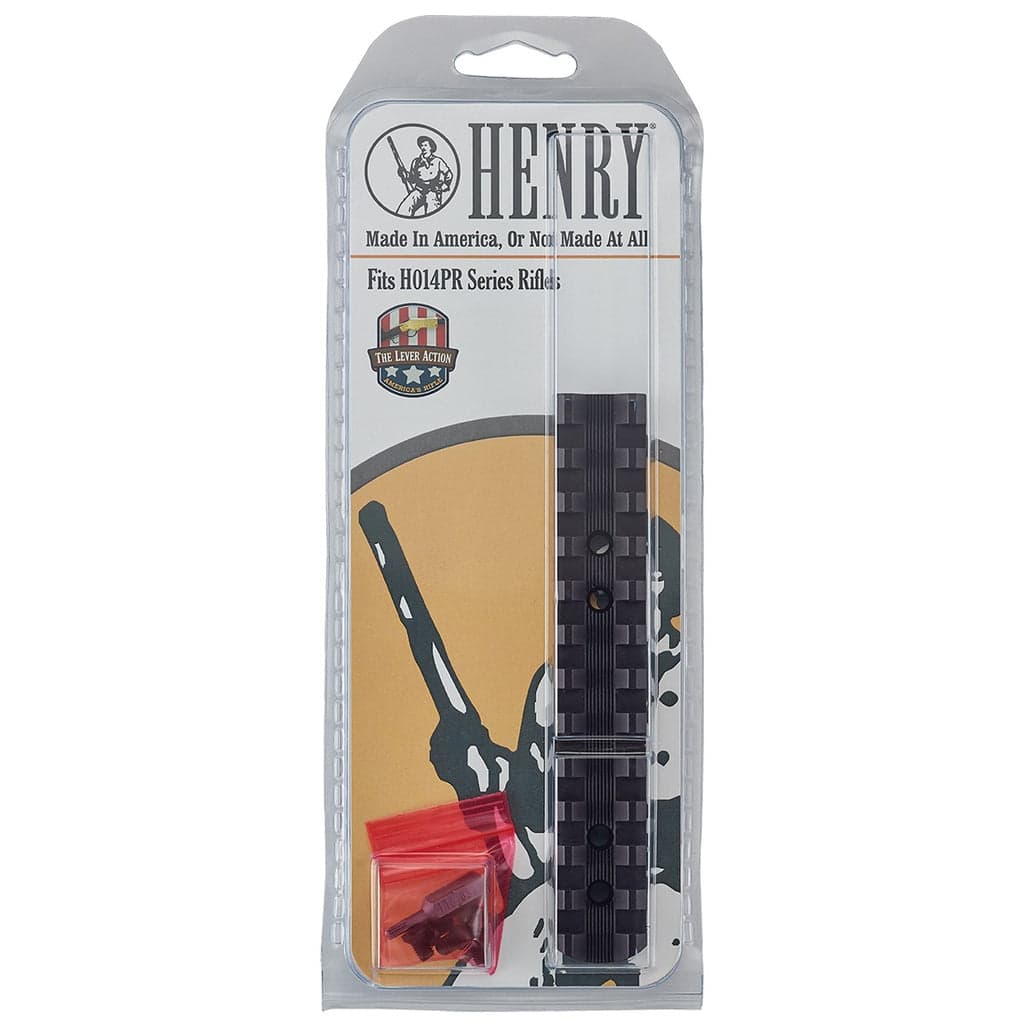

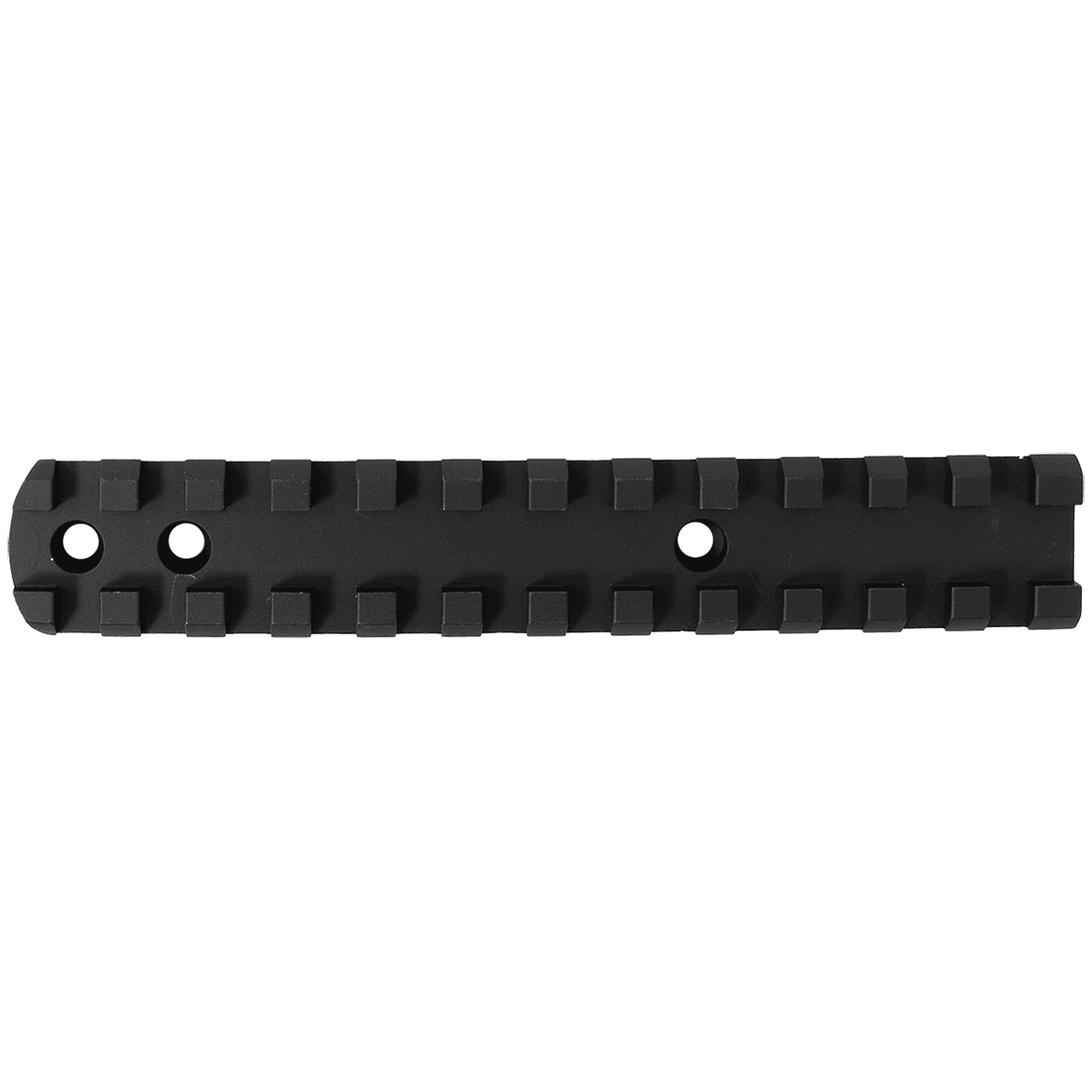

No Henry ships with a factory optic rail, so the right mount depends entirely on which model you own. For the steel pistol-caliber Big Boy, the Ranger Point RHINO 1913 mount ($40) is one of the lowest-profile options available at 0.28 inches, built from steel with heavy 8-40 fasteners that hold up under magnum recoil and keep the factory irons usable on most builds. It fits steel receivers only, not the brass guns, and takes Picatinny rings rather than Weaver-spec. For the box-magazine Long Ranger, skip the guesswork and use the factory EGW-made H014PR base ($28.29); a one-piece rail is more rigid than two-piece ring mounts and it is machined to the H014 receiver. For the .45-70, the XS Henry Lever Rail covered above is the optic base.

For glass, the Leupold VX-Freedom 3-9x40 ($299.99) is the right scope for a lever gun because it stays light, the low-light glass punches above its price, and the 3-9x range matches realistic lever-gun distances without making the rifle muzzle-heavy. The duplex reticle and second focal plane mean holdovers only track true at 9x, but for the deer-woods and brush-country work these rifles do, that is rarely a limitation. The Gold Ring lifetime warranty is the reason it outlasts cheaper scopes on a hard-kicking .45-70. If you came from a rimfire build, the same scope-mount logic applies on the Ruger 10/22 upgrades playbook: the receiver has no integral rail, so the base is the first purchase before the optic.

Handguards: M-LOK On A Wood Lever Gun

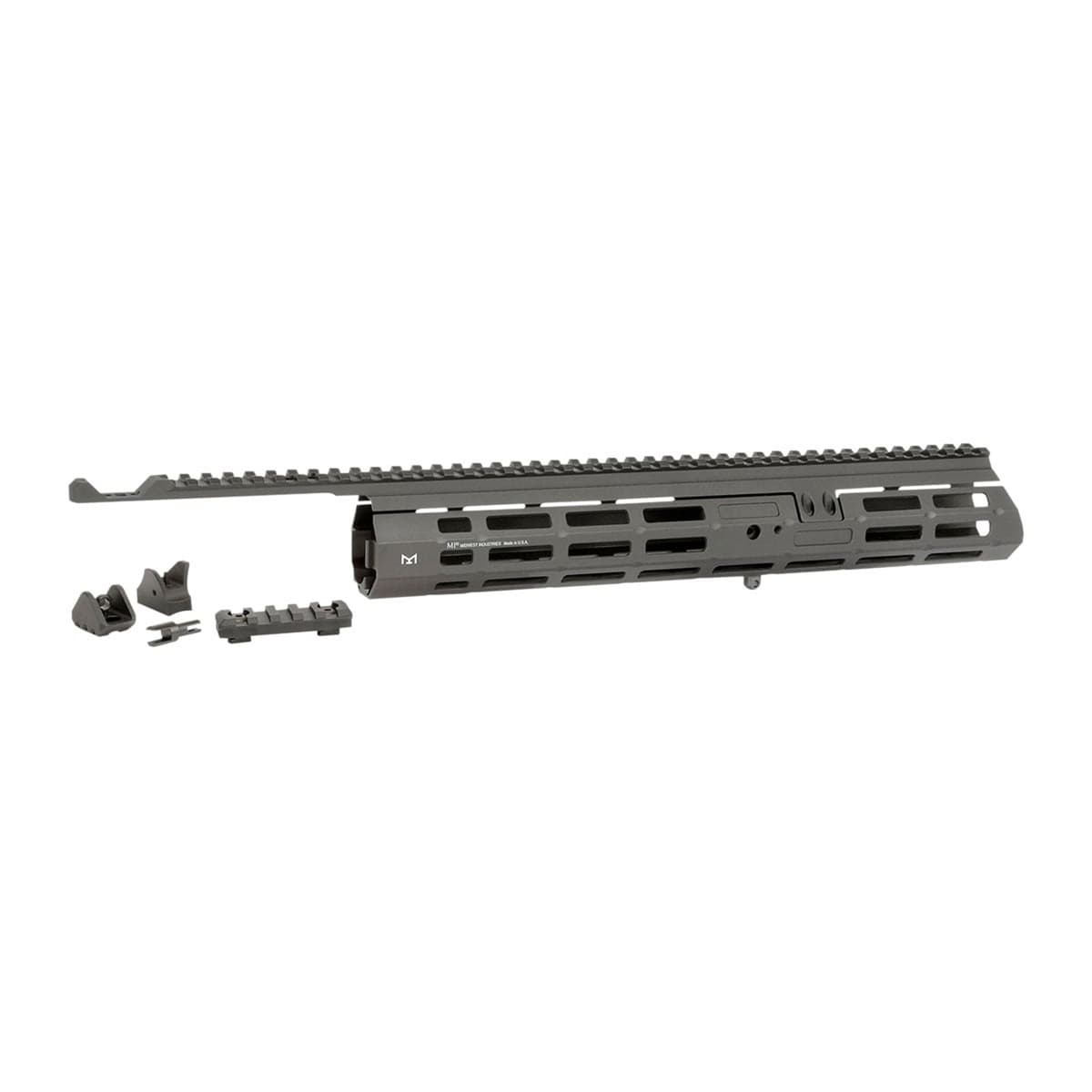

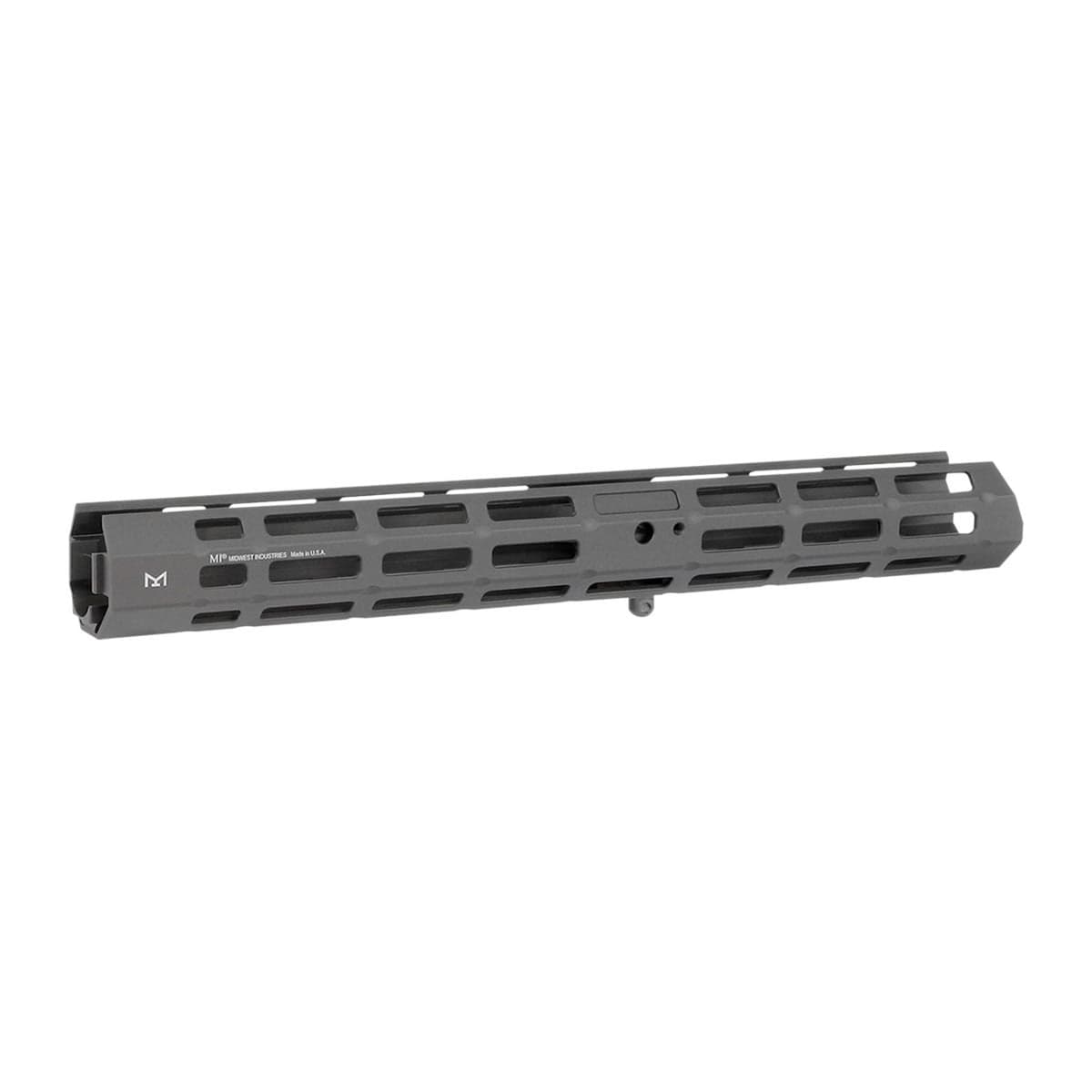

An aluminum M-LOK forend is the upgrade that turns a tube-fed Henry into a light-and-bipod platform. The Midwest Industries Henry M-LOK G2 handguard ($178.95) replaces the factory wood with 6061 aluminum that is far more rigid and adds M-LOK slots for a weapon light or bipod. It fits the .357, .44/.45, .30-30, and .45-70 Henrys that do not use barrel bands, but not brass receivers or octagon barrels, so confirm your exact model before ordering. If you want sights baked in, the Midwest Industries Sight System handguard ($314.95) does the M-LOK job and adds an integrated adjustable ghost-ring iron set plus a full-length top Picatinny rail in one part. It runs roughly $135 more and adds weight, which is more than most shooters need if all they want is light mounting, but it is the single-install answer for a worked-over field or defensive Henry. This kind of modern M-LOK lever build is the same direction newer factory guns are heading; the modern Derya RAN lever action ships with M-LOK from the box.

Furniture: Walnut With An Adjustable Comb

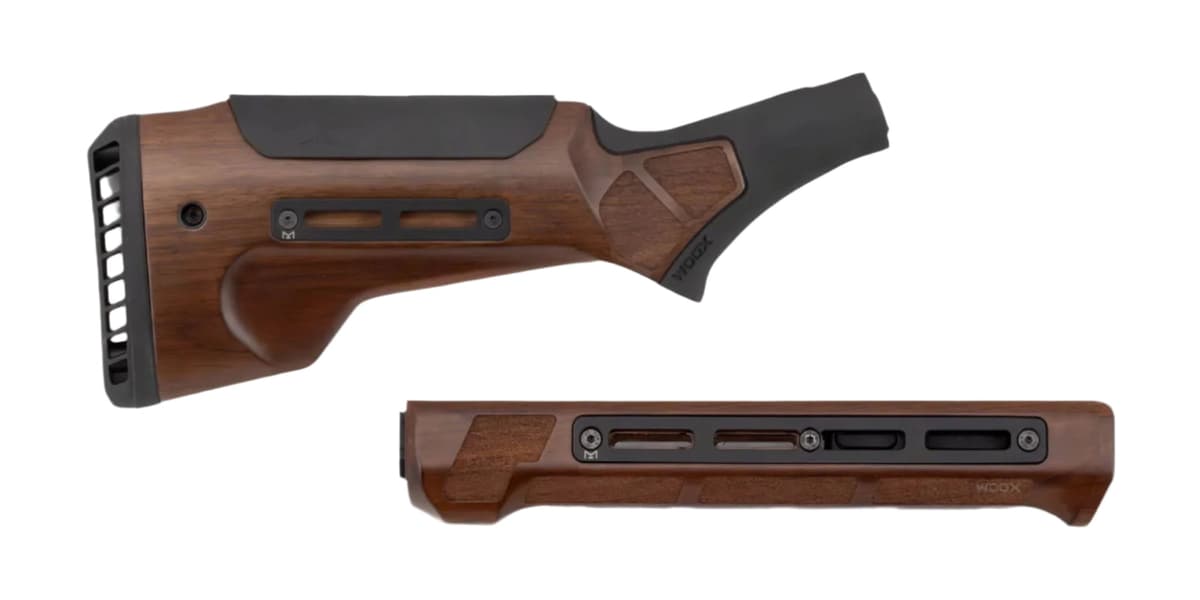

The factory Henry stock has no cheek riser, which is fine over irons and wrong under a scope. The WOOX Bravado stock and handguard set ($799 for the high-grade set) fixes that with a five-position adjustable cheek riser, so you can put your eye behind the optic without floating your chin off the comb. It is premium Claro walnut with genuine fit-and-finish, and it adds QD sling sockets and M-LOK mounting the factory furniture lacks. The set fits over 120 Henry SKUs across the pistol-caliber Big Boy, the X Model, and the large-frame .30-30, .45-70, and .360 Buckhammer rifles. It does not fit the box-magazine Long Ranger, the Homesteader carbine, the Henry Axe, or straight large-loop levers, which use different stock geometry. It is the most expensive upgrade here and it adds weight, but for a scoped hunting Henry the adjustable comb alone justifies it.

Slings And Levers: The Last Ten Percent

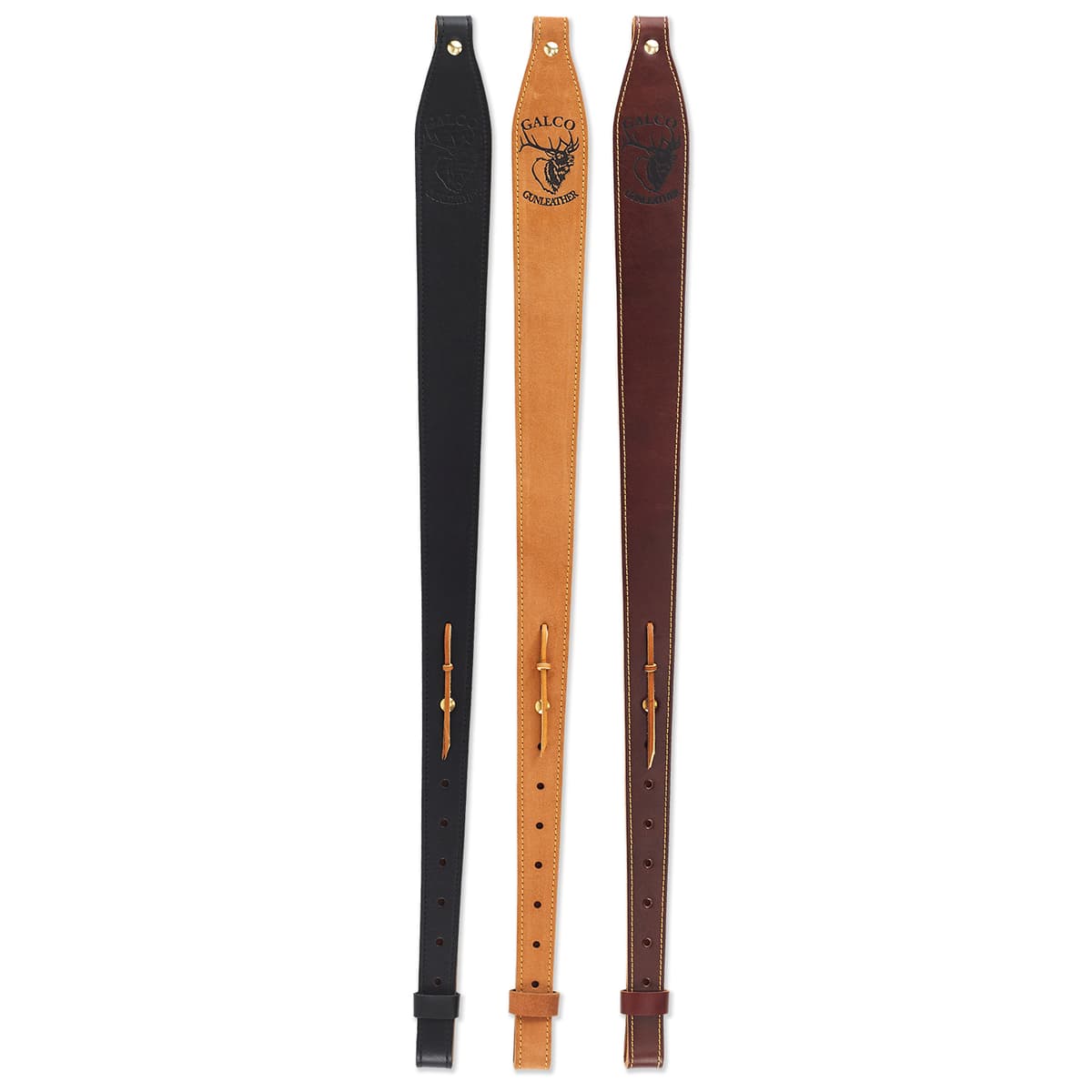

A leather carry sling is the period-correct finishing touch on a brass-and-walnut Henry. The Galco Cobra Style sling ($49.99) is leather with a comfortable cobra profile for all-day field carry, and it uses standard 1-inch swivels that fit across Henry models. It is a carry sling rather than a shooting-support loop, and the leather wants occasional conditioning, but it looks and ages the way a lever gun should. The Henry large loop lever ($50 to $84.95) is the cheapest meaningful handling upgrade you can do: a machined-steel loop that drops in with included instructions, speeds up cycling, and clears a gloved hand. It fits the standard rifles, not the pre-2008 first-generation H006 Big Boys or the box-magazine H014 Long Ranger, and it is redundant on X Models, which already ship with a large loop. For a sense of how deep a competing lever aftermarket can run, the Marlin 1894 aftermarket ecosystem shows where the Henry parts catalog is still growing. Henry also runs the large-loop look on its mare's-leg pistols, covered in the Henry Bear's Leg launch coverage.
