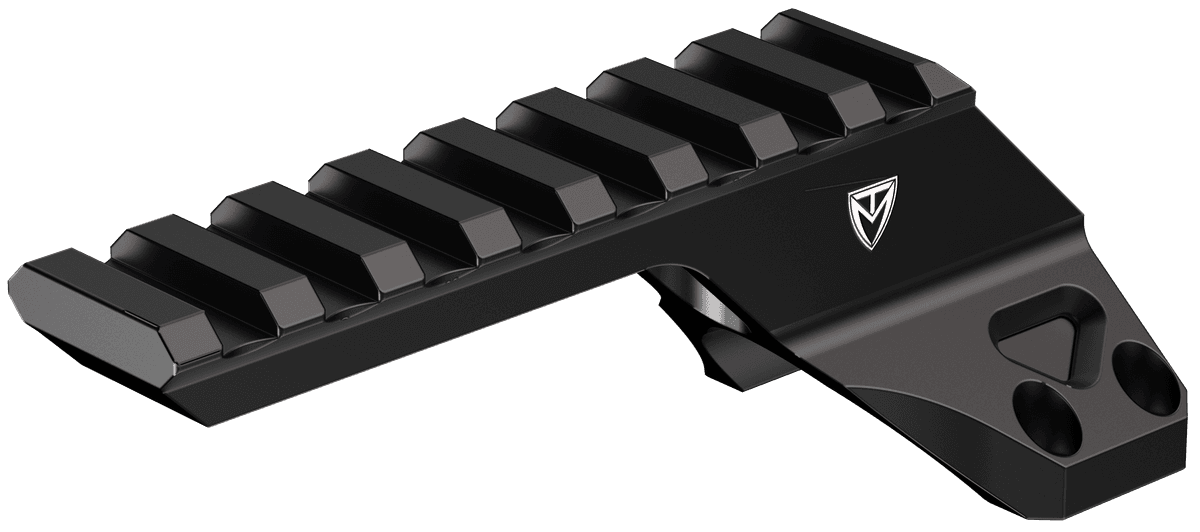

X4 Diving Board Mount 30mm
30mm top-cap rail for mounting the X4-LRF above a compatible X4-FCS, Geissele, or Reptilia LPVO mount.
Quick Specs
- Price
- $199
- Weight
- 2 oz
- Brand
- Maztech
- Category
- offset-mount
Features
- •30mm X4-FCS, Geissele, and Reptilia mount fit
- •Eight Picatinny rail stations
- •7075-T6 billet aluminum
- •2.0 oz
Capability Boosts
Modularity+2
Recommended For
Duty/Patrol+2
duty+2
Competition+2
customization+2
Compatibility Tags
family: modern-riflefamily: ar-patternfamily: bolt-actionfamily: lever-actionfamily: pccfamily: shotgunfamily: bullpuptube: 30mmmount-system: maztech-x4-fcsmount-system: geissele-super-precisionmount-system: reptilia-aususe: precision
Overview
The Maztech X4 Diving Board Mount 30mm replaces the top cap on a compatible 30mm X4-FCS, Geissele, or Reptilia LPVO mount and adds eight Picatinny rail stations above the scope. That position lets an X4-LRF sit over the optic when the rifle lacks enough clear front rail space for a conventional rangefinder position.
The 7075-T6 aluminum rail weighs 2 ounces and ships with four 8-40 fasteners plus a T15 driver. Its 58 mm maximum objective clearance is an important fit check for scopes with large front housings.
Key Features
- Top-cap fit for compatible 30mm X4-FCS, Geissele, and Reptilia mounts
- Eight Picatinny rail stations
- 58 mm maximum scope objective diameter
- 7075-T6 billet aluminum construction
- Four included 8-40 fasteners
- Included T15 driver
Pros
- +Moves the X4-LRF above the scope when front rail space is limited
- +Keeps the rangefinder near the rifle centerline
- +Adds only 2 ounces before the mounted accessory
Cons
- −Fits only the listed mount families and matching tube diameter
- −Raises the X4-LRF above the scope and increases overall height
- −Large scope objectives above 58 mm do not clear
Detailed Specifications
- Mount Type
- 30mm scope-mount top-cap Picatinny rail
- compatibleMounts
- Maztech X4-FCS, Geissele, and Reptilia 30mm mounts
- railStations
- 8
- maximumObjectiveDiameter
- 58 mm
- fasteners
- Four 8-40 screws
- driver
- T15
- Material
- 7075-T6 aluminum
- dimensions
- 4.0 in L x 1.7 in W x 1.5 in H
- weight
- 2.0 oz
- madeIn
- USA
- sku
- MZT010-30-BLK
