RangefindersPremium

Leupold

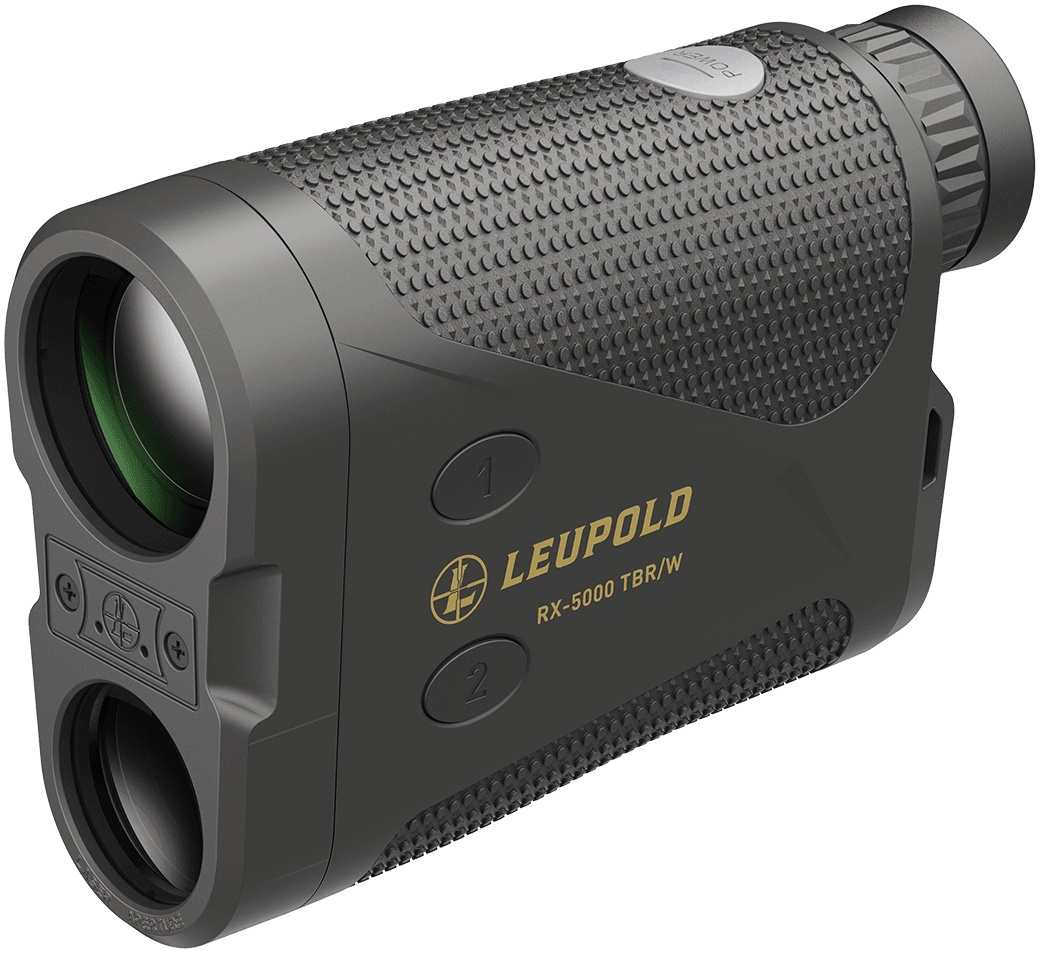

RX-5000 TBR/W Rangefinder

Best waypoint-aware hunting rangefinder. RX-5000 TBR/W adds 5,000-yard reflective ranging, TBR/W rifle data, bow modes, Arca support, and onX-style pin dropping through the Leupold Control app.

No image available

Quick Specs

Price
$800
Weight
9.7 oz
Brand
Leupold
Category
rangefinder

Features

  • 8x30 monocular
  • 5,000 yd reflective / 3,100 yd tree / 2,000 yd deer
  • TBR/W rifle angle compensation
  • Leupold Control app and onX Hunt pinning

Capability Boosts

Long Range+3
Reliability+1

Recommended For

Outdoor Defense+4
Range Training+3
Home Defense
Duty/Patrol

Compatibility Tags

type: rangefinderguide-onlyuse: huntinguse: archeryuse: precisionlrf: angle-compensatedfeature: gps-pinningconnectivity: bluetooth

Overview

The RX-5000 TBR/W is not trying to be a PRS Kestrel replacement. Its killer feature is field navigation: range a point, drop a waypoint to your phone, then move through terrain with that pin already on the map. Add strong long-range specs, TBR/W, Bow Mode, and an Arca-compatible saddle, and it becomes a serious western hunting tool.

Key Features

  • Remote pin dropping to digital maps through Leupold Control app
  • TBR/W mode for rifle angle compensation
  • Bow Mode with Archer's Advantage and TRIG options
  • Long Range mode for extended line-of-sight ranging
  • Arca-Swiss compatible tripod saddle

Pros

  • +Waypoint feature is genuinely useful for spot-and-stalk hunting
  • +Strong reflective, tree, and deer range specs
  • +Works for both rifle and bow hunting

Cons

  • Not a full Applied Ballistics/GeoBallistics solver
  • Compass calibration matters when using pinning features

Detailed Specifications

Magnification
8x
Objective Diameter
30mm
range
5,000 yd reflective / 3,100 yd tree / 2,000 yd deer
mode
TBR/W, Bow, Long Range, LOS
display
Red OLED
weight
9.7 oz
