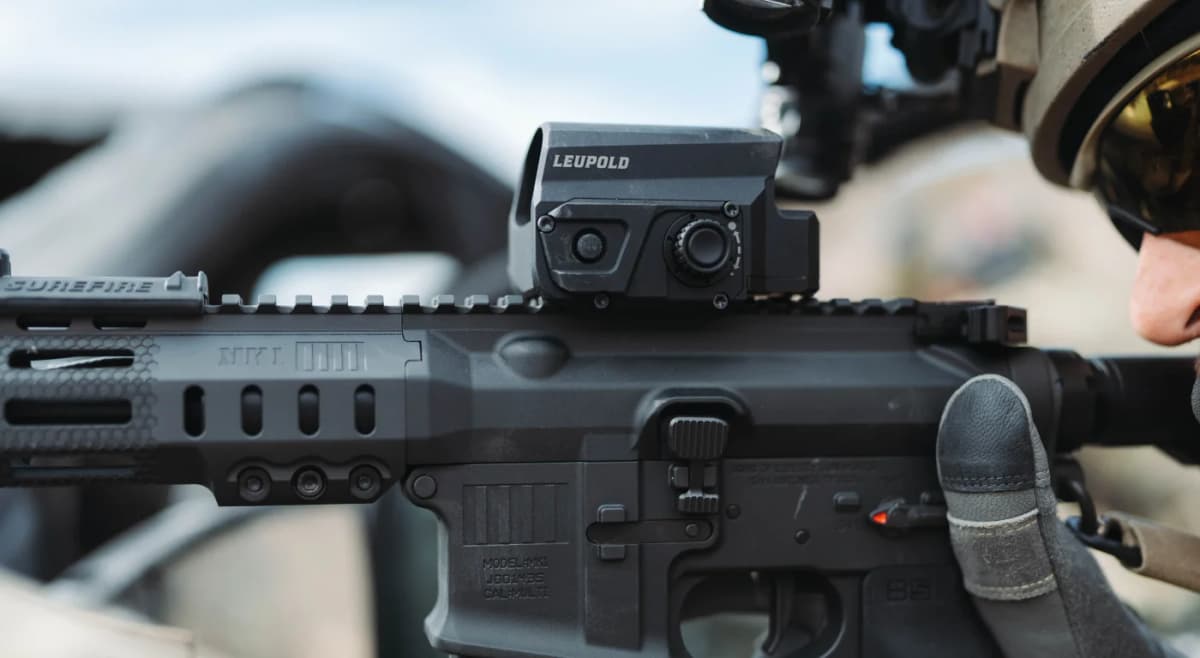

Leupold LCO Pro F2: Multi-Reticle Carbine Red Dot for 2026

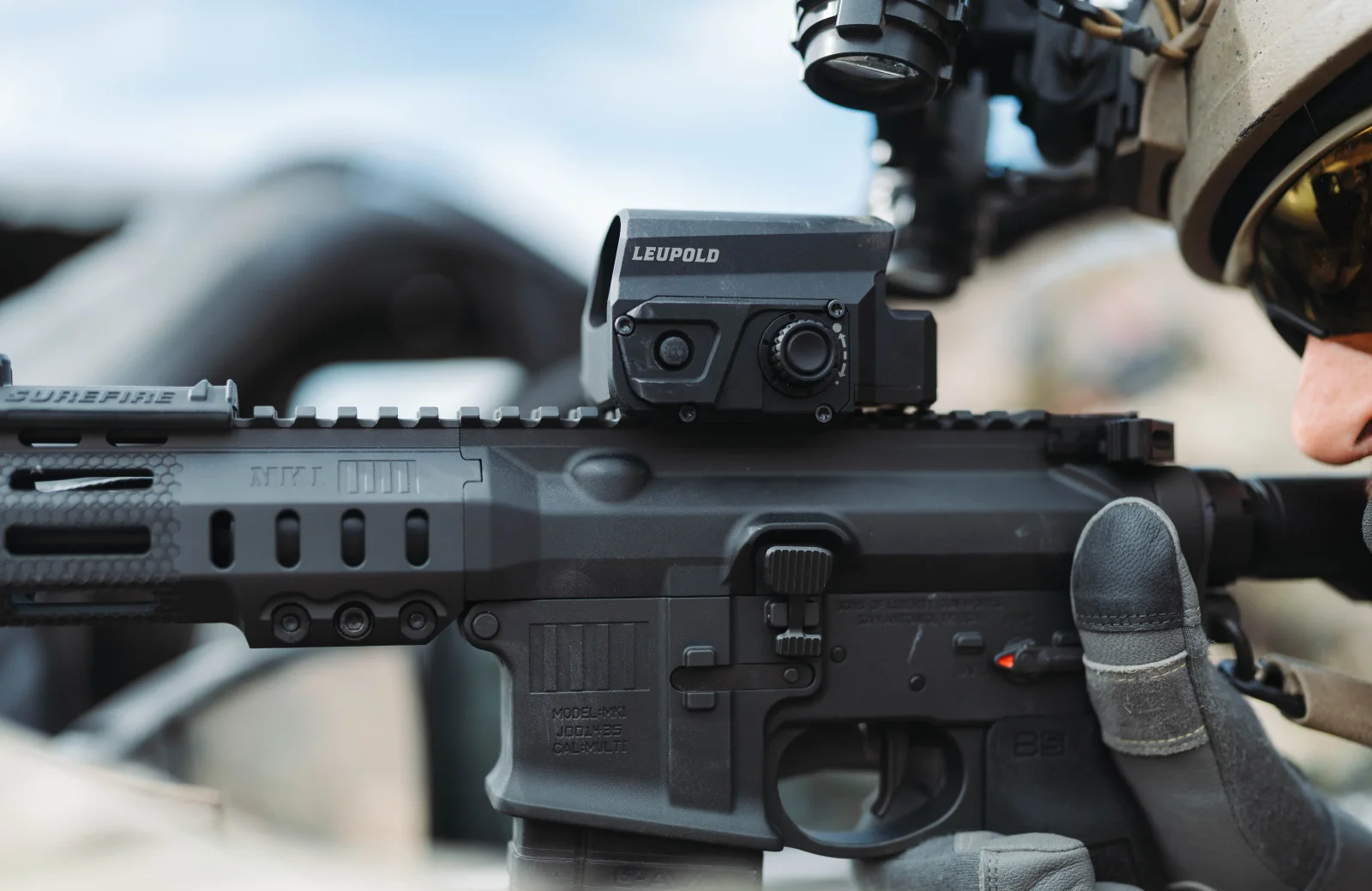

The Leupold LCO Pro F2 is a full-size 1x carbine red dot, the second-generation Leupold Carbine Optic built for shooters who want a wider viewing window than a micro dot delivers. It runs a professional-grade aspheric lens for a distortion-free sight picture and a redesigned one-piece aluminum housing that recesses and shields the front lens from rain and glare for faster target acquisition. The integrated mount seats the optic at absolute co-witness with standard AR iron sights, so backup irons line up through the glass without a riser.

Where a micro like the Aimpoint T-2 trades window size for a three-ounce footprint, the LCO Pro F2 goes the other direction. At 9.6 ounces it is a larger, heavier optic, and the payoff is situational awareness: a wide field of view that keeps both eyes open and the target framed during fast transitions. If you are deciding between a red dot, an LPVO, and a prism for a carbine, our AR-15 optics selection guide breaks down where a 1x red dot like this one wins.

The headline feature is reticle flexibility. Four selectable reticles cover a 1 MOA dot, a dot with compass points, a circle-dot, and a circle-dot with compass points. The circle-dot options give a fast, eye-catching aiming reference for close-quarters work, while the standalone 1 MOA dot tightens the aiming point for more precise shots at distance. One optic covers both roles, so you are not locked into a single reticle the way you are with most red dots.

Feeding the reticle is a rapid illumination dial with 20 daylight and 10 night vision settings, 30 positions in total. The daylight range climbs bright enough to hold against desert glare, and the dedicated night vision band dims low enough to pair with an image intensifier without blooming. A lockout mode prevents accidental setting changes once you have the brightness where you want it. For a shooter running an IR laser and NODs, our AR-15 night vision setup guide covers how optic height and dot brightness factor into a passable co-witness under NODs.

The LCO Pro F2 runs a single CR123A battery for roughly 30,000 hours of average life. Leupold's Motion Sensor Technology powers the illumination down after five minutes of inactivity and wakes it instantly on movement, which is what stretches a CR123A that far. It is a shorter headline number than the 50,000-plus hours some CR2032 competitors claim, but the motion-sensor sleep closes most of that gap in real use where the optic spends far more time idle than lit.

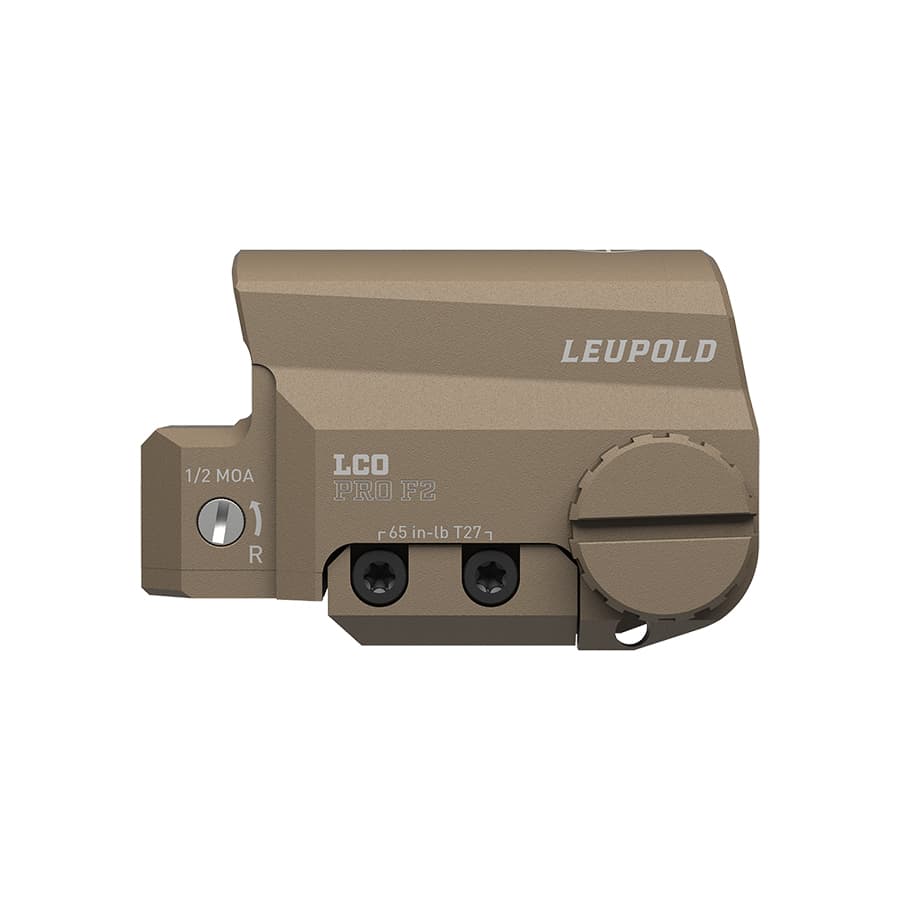

Build quality is Leupold's other selling point. The one-piece housing is designed, machined, and assembled in the USA, built to survive a minus 40 to 160 degree Fahrenheit range and cycled on Leupold's recoil simulator, and it is fully waterproof and fogproof. The whole package is backed by Leupold's lifetime guarantee, transferable to any owner. It ships in matte black (part 187640) and Flat Dark Earth (part 187641). Mounting one is straightforward on any flat-top AR; our AR-15 optic mounting guide and zeroing walkthrough cover torque and a 50/200 zero for a 1x carbine dot.

At $899.99, the LCO Pro F2 sits in the premium red dot bracket next to the Aimpoint Micro T-2 and Trijicon RMR HD, and the decision comes down to window size versus footprint. The T-2 is the durability benchmark with a 50,000-hour CR2032 and a compact 18mm micro body, but its window is small and its 2 MOA dot is fixed. The Trijicon MRO undercuts both on price with a larger 25mm window. The LCO Pro F2's argument is the widest full-size window of the three plus four selectable reticles, trading the micro footprint and headline battery number for versatility and viewing area.

If you want to see where reflex and micro red dots from Aimpoint, Trijicon, and Holosun land against each other, our Trijicon optics guide and first $500 in AR-15 upgrades both rank optics by role and budget. You can also drop the LCO Pro F2 onto a build and check clearance and co-witness in our rifle builder.

The LCO Pro F2 is Leupold's answer for carbine shooters who want a wide, full-size red dot window with more than one reticle and are willing to pay premium money and carry a few extra ounces for it. The four selectable reticles are the genuine differentiator in a segment where most optics lock you into a single aiming point, and the 30-setting illumination with a dedicated night vision band makes it a real NODs-ready option. US manufacturing and a lifetime guarantee back the $899.99 price.

The tradeoffs are honest: 9.6 ounces is heavier than a micro, and the CR123A's 30,000-hour rating trails the CR2032 giants on paper, though motion-sensor sleep narrows the real-world gap. For a duty or home-defense carbine where window size and reticle choice matter more than shaving weight, it earns a look next to the Aimpoint T-2 and Trijicon RMR HD. Compare it against other 1x options in our AR-15 optics guide before you commit.
