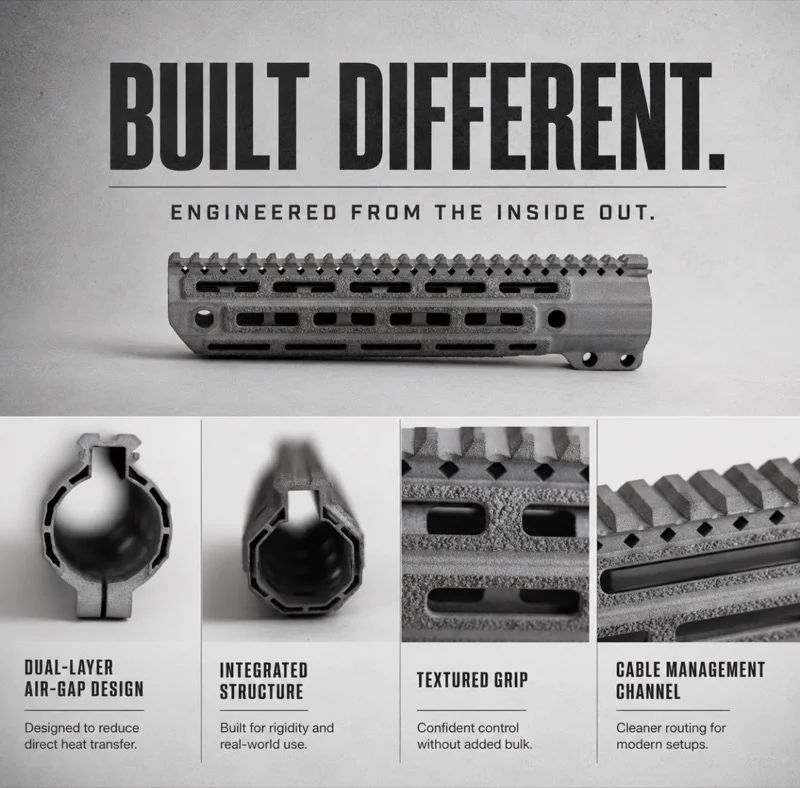

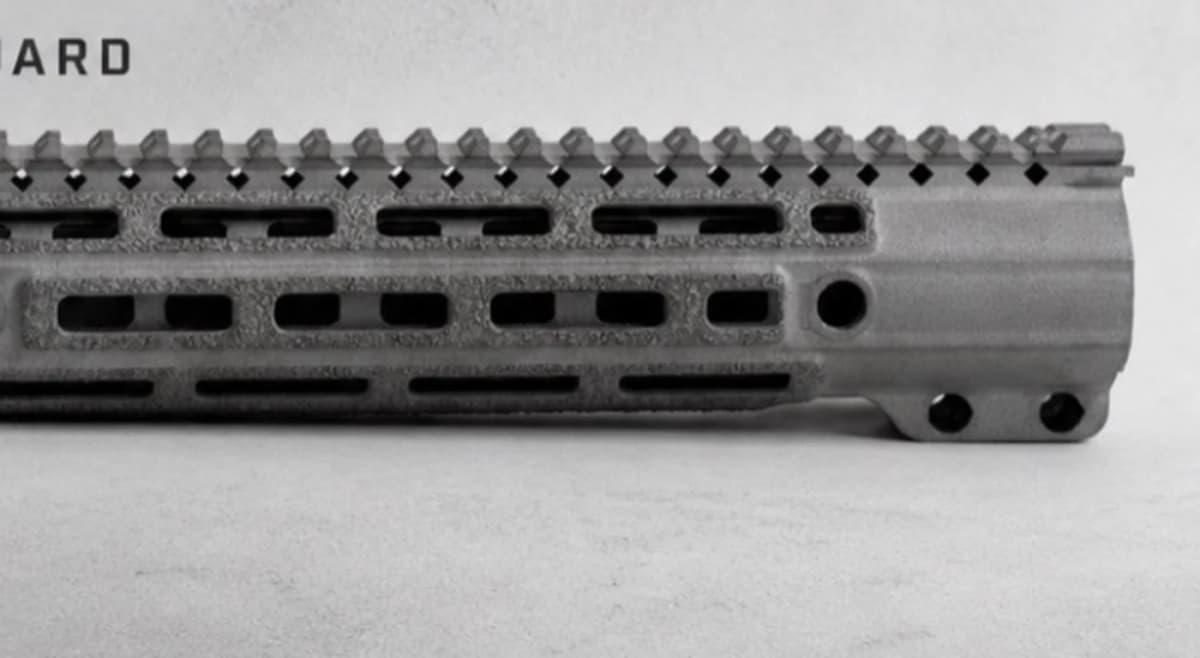

The DualCool CP1 is the first production AR-15 handguard built around a sealed air gap as the primary thermal barrier. Mitchell Defense 3D-prints the rail as a single integrated structure with two concentric shells: an inner shell that lives close to the barrel and gas tube, and an outer shell with the integrated grip texture that the shooter actually holds. Between them is an engineered air gap. Air is one of the most effective passive insulators available, which is the same principle a thermos wall or a vehicle heat shield relies on. Applied to a free-float rail, it slows heat conduction from the inner to outer shell during sustained fire instead of transferring it directly into the support hand.

That matters more than handguard marketing usually admits. On a high-round-count duty, training, or suppressed build, conventional single-wall M-LOK rails get hot enough to limit how long you can stay on the gun before you need a glove or a support hand swap. Suppressors push gas backward through the system and concentrate heat under the rail, and slick-side rails made of one piece of aluminum transfer that heat into the support hand directly. The DualCool's sealed air gap interrupts that path. The handguard still gets hot at the inner shell, but the outer surface lags well behind it.

The standard CP1 is offered in seven lengths covering most common AR-15 builds: 7 inch for short SBR and PDW configurations, 9.3 and 10.5 inch for 11.5-inch SBR and pistol uppers, 11.5 inch for 14.5-inch pinned-and-welded carbines, 13.5 inch for 16-inch carbines, and 15 inch for 18 to 20 inch DMR-style barrels. M-LOK slots are positioned at 3, 6, 9, and 45 degrees and are reinforced for hard-mounted accessories like lights, lasers, and bipod studs. The top runs a full-length Picatinny rail in line with the upper receiver for a continuous optic and BUIS surface.

Mitchell Defense prints the rail in a heat-treated CP1 aerospace alloy with what they describe as AI-optimized geometry. In practice that means the lattice and rib structure inside the rail is computer-generated for stiffness-to-weight rather than designed by hand. The grip texture is printed into the alloy itself, so there are no rubber inserts or panels to fall off. A cable management channel runs along the side for laser and IR illuminator wires, similar to what you see on premium duty rifles from Daniel Defense and BCM, but built into the print rather than CNC-routed afterward. Color options are black, OD green, and FDE in either Type III hard anodize or Cerakote.

The DualCool CP1 ARCA Rail Edition swaps the bottom M-LOK row for a full-length integrated ARCA dovetail. The interface is precision-scalloped for native Really Right Stuff and Area 419 compatibility, which means it accepts those manufacturers' ARCA clamps, levers, and tripod heads directly without an adapter plate. Centerline M-LOK slots are retained at the forward end for a bipod stud or barricade stop. The grip texture is dropped in favor of a smoother profile, which is what most precision shooters prefer for index repeatability when the rifle is loaded onto a tripod or bag.

That positions the ARCA Edition squarely at PRS, NRL, and tactical-precision shooters who treat their AR-15 or AR-10 as a gas-gun precision rig. Anyone running an AR-pattern PRS or DMR build has been waiting for an integrated ARCA solution that does not require bolting an aftermarket section to the bottom M-LOK row. The ARCA Edition ships in 15-inch only, which is the right call: ARCA on a 7-inch SBR rail makes no functional sense. AR-10 build compatibility is explicitly called out, so the same rail covers both 5.56 and large-frame .308 precision builds.

Standard DualCool CP1 pre-orders run $561.75 to $674.25 depending on length and finish, with the early-bird window ending May 31, 2026. The ARCA Rail Edition is $674.25 early-bird against a regular MSRP of $899.00. Mitchell Defense lists shipping as anticipated July 2026 for both variants, with a stated first production run that fulfills in the order received. Pre-orders are cancellable for a full refund at any point before the unit ships, which is the right policy for a small first-run product that has not been in customers' hands yet.

At $561.75 to $674.25, the DualCool sits above conventional M-LOK rails from Magpul, Geissele, BCM, and Aero Precision, which span roughly $150 to $400. The premium is the dual-layer construction and the 3D-printed aerospace alloy. For most casual range shooters, a Geissele Mk16 or BCM MCMR will keep up just fine. The DualCool earns its price tag in two specific contexts: high-volume duty and training rifles that see sustained fire, and suppressed builds where heat trapped under the rail is the limiting factor. If your rifle does not live in either of those buckets, a conventional rail is the smarter buy. Plan a build around the new rail with our AR-15 builder or browse current handguard options across the catalog from the full catalog.

Suppressed carbines. A suppressor is the single biggest reason to put a dual-layer rail on an AR. Trapped gas and backpressure dump heat under the handguard at a rate single-wall aluminum cannot dissipate. The 11.5 and 13.5 inch DualCool are the natural match for an 11.5 to 14.5 inch suppressor host. If you are configuring a suppressor host for the first time, our suppressor compatibility primer covers thread pitches and gas system pairing.

High-round-count duty and training rifles. Carbine courses run 1,000 to 2,000 rounds per day, and the support hand position drifts as the rail heats up. The DualCool keeps the outer shell touch-cool longer, which is a real ergonomic win on a class day. The 13.5-inch length on a 16-inch barrel is the obvious build path here.

AR-pattern PRS and DMR rigs. The 15-inch ARCA Edition is a single-piece solution to a problem that precision shooters have been solving with M-LOK ARCA chunks bolted to the bottom row for years. Native RRS and Area 419 compatibility means your existing tripod head and bipod clamps drop straight on. First-time ARGS or PRS builders should also read our PRS rifle build guide and the first AR-15 build guide before locking in a handguard at this price point.

Where it does not earn the price. A weekend-shooter 16-inch carbine that fires 200 rounds a month unsuppressed does not need a $600 dual-layer rail. The thermal advantage compounds with round count and gas volume. If your rifle is a range toy and not a duty or precision platform, a $200 to $300 conventional M-LOK rail spends the rest of the budget better on optics or training.

The DualCool CP1 is the first AR-15 handguard to commit fully to an air-gap thermal architecture rather than treating heat as somebody else's problem. The 3D-printed aerospace alloy plus dual-layer construction is a meaningful engineering step, and the ARCA Rail Edition closes a gap that precision AR shooters have been working around for years. At $561 to $674 early-bird, it is priced as a premium duty and precision part, not a first-build upgrade.

The buy case is clean: suppressor hosts, training rifles, and precision gas-gun builds where handguard temperature genuinely limits performance. For everyone else, save the money and put it into glass, training, or a better red dot. Mitchell Defense is a small shop running a first production batch in July 2026, and the cancel-anytime pre-order policy is the right way to handle that. If the dual-layer claim holds up under sustained fire, this is the rail to beat for high-volume AR builds going forward.
