Maztech

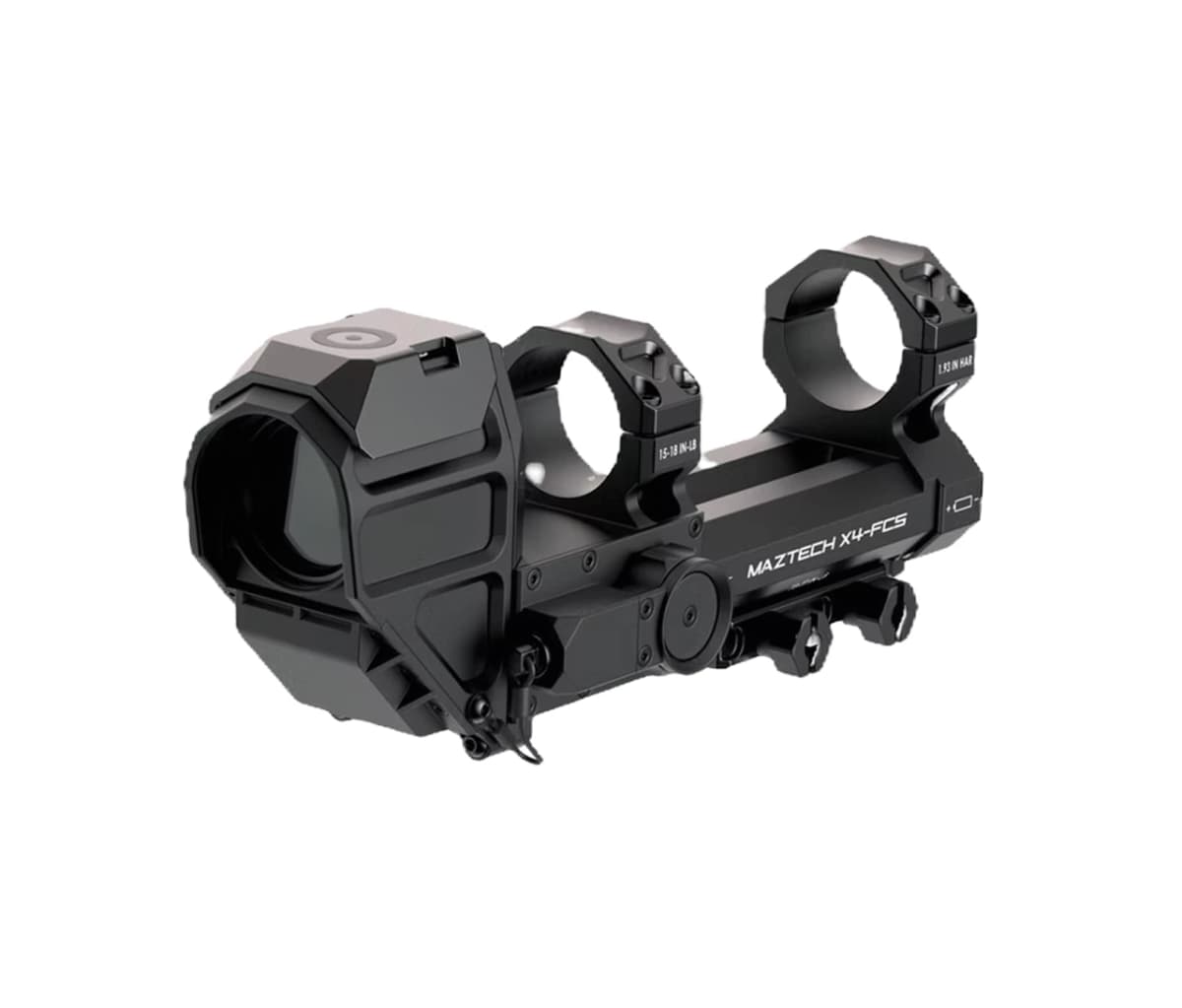

X4-FCS 34mm Fire Control System
Integrated 34mm LPVO mount with an Applied Ballistics solver and a projected ballistic-compensated aimpoint.
Quick Specs
- Price
- $3,495
- Weight
- 1 lb 6.6 oz
- Brand
- Maztech
- Category
- optic-mount
Features
- •34mm LPVO mount at 1.93-inch height above rail
- •Applied Ballistics solver with onboard environmental and motion sensors
- •User-configurable green symbology projected through the LPVO
- •22.6 oz with two rechargeable 18650 batteries
Capability Boosts
Recommended For
+18 more
Compatibility Tags
Overview
The Maztech X4-FCS 34mm replaces a normal LPVO mount with a complete fire-control unit. It holds a compatible 34mm LPVO at a 1.93-inch centerline, reads temperature, humidity, pressure, pitch, roll, and heading, then uses the Applied Ballistics solver to project a corrected green aimpoint through the scope. The display scales with magnification, so it behaves like a first-focal-plane reference even when the installed LPVO uses a second-focal-plane reticle.
The mount is machined from 7075-T6 aluminum and runs on two supplied USB-C rechargeable 18650 batteries. The LPVO remains usable after battery depletion. Maztech publishes a fit guide and a separate incompatible-optic list, which matter because tube diameter alone does not guarantee that every turret housing and reticle layout will clear the projector geometry.
Key Features
- Integrated 34mm LPVO mount with 1.93-inch height above rail
- Applied Ballistics solver with temperature, humidity, pressure, pitch, roll, and heading inputs
- Projected green ballistic aimpoint with up to 115 MOA or 33 MIL of correction
- 0.5 MOA adjustment resolution
- Bluetooth Low Energy, NFC, and UWB radios can each be disabled
- 7075-T6 billet aluminum body
- Two supplied USB-C rechargeable 18650 batteries
Pros
- +Combines the LPVO mount, sensors, solver, and corrected aimpoint in one unit
- +Keeps the installed LPVO usable when the electronics lose power
- +Accepts independent X4-LRF range data through the optional cable
- +Supports both first- and second-focal-plane LPVOs
Cons
- −Adds 22.6 ounces before the LPVO is installed
- −Requires checking the Maztech fit guide for exact scope-body clearance
- −The X4-LRF and interconnect cable are separate purchases
- −Fixed 1.93-inch optic height is taller than conventional scope mounts
Detailed Specifications
- Mount Type
- Integrated 34mm LPVO fire-control mount
- railInterface
- STANAG 4694, compatible with MIL-STD-1913 Picatinny
- opticHeight
- 1.93 in above rail
- reticleColor
- Green
- correctionRange
- 115 MOA / 33 MIL maximum ballistic drop
- adjustment
- 0.5 MOA
- solver
- Applied Ballistics
- sensors
- Temperature, humidity, pressure, pitch, roll, and heading
- Battery Type
- Two rechargeable USB-C 18650 cells; four CR123 cells optional
- Battery Life
- One year at 10 operating hours per week
- connectivity
- Bluetooth Low Energy, NFC, and UWB
- environmental
- -40 F to 140 F; 3 ft water submersion for 30 minutes
- dimensions
- 8.2 in L x 2.3 in W x 3.0 in H
- weight
- 22.6 oz with batteries
- Material
- 7075-T6 aluminum
- madeIn
- USA
- sku
- MZT001-34-AB-BLK/GRN
