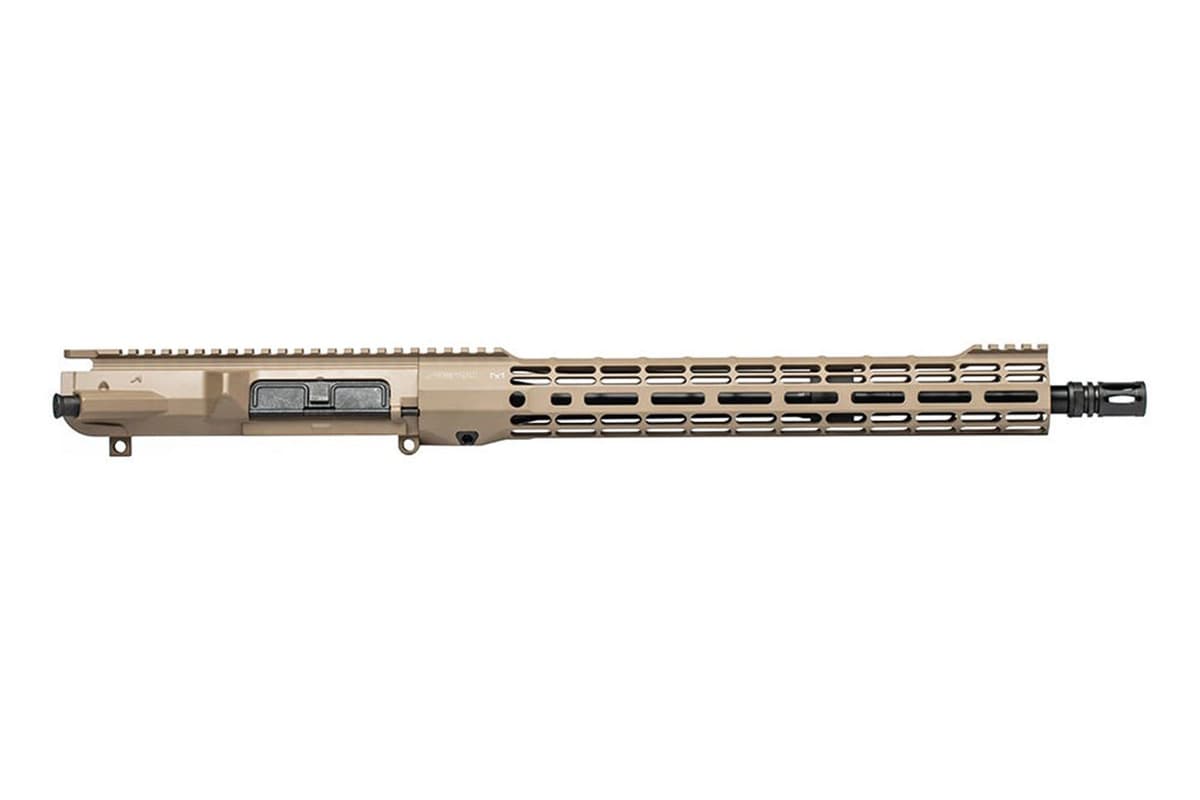

Aero Precision M5 .308 16" Complete Upper (ATLAS S-ONE)

The fastest path to a mag-fed .308 hog rifle: drop this 16-inch complete upper onto any DPMS-pattern M5 lower and add a BCG.

No image available

Quick Specs

Price
$564
Weight
5 lb
Brand
Aero Precision
Category
upper

Features

  • 16" .308 Win CMV barrel
  • Mid-length gas
  • 5/8x24 muzzle threads
  • ATLAS S-ONE 15" M-LOK handguard
  • No BCG or charging handle included

Capability Boosts

Long Range+1
Reliability+1

Recommended For

Outdoor Defense+2
hunting+2
hunting sidearm+2
small game+2
Home Defense
Duty/Patrol

+16 more

Compatibility Tags

family: ar-patternfamily: ar-10caliber: 308caliber: 762x51thread: 5/8x24interface: picatinny-tophandguard: mlokbarrel: long

Overview

The Aero Precision M5 .308 16-inch complete upper is the shortcut to a mag-fed AR-10 hog rifle without sourcing a barrel, handguard, and gas system separately. It ships assembled with a 16-inch .308 Win CMV barrel, a mid-length gas system with a low-profile gas block and gas tube installed, and Aero's ATLAS S-ONE 15-inch M-LOK handguard on a forged 7075 upper receiver. Mid-length gas on a 16-inch .308 softens the impulse and eases the port pressure a suppressor adds, which matters on a rifle you may shoot suppressed at night.

The one thing this upper does not include is a bolt carrier group or charging handle, so budget an M5/.308 BCG and a charging handle before you can run it. Once assembled onto a DPMS-pattern (Gen 1 / SR-25 style) M5 lower, the 5/8x24 threaded muzzle takes a standard .30-caliber brake or a direct-thread or QD suppressor, and the full-length top rail carries a thermal or an LPVO for feeder work.

For a hunter who already owns an M5-pattern .308 lower or wants to build one, this upper delivers a factory-assembled, headspaced barrel-and-handguard package for well under the cost of a complete factory AR-10, with Aero's finish quality and a proven .308 gas system. It is the value entry point into the mag-fed .308 hog platform.

Key Features

  • 16-inch .308 Win CMV barrel, mid-length gas system installed
  • 5/8x24 threaded muzzle for brakes and .30-caliber suppressors
  • ATLAS S-ONE 15-inch M-LOK free-float handguard with QD sling sockets
  • Forged 7075-T6 upper receiver with M4 feed ramps and forward assist
  • DPMS High Profile (.210) tang, compatible with AR-308 upper receivers
  • Ships assembled but without a BCG or charging handle

Pros

  • +Turns a bare M5 lower into a mag-fed .308 hog rifle without piecing a barrel and handguard together
  • +Mid-length gas eases recoil and suppressor port pressure on a 16-inch .308
  • +5/8x24 muzzle threads accept standard .30-caliber brakes and suppressors
  • +Aero finish and headspacing at a price well under a complete factory AR-10

Cons

  • No BCG or charging handle included; both are required before it runs
  • DPMS/SR-25 pattern uppers must match a compatible M5-pattern lower
  • Heavier than a comparable 5.56 upper, adding to overall rifle weight

Detailed Specifications

caliber
.308 Winchester
barrelLength
16 inches
barrel
CMV, mid-length gas
gasSystem
Mid-length with low-profile gas block and gas tube
handguard
ATLAS S-ONE 15-inch M-LOK free-float
upperReceiver
Forged 7075-T6, DPMS High Profile (.210) tang
muzzleThread
5/8x24
included
Assembled upper, barrel, and handguard; no BCG or charging handle
sku
APAR538105M22
