338 ARC Build Guide 2026: Uppers, Barrels, Bolt & Mags

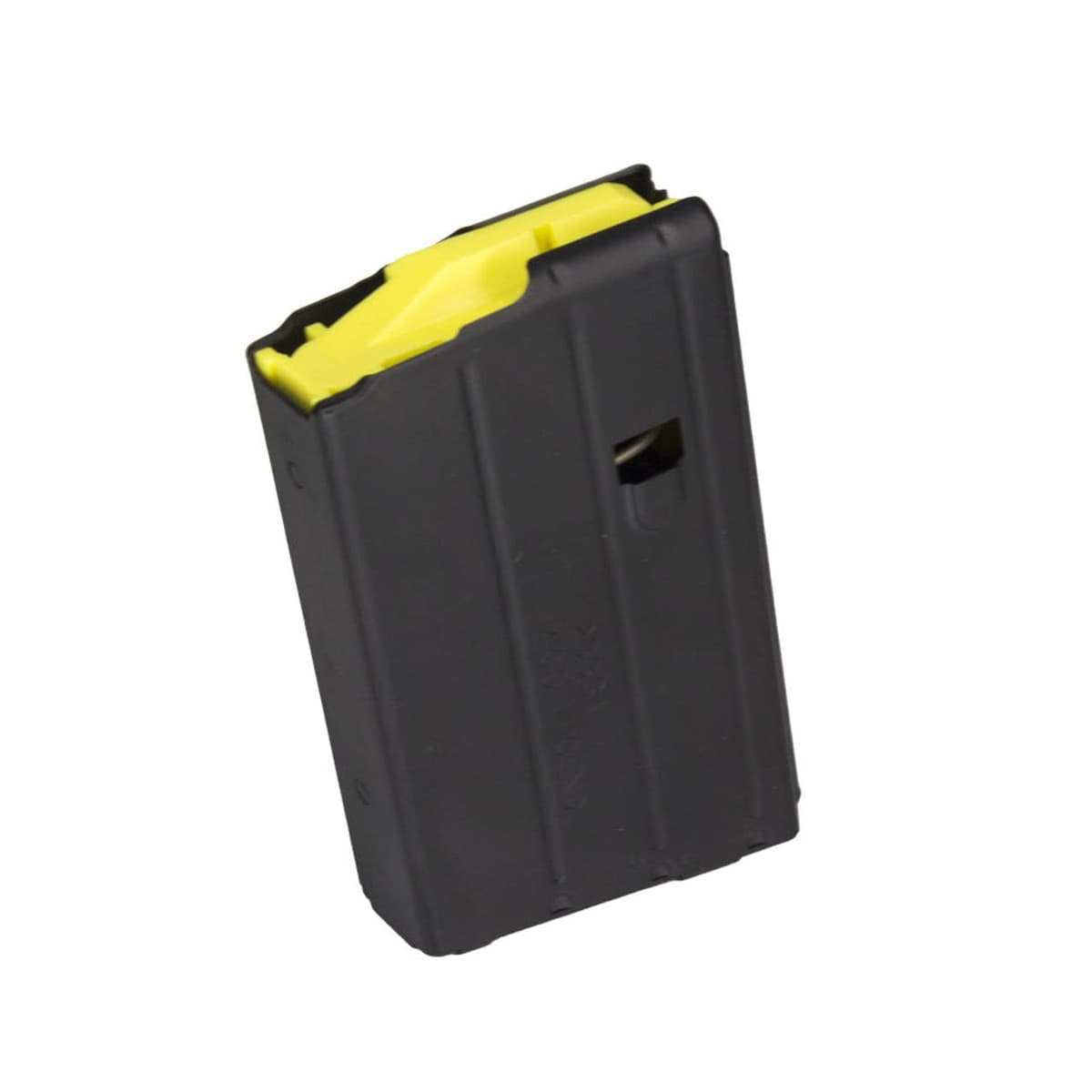

Buy a complete upper if this is your first .338 ARC. The PSA 8.5-inch Lightweight Hex upper documents the whole standard- lower configuration: an 8.5-inch .338 ARC chamber, a nitrided 6.5 Grendel-family BCG, a charging handle, and a 10-round .400 Legend magazine. That removes the guesswork between chamber, bolt, and feed system. It also keeps headspace inside a factory- assembled upper instead of making it a new builder's first task.

Build your own upper if you want a specific barrel length or twist. Start with a stripped receiver, then select a manufacturer-documented .338 ARC barrel and the bolt or BCG that maker specifies. Faxon's .338 ARC barrel page offers its Type 2 .136 bolt as the matching add-on. The magazine remains a separate check against the upper and lower configuration. If you have never assembled an upper, walk through our first AR build guide before you torque a barrel nut, and use the rifle builder to spec the lower, brace or stock, and optics around your upper.

A standard 5.56 bolt does not fit .338 ARC's larger case head. Beyond that boundary, follow the barrel or complete-upper maker. PSA identifies a nitrided 6.5 Grendel-family BCG in its 8.5-inch .338 ARC upper. Faxon presents its Type 2 .136 bolt as an add-on on the official .338 ARC barrel page. Those are two source-backed host choices, not permission to treat every part carrying a Grendel label as interchangeable.

Check the bolt depth, extractor, carrier, and headspace as one assembly. Do not reuse an existing Grendel bolt only because the case-head family sounds right. A newly assembled upper needs its headspace verified with the exact barrel and bolt before firing. A complete upper bundles that decision; a stripped build puts the verification on the builder or gunsmith.

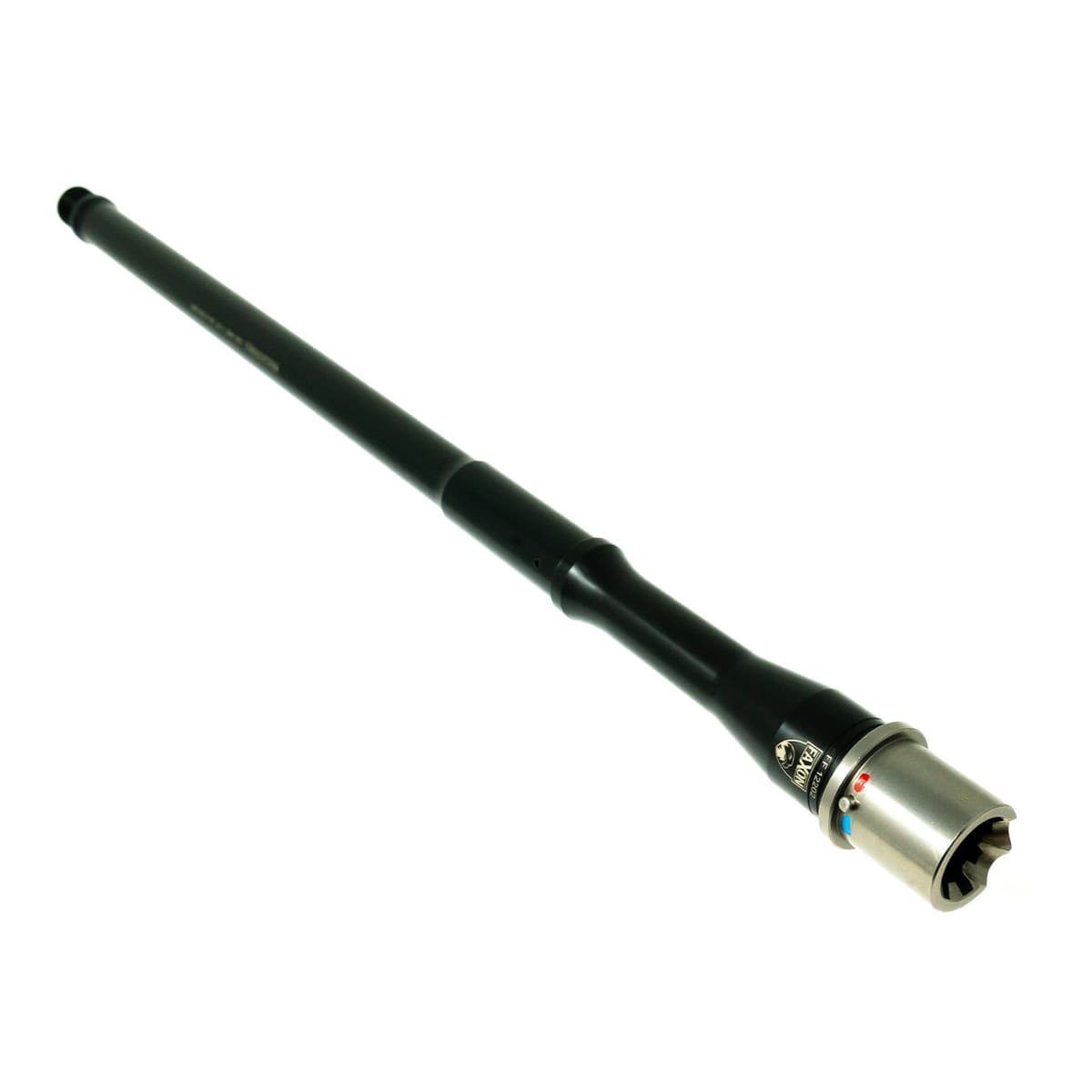

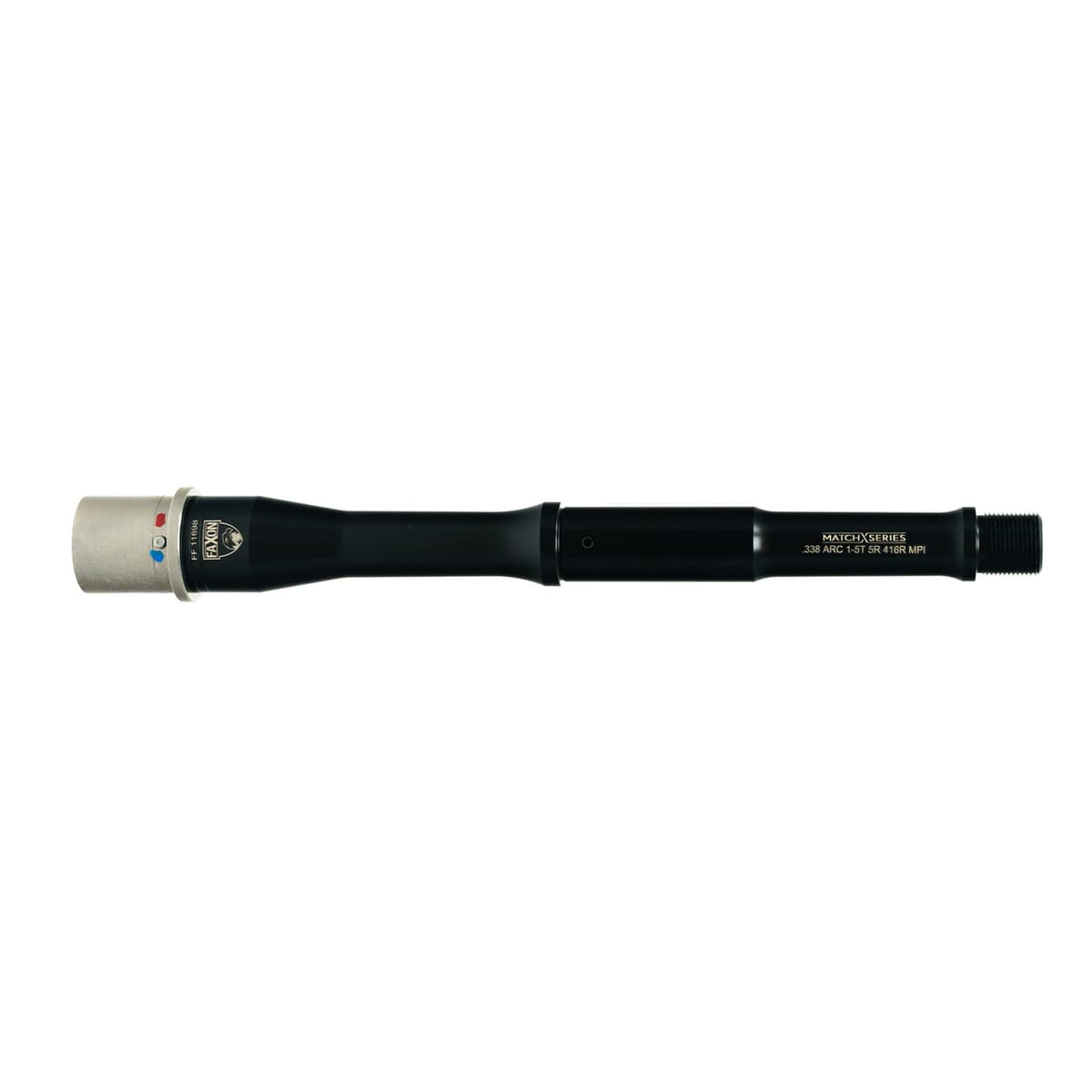

Start at 1:8 unless the barrel maker gives you a reason to move. The current SAAMI drawing lists an optional 1:8 right-hand twist. Faxon uses 1:8 on its 16-inch .338 ARC barrel and offers a faster 1:5 twist on its 9-inch barrel. That makes 1:8 the standards-based all-around choice and 1:5 a documented Faxon short-barrel option, not a rule for every .338 ARC build.

Choose length from the host, load, and legal configuration. Hornady publishes its factory velocities from a 16-inch barrel; shorter-barrel performance must come from the barrel or host maker, or from your own chronograph. PSA documents an 8.5-inch 1:8 complete upper. Faxon documents 9-inch 1:5 and 16-inch 1:8 barrels. Do not transfer one maker's gas or twist guidance to another product. Our best 300 Blackout barrels guide walks the same length-versus-suppressor math in more depth.

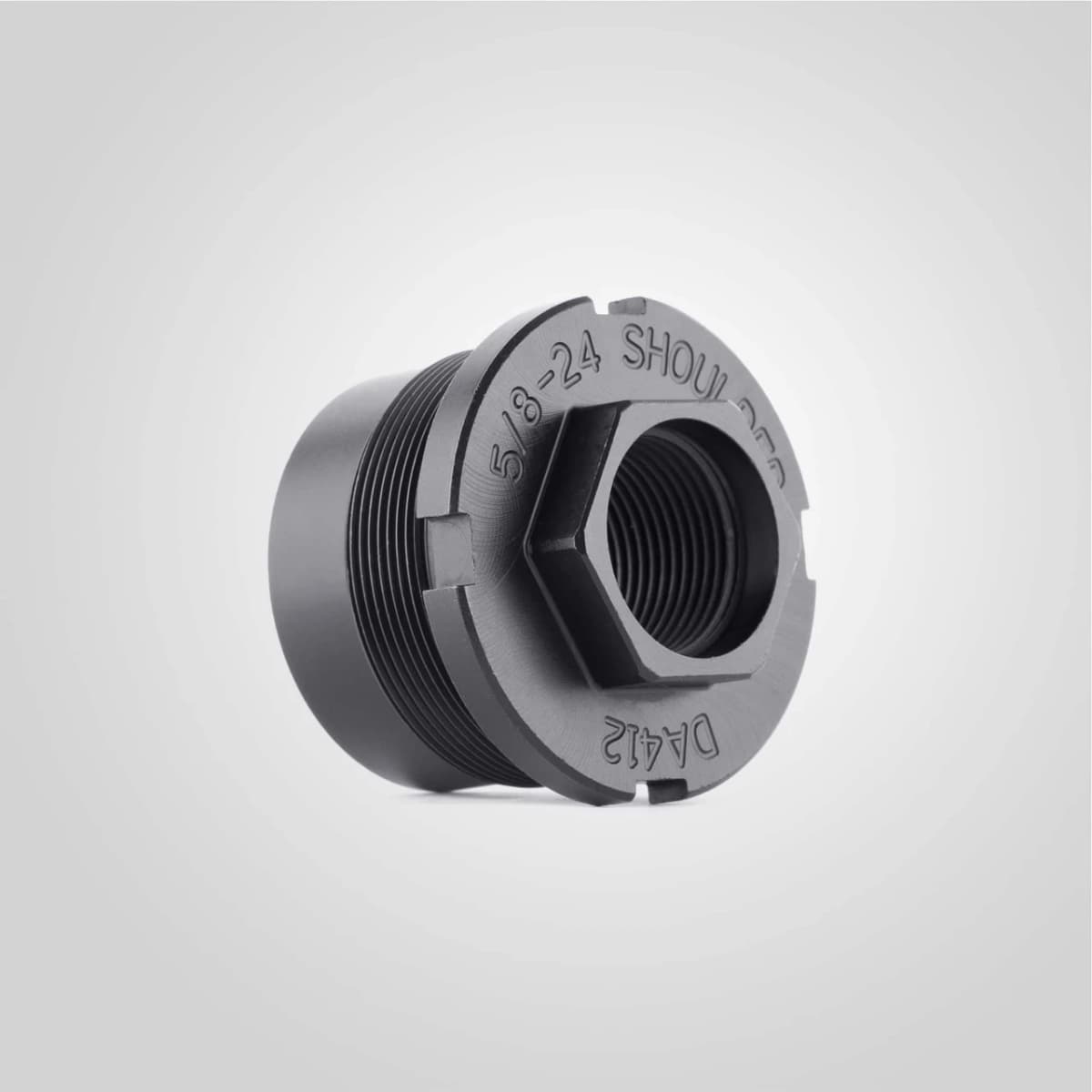

A .338-inch bullet needs more bore clearance than a .30-caliber suppressor provides. Use only a model whose maker permits the cartridge, barrel length, mount, and firing schedule. Dead Air's current fitment guide explicitly lists .338 ARC for the Mojave 9 in semi-automatic use within its published energy limit. Its included pistol booster is not the fixed mount an AR host needs. For a 5/8x24 host, Dead Air lists its DA412 P-Series fixed mount for the Mojave 9.

Suppressor possession and transfer rules still apply. Check the current suppressor legality tool and the manufacturer's manual before you select a model. For the broader mount and host checks, our suppressor compatibility guide covers bore, thread, mount, pressure, and barrel restrictions.

Write down the exact upper or barrel SKU, the exact bolt or BCG, the lower's magwell pattern, and the magazine SKU before you order. Confirm each connection in the component maker's current documentation. A cartridge-family relationship is useful for research, but it is not a substitute for an explicit fitment statement.

Then verify headspace, hand-cycle the intended ammunition, and function-test every magazine before relying on the host. For the cartridge decision that comes before this parts list, see the .338 ARC ballistics, range, ammo, and uses explainer.
