Shield Arms S20: 20-Round Glock 43X and 48 Magazine

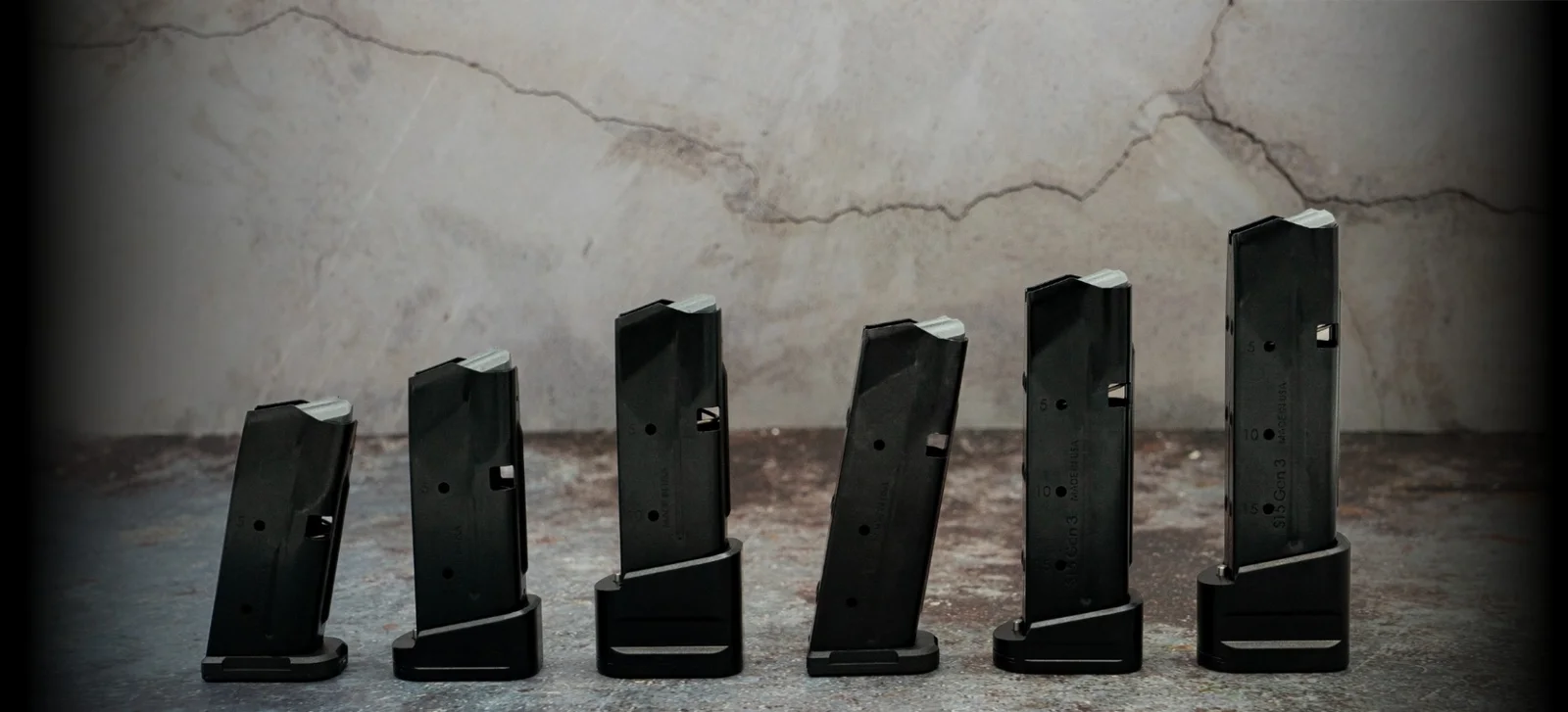

The S20 is a patented 20-round steel magazine for the Glock 43X and Glock 48, and it is the highest-capacity single-piece magazine Shield Arms builds for the slimline frame. It uses the same staggered feed geometry that made the 15-round S15 the default aftermarket answer to the platform's 10-round factory capacity, stretched to hold five more rounds.

The important structural detail is that the extra capacity is not an add-on. The S20 is one continuous formed steel tube rather than a 15-round magazine with a machined aluminum extension attached to the bottom. Finish is the QPQ nitrocarburizing treatment Shield Arms uses across the S-Series, and the magazine is covered by the company's lifetime warranty and its Spring for Life spring replacement.

The trade is length. Twenty rounds of 9mm stacked in a slimline-width body has to go somewhere, and it goes below the grip frame. Shield Arms is explicit that this is not a flush-fit carry magazine: it is built to be the spare in a pouch, a bag, or a nightstand drawer while a flush 15-round magazine rides in the pistol.

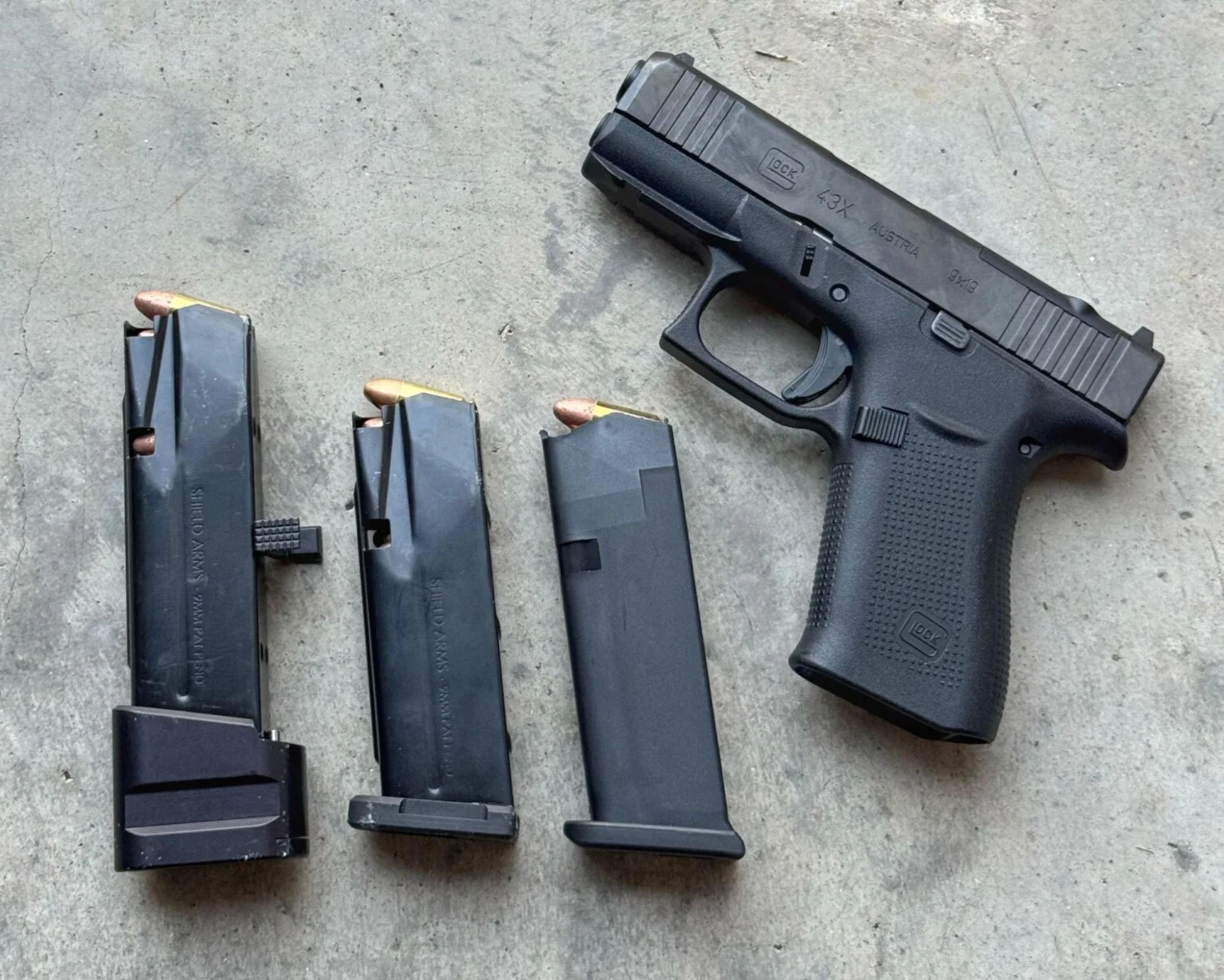

There were already two ways to put 20 rounds in a 43X magazine, and the S20 is the cheaper and simpler of them. The older path is an S15 Gen 3 with the +5 magazine extension installed, which Shield Arms sells pre-assembled at a higher price than the standalone S20. The S20 lands at $44.99 and needs no assembly step at all.

The two are not the same product with different price tags. The extension path is modular: pull the +5 off an S15 and the same magazine body goes back to running flush in the pistol, which matters if you rotate one set of magazines between carry and range use. The S20 cannot do that, because its capacity is the tube. What it gives up in flexibility it gains in having no body-to-extension joint and no fasteners to check.

For most 43X owners the split is straightforward. If you already own S15 magazines and want occasional extra capacity, an extension is the cheaper marginal upgrade because you already own the body. If you are buying a dedicated spare from scratch, the S20 costs less than the assembled S15 +5 and arrives ready to load. Our Glock magazine extension and basepad guide covers how extension length interacts with concealment and with competition division rules.

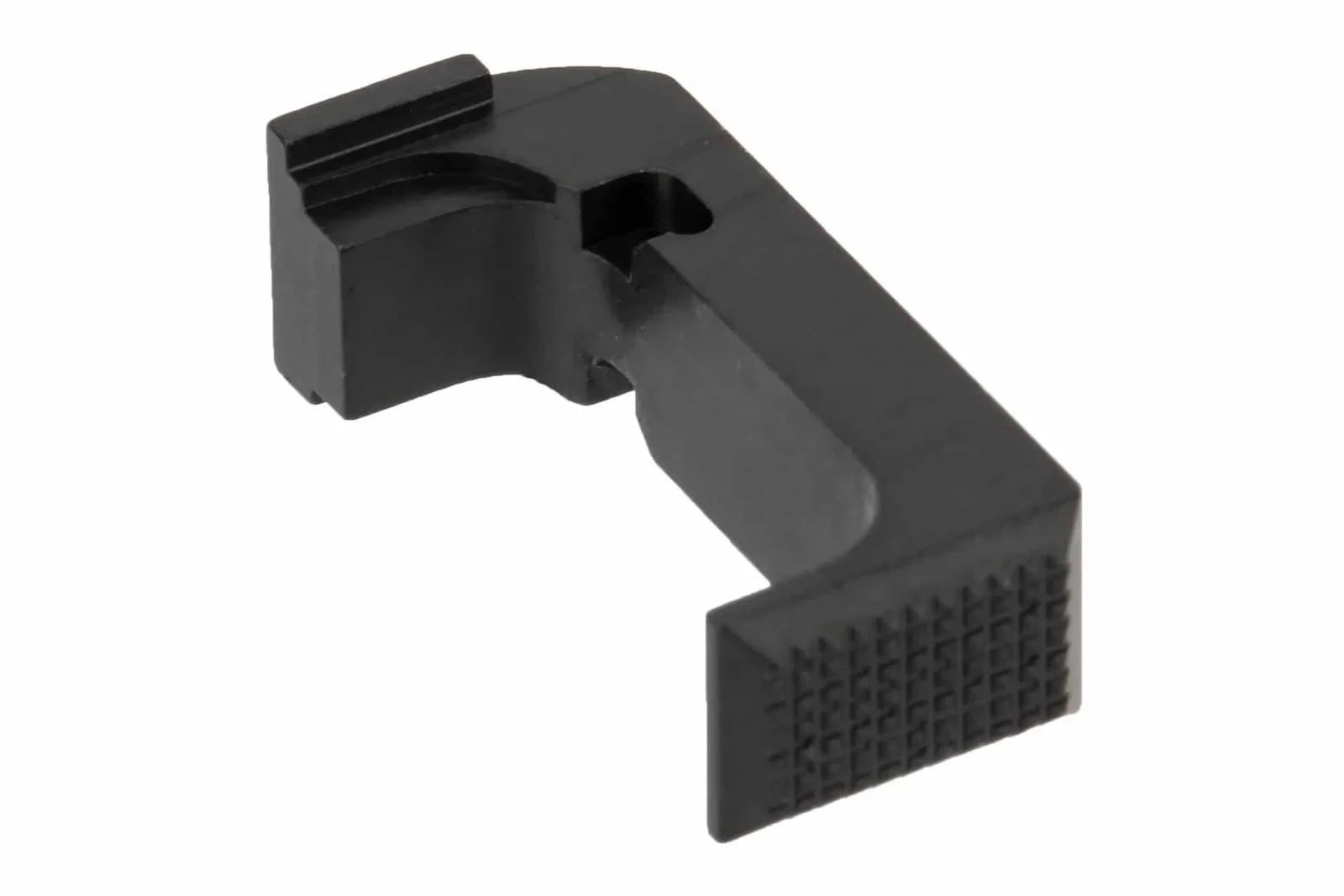

The S20 will not run correctly on a factory Glock magazine catch, and Shield Arms says so directly: the magazine requires the S-Series steel catch, which is sold separately. This is the same prerequisite the S15 has carried since launch, and it is a purchase, not an option: a 43X running steel magazines on the factory polymer catch wears the catch down until magazines stop locking and dropping cleanly.

The rule Shield Arms publishes is steel on steel or plastic on plastic. Once the steel catch is installed, the company advises against running factory Glock polymer magazines through the same pistol, because the harder catch chews the softer polymer magazine notch. That makes the decision a pistol-level one rather than a magazine-level one: a 43X set up for S-Series magazines is set up for S-Series magazines, and the factory 10-rounders in the drawer become range-only parts. Owners running a first-generation aluminum catch should confirm compatibility with Shield Arms before loading an S20 behind it.

Everything else is drop-in. There is no fitting, no gunsmithing, and no frame work, and a 43X that already feeds S15 magazines reliably will feed the S20 the same way, since the feed geometry is shared. If you are still building out the pistol around it, the 43X upgrade guide covers the sights, triggers, and carry parts worth buying before more magazines, and the Glock 48 guide covers the same ground for the longer-slide gun.

The S20 is a spare-magazine purchase, not a carry-magazine purchase, and buying it as anything else is how people end up disappointed. The magazine that lives in the pistol is still a flush 15-rounder, whether that is the S15, the Glock factory GL79269, or the PSA Dagger Micro. The S20 is what goes on the belt behind it, and Shield Arms frames the pairing as 15 in the gun plus 20 in reserve.

That framing is worth taking seriously rather than treating as marketing. A 43X is chosen because it conceals; adding two inches below the grip to the magazine in the pistol defeats the reason the gun was bought. A spare magazine, by contrast, rides in a pouch where length costs almost nothing, and it is the one place on a slimline carry setup where capacity is close to free. The same logic makes the S20 a reasonable nightstand magazine for a 43X kept as a home gun, where concealment is not a constraint at all.

The competing consideration is the reliability record of steel aftermarket magazines in this platform, which has been mixed enough that a lot of carriers keep factory magazines for defensive use and reserve Shield Arms bodies for range and competition. That decision has not changed with the S20, since it shares the S15's feed geometry: whatever your pistol does with S15 magazines is what it will do with this one. Prove it with your carry ammunition before it goes in a pouch. To see how the slimline stacks up against other carry pistols on capacity and dimensions, run them side by side in the comparison tool, or spec out a full 43X setup in the builder.
