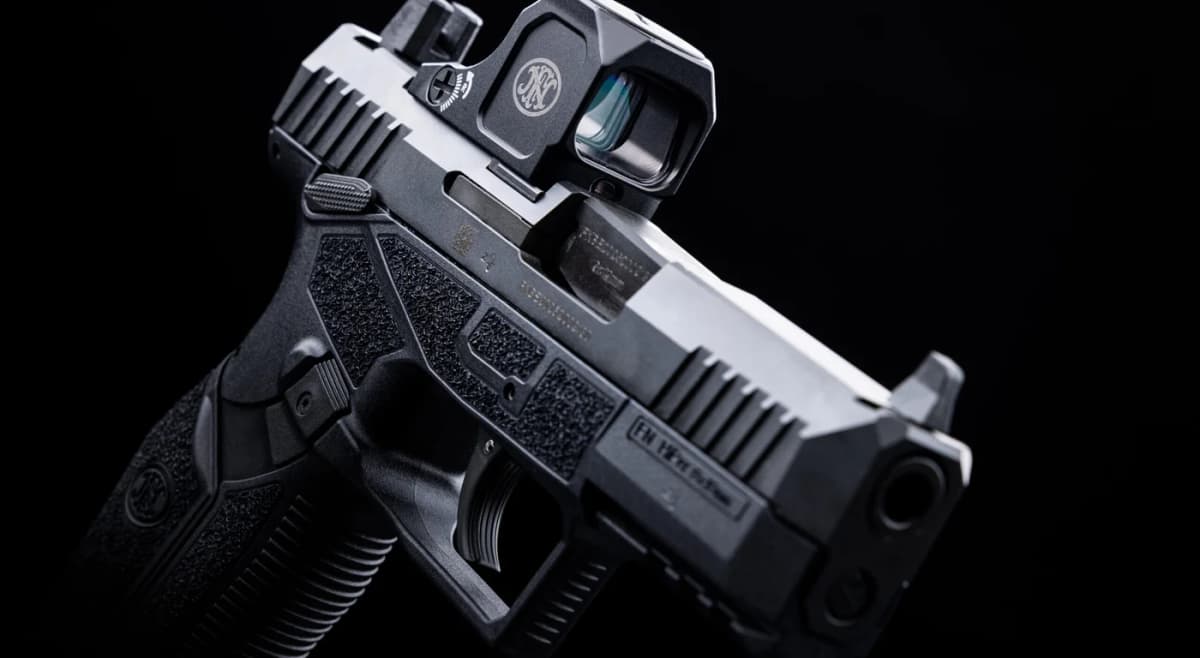

FN PUREVIEW: The First Holographic Micro Red Dot Sight
FN Herstal introduces the PUREVIEW, bringing holographic technology to the micro red dot category for the first time. Nanostructured waveguide optics, IP68 waterproofing to 35 meters, and validation across 25,000+ rounds from 5.7x28mm through 7.62x51mm.
Key Takeaways
- +First holographic micro red dot sight, using ImageGuide nanostructured waveguide technology instead of traditional LED projection
- +Parallax-free, distortion-free sight picture for faster target acquisition across different eye positions
- +IP68 rated to 35 meters with hydrophobic glass coating for rain and debris resistance
- +Validated across 25,000+ rounds on 5.7x28mm, 9x19mm, 5.56x45mm, and 7.62x51mm platforms
- +14 brightness settings with auto-adjust, designed as integrated FN system component
Holographic Technology Goes Micro

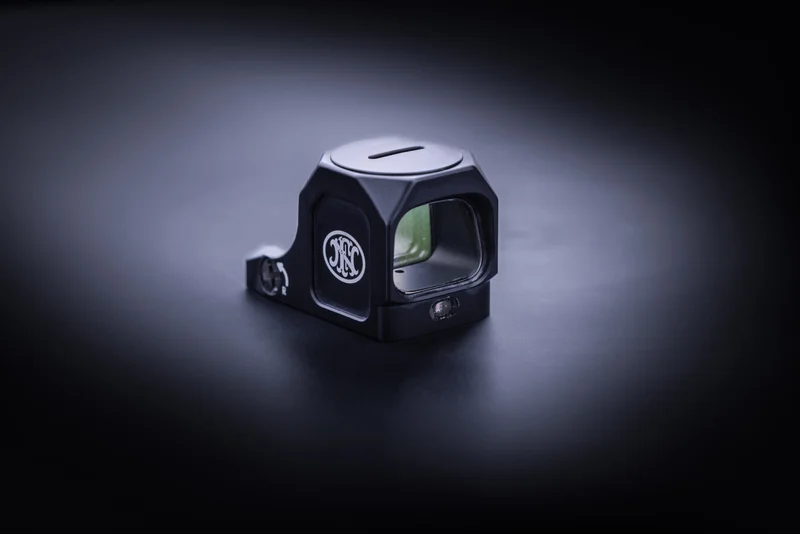

FN Herstal has announced the PUREVIEW, the world's first holographic micro red dot sight. The optic brings waveguide technology previously limited to full-size rifle sights like EOTech into the compact form factor used on pistol slides and micro-mount applications.
The core innovation is ImageGuide technology, FN's proprietary system using a nanostructured flat glass waveguide to project the reticle holographically. Unlike conventional micro red dots that use an LED to project a dot onto a lens, holographic projection creates the reticle at the focal plane of the target—eliminating parallax shift and optical distortion regardless of eye position behind the optic.
“In a world where every millisecond counts, precision is never negotiable,” FN stated in the announcement. The company positions the PUREVIEW not as a standalone accessory but as an integrated component of the FN weapon system, designed and validated alongside their pistol and carbine platforms from the ground up.
Testing and Durability
FN validated the PUREVIEW across 25,000+ rounds spanning four calibers: 5.7x28mm, 9x19mm, 5.56x45mm, and 7.62x51mm. The range from pistol calibers through full-power rifle rounds demonstrates the optic holds zero across dramatically different recoil impulses.
Impact testing included 10+ drops from 6 feet onto hard surfaces, with the optic maintaining zero after each impact. FN emphasizes that the waveguide construction provides inherent shock resistance since there are no precision-aligned LED emitters or complex lens stacks to shift under impact.
Environmental testing covered rain, dust, extreme heat, and extreme cold. The PUREVIEW carries an IP68 waterproof rating allowing submersion to 35 meters, exceeding the IP67 rating common on premium optics like the Aimpoint ACRO. A hydrophobic glass coating sheds water and debris from the viewing window.
User Features
The PUREVIEW offers 14 brightness settings covering conditions from low-light indoor environments through direct sunlight. An auto-brightness sensor adjusts intensity based on ambient light, allowing users to set-and-forget rather than manually cycling through settings as conditions change.
The viewing window is larger than typical micro red dots, with ultra-clear glass optimized for the holographic projection system. FN describes the compact, lightweight construction as designed for “rugged” use, though specific dimensions and weight have not been announced.
| Specification | FN PUREVIEW |
|---|---|
| Optical Technology | Holographic (ImageGuide waveguide) |
| Brightness Settings | 14 levels + auto-adjust |
| Waterproof Rating | IP68 (35 meters submersion) |
| Glass Coating | Hydrophobic |
| Round Count Testing | 25,000+ (5.7, 9mm, 5.56, 7.62) |
| Drop Testing | 10+ from 6 feet |
| Target Market | Military, Law Enforcement |
Holographic Optics
Affiliate links (?)
Platform Integration

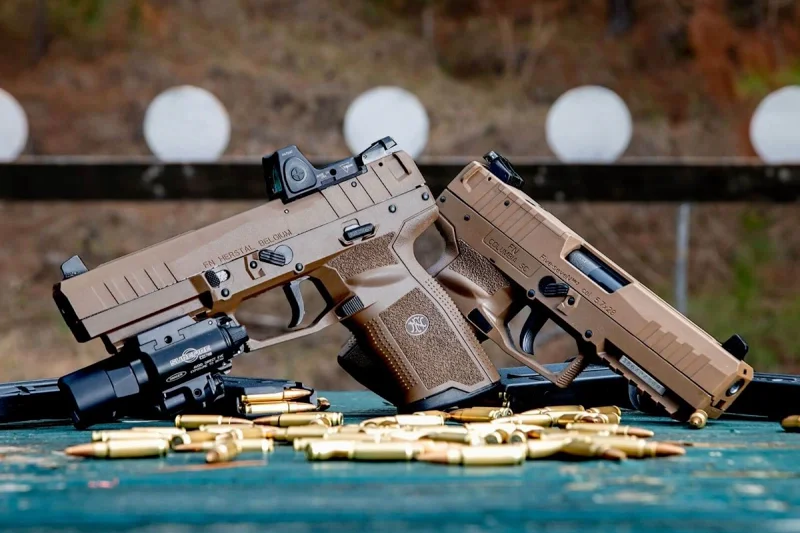

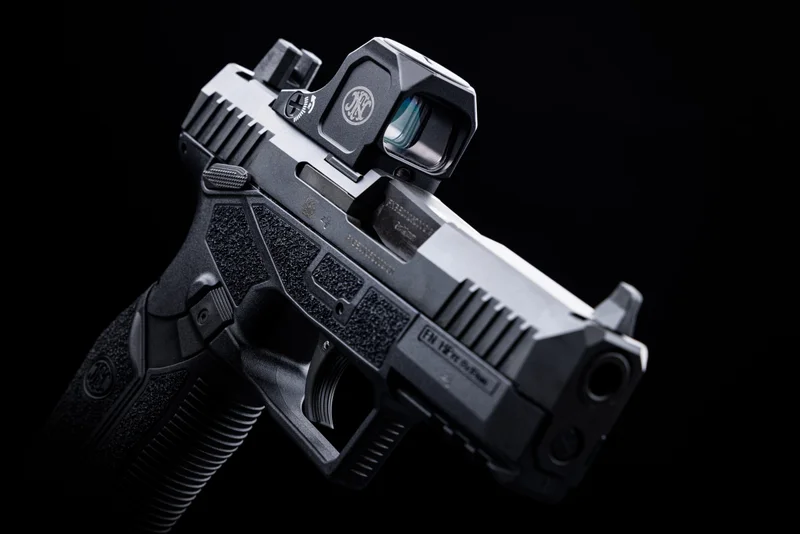

FN positions the PUREVIEW as the first optic “fully designed and developed as part of the system, not as an add-on.” The optic integrates with FN pistols including the FNX-45 Tactical, FN 509 series, and Five-seveN MRD, as well as FN carbine platforms.
This integrated approach means FN validated the mounting interface, co-witness height, holster compatibility, and zeroing procedures across their product line during development. The announcement video shows the PUREVIEW on both pistol and carbine platforms, though specific mounting footprint details have not been released.
FN has not announced whether the PUREVIEW will be available for retail purchase or if it will be offered only through military and law enforcement channels initially. Pricing and availability timelines remain unannounced.
Market Context
The micro red dot market has been dominated by LED-based optics from Trijicon (RMR), Aimpoint (ACRO), Holosun (507C/EPS series), and others. These optics project an LED-generated dot onto a lens, which can introduce parallax shift if the shooter's eye is not centered behind the optic.

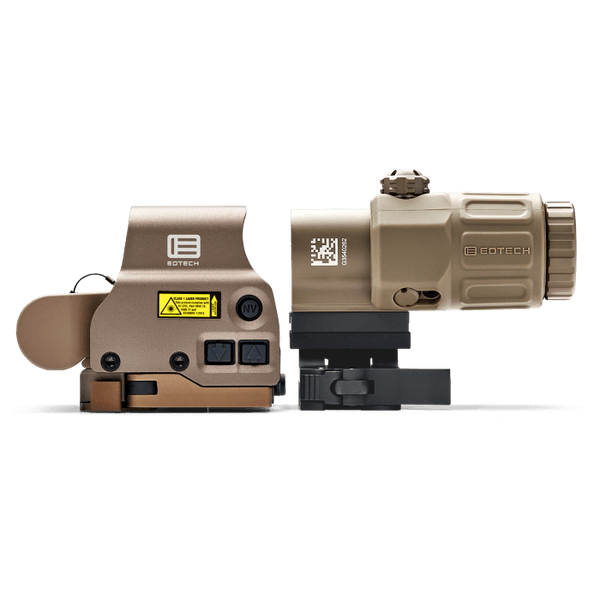

Holographic technology has been limited to larger rifle optics like the EOTech EXPS3, which uses AA or CR123 batteries and a larger housing not suitable for pistol-slide mounting. The PUREVIEW is the first to miniaturize holographic projection into the micro red dot form factor.
If the claims hold under independent testing, the PUREVIEW represents a significant advancement in pistol optic technology. The elimination of parallax would be particularly valuable in defensive and duty applications where shooters may not achieve a perfect sight picture before engaging a threat.
For more on selecting pistol optics, see our optic selection guide and red dot zeroing guide.
