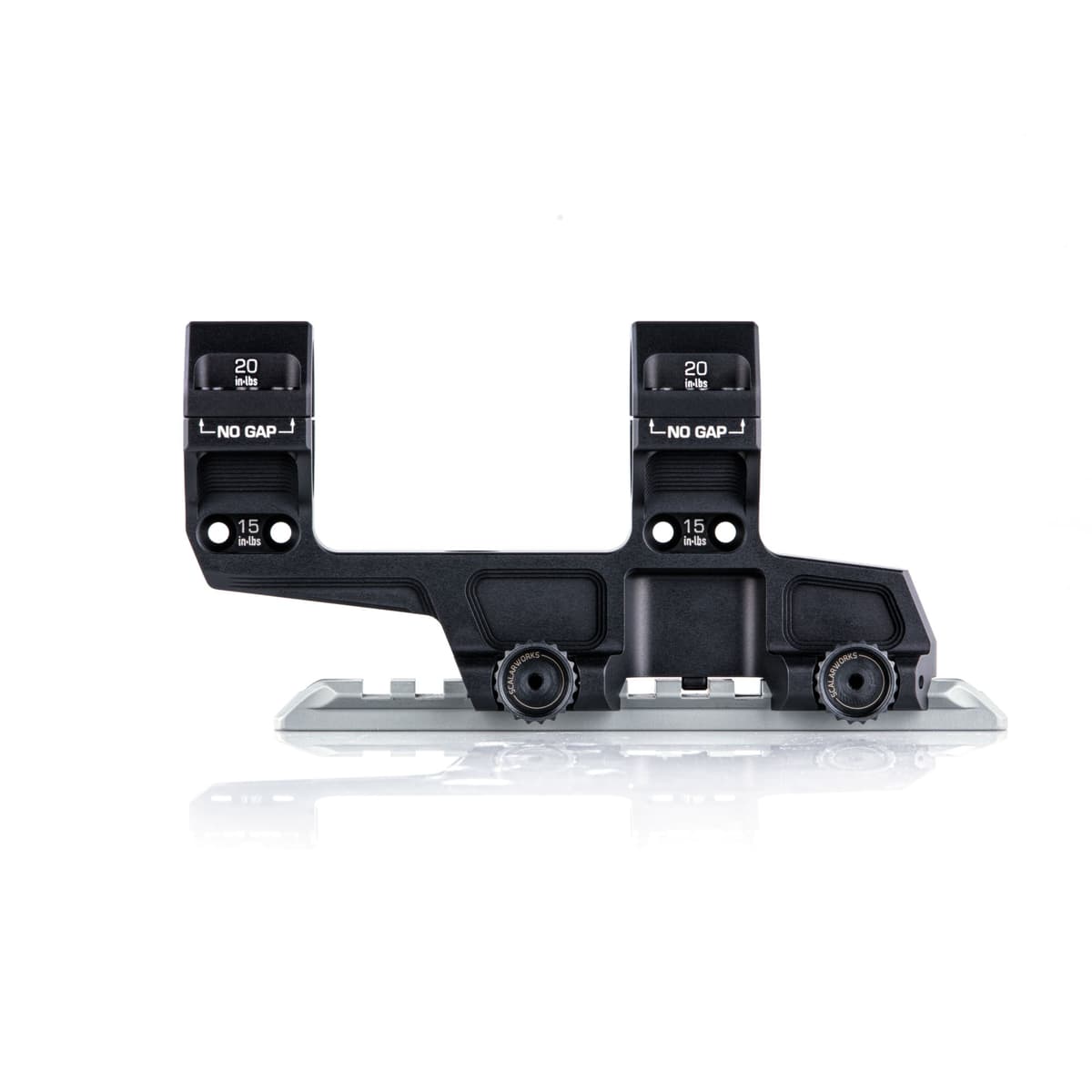

Scalarworks LEAP/08 30mm QD Mount (1.93")
Tall 1.93-inch 30mm scope mount with dual ClickDrive clamps, No-Gap rings, and the LevelDrive leveling system.
- Price
- $419
- Weight
- 6.3 oz
- Brand
- Scalarworks
- Category
- Mounts
Featured in
Features
- •1.93-inch optical centerline
- •30mm scope tube; 0 MOA
- •6.28 oz (178 g)
- •Dual ClickDrive quick detach
More rifle guides & articles
Guides
Overview
The Scalarworks LEAP/08 SW0825 raises a 30mm scope to a 1.93-inch optical centerline. That extra height gives the shooter a more upright head position and adds clearance above top-rail accessories. The complete 0 MOA mount weighs 6.28 ounces and clamps to MIL-STD-1913 Picatinny rails.
The base uses two low-profile ClickDrive wheels instead of a protruding quick-detach lever. The paired clamps distribute the load across the rail and can be released without a special tool. Above the base, the No-Gap ring halves close against a fixed stop, which removes the need to balance equal gaps on both sides of each ring.
The included LevelDrive tool squares the flat base of a compatible scope to the mount before the ring screws are tightened. Supported Scalarworks KICK mounts can also carry a secondary red dot at 12 o'clock or on an offset. The tall mount should be paired with a stock or cheek riser that lets the shooter meet the higher eyepiece without lifting the head off the comb.
Key Features
- 1.93-inch optical centerline for an upright head position
- Extra clearance above top-rail lights and laser modules
- Dual ClickDrive tool-free quick-detach Picatinny clamps
- No-Gap split rings with a visible closed-side stop
- LevelDrive scope-leveling tool included
- Compatible with supported Scalarworks KICK auxiliary-optic mounts
- 7075-T6 aluminum body with steel and stainless hardware
- Made in Pennsylvania, USA
Pros
- +1.93-inch height supports a more upright head position
- +Adds clearance above rail-mounted accessories
- +Dual ClickDrive clamps stay low and release without a lever
- +No-Gap rings simplify even ring-cap installation
- +LevelDrive and KICK support are built into the mount system
Cons
- −Fits 30mm scope tubes only
- −Offered with 0 MOA cant only
- −Weighs 0.60 ounce more than the 1.57-inch version
- −Tall height may require a cheek riser on some stocks
- −Premium price for a 30mm, 0 MOA mount
Detailed Specifications
- Mount Type
- One-piece quick-detach cantilever scope mount
- height
- 1.93 in optical centerline
- tubeDiameter
- 30mm
- cant
- 0 MOA
- weight
- 6.28 oz (178 g)
- railInterface
- MIL-STD-1913 Picatinny
- attachment
- Dual ClickDrive clamps
- ringSystem
- No-Gap split rings
- levelingSystem
- Included LevelDrive
- Material
- 7075-T6 aluminum, 4140 CrMo steel, 17-4 stainless steel
- Finish
- Type III hardcoat anodized and BlackNitride
- partNumber
- SW0825
- madeIn
- Pennsylvania, USA
