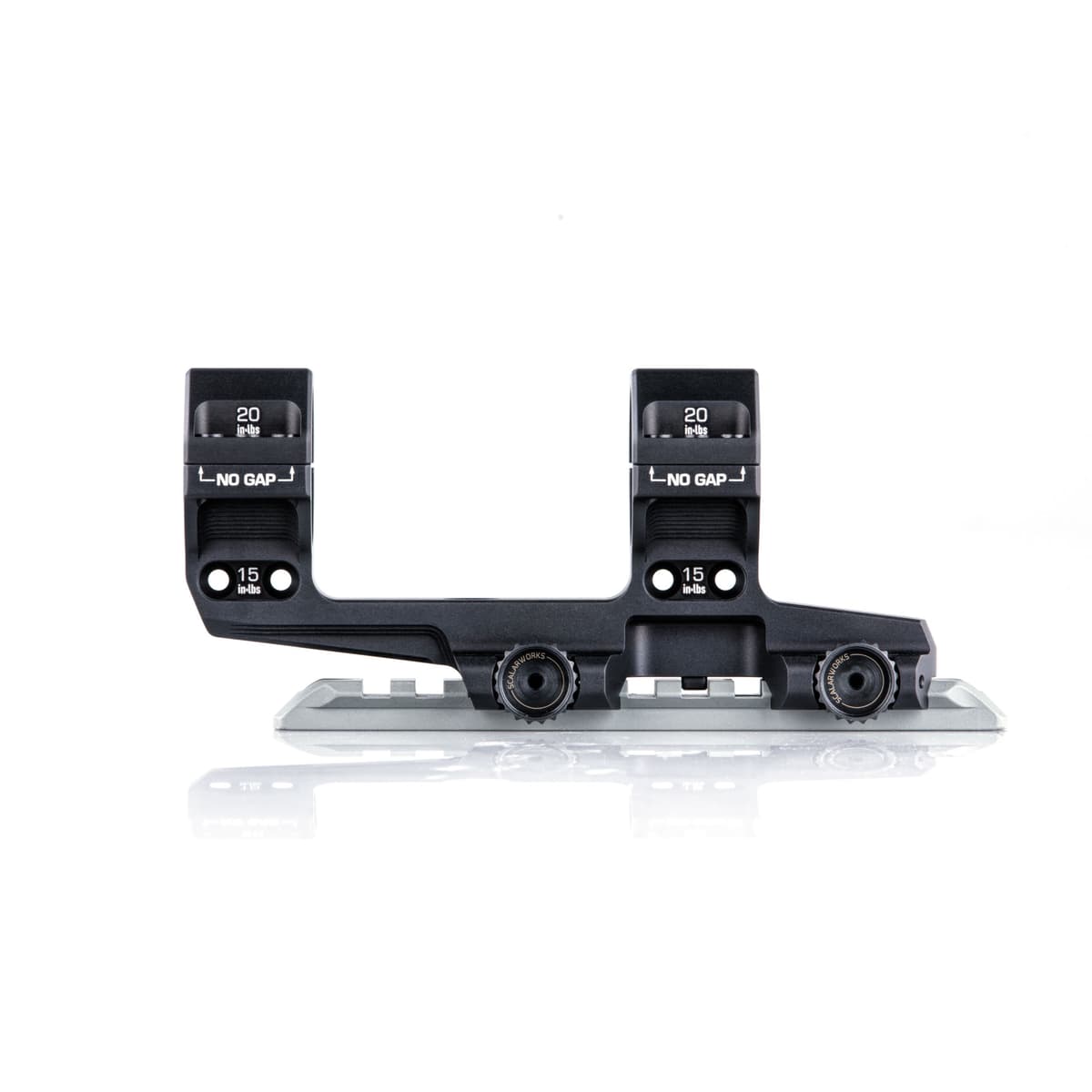

Scalarworks LEAP/08 30mm QD Mount (1.57")
Lightweight 1.57-inch 30mm scope mount with dual ClickDrive clamps, No-Gap rings, and the LevelDrive leveling system.
- Price
- $419
- Weight
- 5.7 oz
- Brand
- Scalarworks
- Category
- Mounts
Featured in
Features
- •1.57-inch optical centerline
- •30mm scope tube; 0 MOA
- •5.68 oz (161 g)
- •Dual ClickDrive quick detach
More rifle guides & articles
Guides
Overview
The Scalarworks LEAP/08 SW0815 is the 1.57-inch version of the company's next-generation 30mm quick-detach scope mount. It holds the optic at a conventional carbine height while keeping the complete mount to 5.68 ounces. Its cantilevered body fits MIL-STD-1913 Picatinny rails and carries a 30mm scope at 0 MOA.
Two ClickDrive clamps secure the base to the rail. Each low-profile wheel can be tightened or released without a separate lever, and the paired clamps spread the load across the mount. Scalarworks also changed the ring system. The No-Gap design closes the upper ring halves against the base, giving the installer a visible stop instead of two gaps to balance by eye.

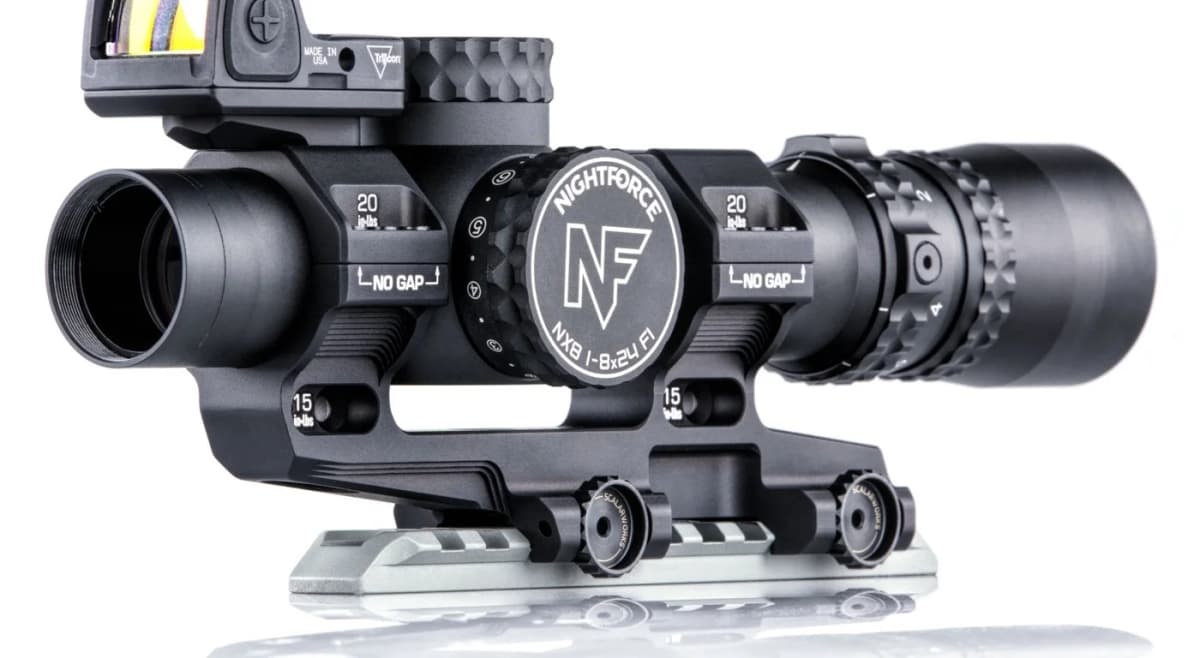

The included LevelDrive tool threads into the mount body and presses against the flat base of a compatible scope. It squares the scope to the mount before the ring screws are tightened. The mount also accepts Scalarworks KICK accessories for a supported secondary red dot above or beside the LPVO.
Key Features
- 1.57-inch optical centerline for a conventional carbine cheek weld
- Dual ClickDrive tool-free quick-detach Picatinny clamps
- No-Gap split rings with a visible closed-side stop
- LevelDrive scope-leveling tool included
- Compatible with supported Scalarworks KICK auxiliary-optic mounts
- 7075-T6 aluminum body with steel and stainless hardware
- Type III hardcoat anodized and BlackNitride finishes
- Made in Pennsylvania, USA
Pros
- +Low 5.68-ounce weight for a two-clamp QD mount
- +1.57-inch height suits a conventional stock weld
- +No-Gap rings simplify even ring-cap installation
- +LevelDrive removes a separate scope-leveling step
- +KICK compatibility keeps an auxiliary optic on the mount body
Cons
- −Fits 30mm scope tubes only
- −Offered with 0 MOA cant only
- −Premium price for a 30mm, 0 MOA mount
- −KICK red-dot mounts and optics are separate parts
Detailed Specifications
- Mount Type
- One-piece quick-detach cantilever scope mount
- height
- 1.57 in optical centerline
- tubeDiameter
- 30mm
- cant
- 0 MOA
- weight
- 5.68 oz (161 g)
- railInterface
- MIL-STD-1913 Picatinny
- attachment
- Dual ClickDrive clamps
- ringSystem
- No-Gap split rings
- levelingSystem
- Included LevelDrive
- Material
- 7075-T6 aluminum, 4140 CrMo steel, 17-4 stainless steel
- Finish
- Type III hardcoat anodized and BlackNitride
- partNumber
- SW0815
- madeIn
- Pennsylvania, USA
