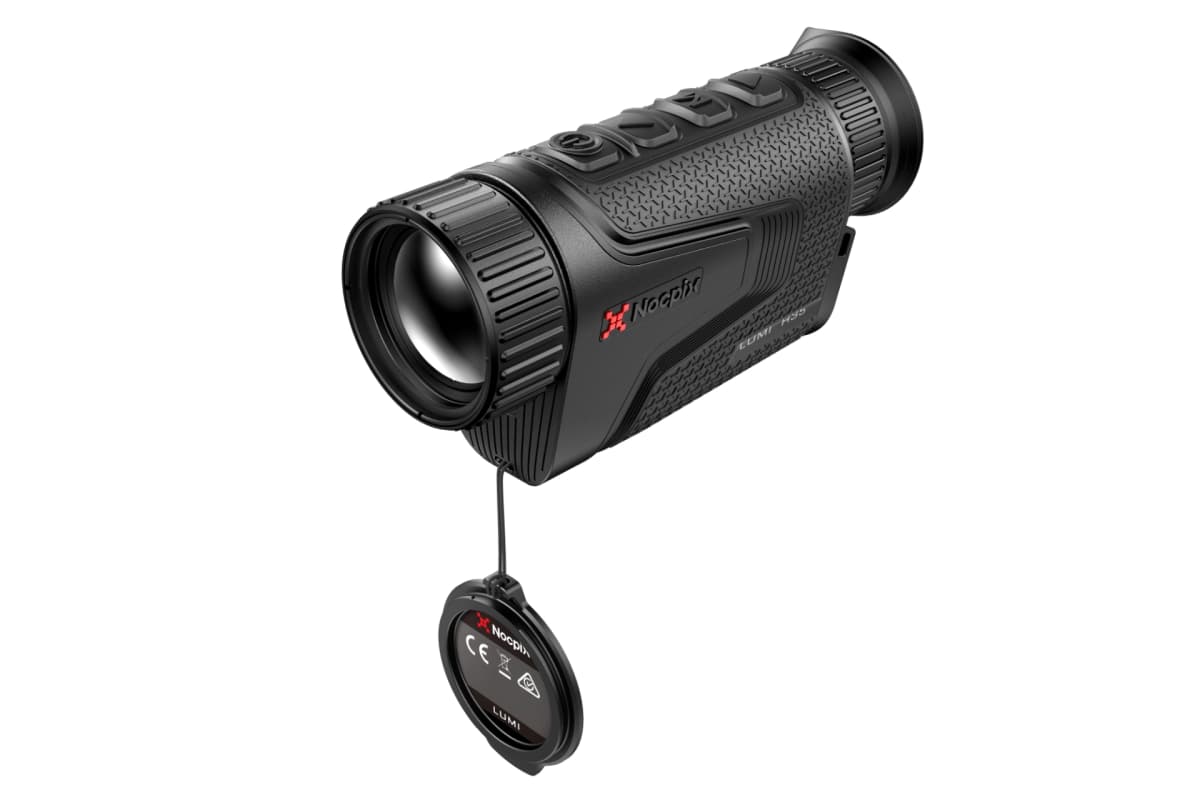

Nocpix LUMI H35
Compact 640x512 handheld thermal with a 35mm F/0.9 lens and replaceable 18650 power
- Price
- $2,199
- Weight
- 12.2 oz
- Brand
- Nocpix
- Category
- Night Vision
Featured in
Features
- •640x512, 12-micron sensor at 50 Hz
- •2.5x base magnification and 35mm F/0.9 lens
- •1024x768 AMOLED display
- •12.2 oz with battery
Where to Buy
Compare current prices and availability from retailers we work with.
Some retailer data is older. Verify price and stock before buying.
NOCPIX 2.5-20x 35mm LUMI H35 Compact Thermal Monocular 640x512 Black
Price History
90-day low $2199.00More night vision guides & articles
Guides
Overview
The Nocpix LUMI H35 packs a 35mm F/0.9 lens and 640x512 detector into a 12.2-ounce handheld. Its 2.5x base magnification gives a closer view than lower-magnification scanners, with a 12.5-degree horizontal field of view. The 1024x768 AMOLED screen displays the thermal image at 50 Hz.
Replaceable 18650 power makes it easy to carry a charged spare, and one is included. The H35 records photos, video, and audio to 32GB of storage. This standard LUMI H35 suits buyers who want compact observation and recording; the separate H35R model adds a laser rangefinder.
Key Features
- 640x512, 12-micron sensor at 50 Hz
- 2.5x base magnification and 35mm F/0.9 lens
- 1024x768 AMOLED display
- 12.2 oz with battery
- Replaceable 18650 battery with spare included
- Photo, video, and audio recording to 32GB
- IP67 sealing
Pros
- +640x512 sensor in a 12.2-ounce handheld
- +35mm F/0.9 lens
- +Replaceable 18650 power with an included spare
- +Records audio with video
Cons
- −Standard H35 lacks laser distance measurement
- −12.5-degree view is narrower than low-magnification wide-view scanners
Detailed Specifications
- thermalSensor
- 640x512
- pixelPitch
- 12 microns
- netd
- ≤18mK, manufacturer sensor rating
- refreshRate
- 50 Hz
- Magnification
- 2.5x base
- Objective Diameter
- 35mm
- aperture
- F/0.9
- Field of View
- 12.5 x 9.4 degrees
- display
- 1024x768 AMOLED
- Battery Type
- Replaceable rechargeable 18650
- storage
- 32GB
- Waterproof Rating
- IP67
- weight
- 345g / approximately 12.2 oz with battery
- Battery Life
- Maximum 4.5 hours at 22°C with R+ on and Wi-Fi off
