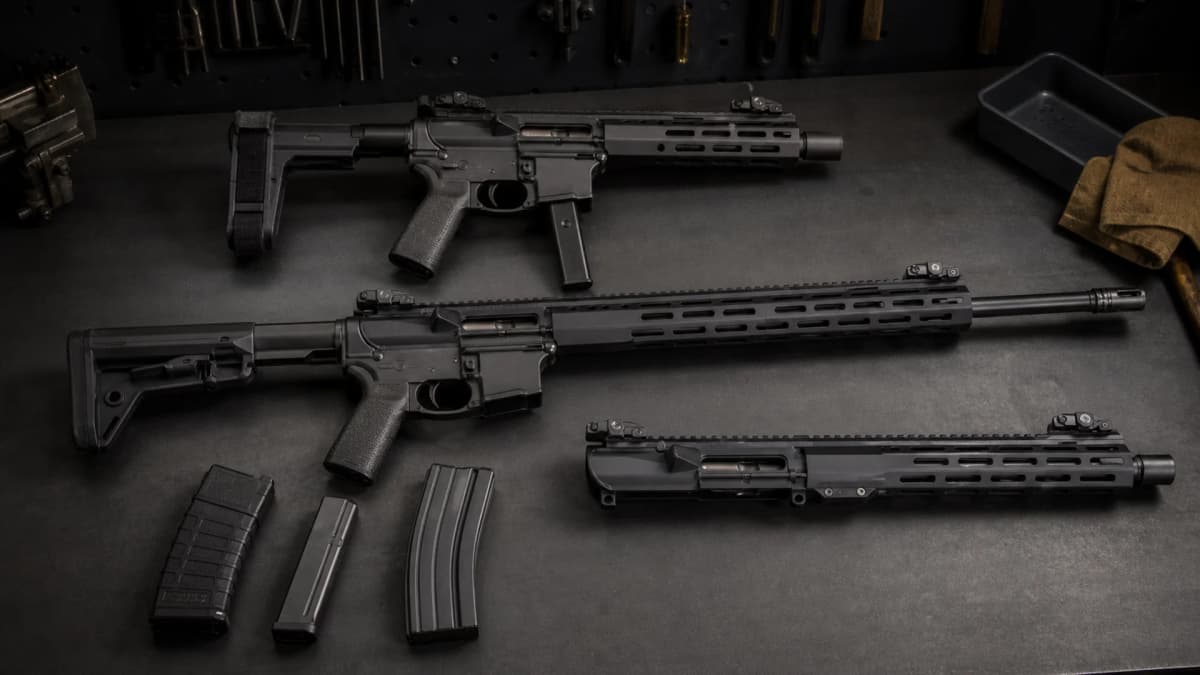

Best AR9s 2026: 11 Complete Guns, Uppers & Build Paths

The ranking is ordered by how much of the AR9 problem each purchase actually solves. Ranks one through seven are complete firearms, so the maker has already matched bolt, barrel, ejector, magazine, buffer, and spring into one working package. Ranks eight and nine are current 9mm uppers for a buyer who already owns a lower. Ranks ten and eleven are magazines, and they earn ranked slots because on the AR9 the magazine is a mechanical part of the action, not an accessory: ejector location, feed-lip geometry, magazine height, and bolt hold-open timing all have to match the upper you run it in.

CMMG takes the top two positions because the fixed-ejector Radial Delayed Blowback system attacks the category's central compromise. The Foxtrot Mike Mike9 is third on features rather than action type: a forward non-reciprocating charging handle and fully ambidextrous controls in a complete 16-inch rifle. The PSA Gen4 PA-9 is fourth and is the answer to "what is the cheapest complete AR9 that is worth owning." Angstadt and Panzer split the compact lane at very different prices, and the Mk17 sits seventh only because SIG P320 magazines serve a narrower audience than Glock-pattern magazines do.

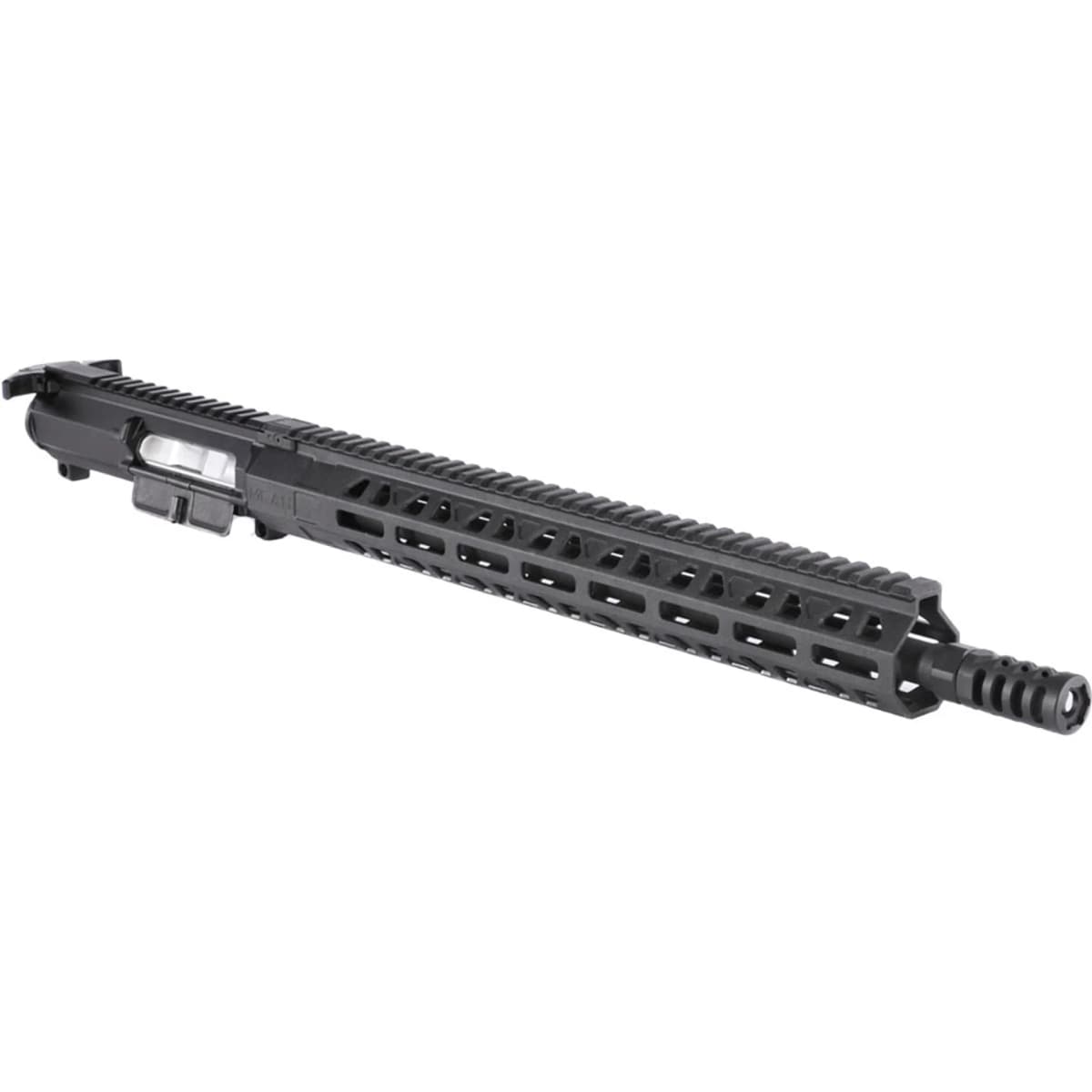

Buy an AR9 upper instead of a complete gun only when you already own a lower that the upper is designed to work with. Two current paths earn ranks here. The MEAN Arms Bearing Delay upper at $1,420 is the tunable one: three ball bearings engage the barrel extension to resist opening, and replaceable lifters change how long that resistance lasts. It runs standard AR-15 buffers, comes in 4.5, 7.5, 11, 14.5, and 16-inch barrels, and ships with two lifters and two ejectorless EndoMags.

The CMMG fixed-ejector 9mm upper at $974.95 is the other current path. It is the same 8-inch 1:10 Radial Delayed Blowback front end used on the Banshee, sold as an upper group, and CMMG supports it across Mk4, Mk17, and MkGs lower configurations. The matched bolt and barrel are what create the delay.

The two conversion magazines exist because a standard AR-15 lower has a magazine well built for 5.56 magazines and a fire control pocket that never expected a 9mm cartridge. The EndoMag is an insert that converts a Gen 2 or Gen 3 Magpul PMAG body, which you supply separately, and it starts at $32. The 40-round ExoMag at $35 is a complete magazine with no donor body required. Both add last-round bolt hold open, and both come in ejector and ejectorless versions. That version choice is the whole decision, and the next section explains why.

If your plan is a parts build rather than a purchase, the AR9 builder models the lower, upper, bolt, buffer, trigger, and magazine path as one core, and our AR-9 accessories and upgrades guide is the parts-level companion once the host is chosen.

If you are buying a complete gun, pick the magazine system first: the maker has already matched the bolt, ejector, buffer, and spring, so the magazine ecosystem is the decision that outlives the gun. If you are building or converting, that order reverses. Choose the upper and operating system first, then take the lower, magazine, and ejector arrangement its maker supports. Glock-pattern double-stack magazines have the broadest complete-gun support in this ranking: the Banshee FE MkGs, Resolute FE MkGs, Mike9, PSA Gen4 PA-9, Angstadt UDP-9, and Panzer ARP9 all feed from them. Colt-pattern magazines give a traditional straight stick-magazine layout in a dedicated AR9 lower. SIG P320 magazines are the CMMG Banshee FE Mk17's system, which is a strong argument if you already own P320 pistols and a weak one if you do not. MP5 magazines turn up on some AR-adjacent 9mm guns, but an MP5 magazine does not make a firearm compatible with an AR9 lower.

The fifth option keeps the standard AR-15 magazine well. The MEAN Arms EndoMag insert converts a PMAG body, and the ExoMag is a standalone 40-round magazine in the same AR-15 format. CMMG publishes its own conversion magazine for running a radial-delayed 9mm upper on a standard Mk4 or AR-15 lower. This path is the cheapest way to add 9mm to a lower you already own, and it is the one with the most ways to get the order wrong.

Here is the part buyers skip: magazine pattern alone does not tell you where the ejector lives. A standard AR-15 lower has no 9mm ejector, so on the usual straight-blowback conversion path the magazine has to supply one. Fixed-ejector upper systems are the exception: CMMG's FE uppers run on a Mk4 or mil-spec AR-15 lower while carrying the ejector themselves. That is why MEAN sells an ejector version of the EndoMag and ExoMag for standard blowback bolts, and an ejectorless version for its own Bearing Delay upper and CMMG's Radial Delayed Blowback systems, where the upper group already supplies the ejector: MEAN and the legacy CMMG carrier arrangement carry it on the bolt, while CMMG's FE generation fixes it in the upper receiver with a relief cut in the carrier. Dedicated Glock, Colt, and P320 lowers are a third arrangement: the ejector sits in the firearm rather than on the magazine, though where it sits is not universal, and some Colt-pattern conversions carry it on the magazine-well block. Order the wrong one and the gun will not eject. MEAN also notes that a dedicated Glock or Colt pistol-magazine lower may need its stationary ejector removed to run the Bearing Delay upper. That is a modification to the lower, never a modification to a MEAN magazine.

Straight blowback holds the breech closed with mass and spring pressure alone, and every complete AR9 in this guide except the two CMMG Banshee models and the Resolute uses it. There is no gas port on a blowback AR9 barrel, no gas block, and no gas tube; the case head pushing on the bolt face is the entire operating system. That is why blowback guns are cheap to build, mechanically simple, and why the moving-mass package is the thing that has to be right.

CMMG's Radial Delayed Blowback uses a matched bolt and barrel whose rotating geometry slows the opening sequence. The practical consequence is that the design does not need to reach the bolt and buffer mass a straight-blowback gun of the same length would, and that changes recoil character and how the gun behaves with a suppressor. CMMG's fixed-ejector generation, badged FE, moves the ejector out of the spring-loaded bolt carrier and into a dedicated PCC upper receiver; the earlier carrier-ejector models still exist alongside it. That is why the magazine question above has to be answered against the exact generation you are buying.

MEAN Arms takes a different route to the same goal. Three ball bearings engage the barrel extension and resist the initial opening, and swapping the lifters changes how much resistance the upper produces. That is genuinely tunable in a way a fixed geometry is not, and it is why the Bearing Delay upper ships with two lifters and a lifter catalog behind it. Roller-delayed designs solve the same problem with a roller pair. A small number of AR9 uppers use it, but the layout is far more established on non-AR PCC platforms; our modern PCC comparison is where to compare those against the AR9 field.

None of this makes parts universal. A delayed system is a matched package: bolt, barrel, ejector location, magazine, buffer, and spring are specified together by the maker, and a part that works in one delayed system is not a part for another. Suppressor planning follows the same logic, because thread pitch and action type both drive the outcome; our PCC suppressor pairing guide matches hosts to cans once you know which action you bought. Every complete gun ranked here uses 1/2x28 muzzle threads, and the Panzer ARP9 adds an integral tri-lug behind them.

Buy a complete gun. That is the right default for almost everyone reading this, and the PSA Gen4 PA-9 at $669.99 is the number that makes the argument: a complete 16-inch rifle with a dedicated Glock-pattern lower, an EPT trigger, an M-LOK handguard, and 1/2x28 threads costs less than either ranked upper does by itself. A complete gun also means somebody already proved the bolt, buffer, spring, and magazine work together with the barrel they installed.

Buy an upper when you own a lower the upper maker names, and when you want something the complete-gun market does not sell you. That is the real case for the MEAN Bearing Delay upper and for CMMG's fixed-ejector upper group: tunable delay across five barrel lengths in the first case, and a radial-delayed front end on a Mk4, Mk17, or MkGs lower in the second. It is not a savings play. Both uppers cost more than several complete blowback rifles.

A cheap AR9 build from parts is the third path, and it is a project, not a shortcut. Start at the upper and operating system, because that is what decides the rest: a bolt whose mass matches the barrel length, a buffer and spring that match the bolt, a lower and magazine pattern the upper's maker supports, a magazine whose ejector configuration matches that upper, and a trigger rated for blowback hammer speeds. Model it in the AR9 builder before buying anything, and use the comparison tool to put the complete guns above side by side against what the parts actually add up to. The build wins on configurability, never on price.

One decision is worth making before you buy rather than after: the optic. Sight height and mount choice on a 9mm AR are driven by the receiver rail and the comb of whatever stock or brace the host ships with, and our best PCC optics guide covers that with published sight heights instead of guesswork.

There is no universal AR9 buffer weight, and any chart that gives you one is describing a specific gun. On a straight-blowback AR9 the combined mass of the bolt and buffer, the spring rate, and the distance the bolt travels are a single system. Change the barrel length, the ammunition, or the muzzle device and you have changed the inputs to that system. This is why a complete gun is worth paying for: the PSA Gen4 PA-9, Mike9, UDP-9, and ARP9 arrive with that arithmetic already done for the configuration they ship in.

Delayed systems move the work to the maker but do not eliminate it. The MEAN Bearing Delay upper runs standard AR-15 buffers, and its tuning happens at the lifters rather than in the receiver extension. Either way, the correct starting point is the upper maker's own specification, not a generic blowback recipe carried over from a different gun.

Then test the whole configuration with the ammunition and muzzle setup you will actually run, because a can or a brake changes the impulse the system sees. Forced-reset triggers are a separate tuning problem with their own bolt and buffer requirements, and they belong in their own guide: our AR9 forced-reset build guide covers that path end to end and is the right place to start if that is your goal, since it changes which host you should buy.

Every entry in this ranking had to be a currently buyable product with a manufacturer or retailer page carrying a final configuration, a price, and a published specification. That single rule removes most of what an AR9 shopping list usually collects. Announced models without an orderable configuration are not purchases, they are news, and a guide that ranks them is ranking a press release.

Capacity variants were folded into their parent entry rather than given separate ranks. MEAN Arms publishes the ExoMag in several capacities; the 40-round version represents the standalone standard-magwell decision, and choosing a shorter body is a preference, not a different buying question. The same logic applies to MEAN's specialized competition derivative of the Bearing Delay upper, which is a narrower product built on the same mechanism already ranked here.

Uppers and lowers sold only as components of a full parts build are also out of scope. A stripped 9mm lower is a build decision, not a ranked purchase, and it belongs in the builder alongside the bolt, buffer, and trigger it has to be matched with.

Four of the complete guns here use barrels under 16 inches: the Banshee FE MkGs and Banshee FE Mk17 at 8 inches, the Angstadt UDP-9 at 6 inches, and the Panzer ARP9 at 6.5 inches. Those are pistol-configuration firearms, and the rule that governs them is about configuration, not about the barrel by itself. Attaching a stock to a firearm with a barrel under 16 inches can create a short-barreled rifle under the National Firearms Act, which carries its own registration process before the configuration is assembled.

The practical version: either keep the firearm in a lawful pistol configuration, or complete the applicable federal registration first. A brace does not automatically make a firearm a rifle or exempt it from the SBR rules; ATF treats whether a given firearm is designed and intended to be fired from the shoulder as a question about that configuration. ATF proposed removing the 2023 brace language in a notice of proposed rulemaking dated May 6, 2026, so check its current status rather than assuming a settled outcome. Confirm the current federal guidance and your own jurisdiction's rules before you build a configuration you cannot undo at the range. An upper receiver by itself is not a short-barreled rifle; what you assemble it into can be.

If none of that is a project you want, the answer is the 16-inch lane. The Resolute FE MkGs, the Mike9, and the PSA Gen4 PA-9 are all 16-inch rifles, and the Resolute is the only one of the three that pairs that length with a delayed action.
