AR9 FRT Build Guide 2026: 9mm Forced Reset & Blowback Tuning

The bolt carrier is the part most likely to kill an AR9 FRT build, and it fails in two distinct ways that builders lump together. A forced reset trigger rides the carrier to mechanically reset, so the carrier has to do two things: present a trip shelf where the trigger expects it, and leave the reset mechanism room to move. Sort out which of the two your bolt fails before you buy or cut anything.

Failure one is trip-shelf geometry, and no amount of weight trimming fixes it. The shelf on a 9mm bolt needs to sit about 1.57 inches from the rear of the carrier, the same place an AR-15 carrier puts it. The Aero Precision EPC bolt puts its shelf too far forward and does not trip the reset, and the two-piece MAS Defense and Right To Bear bolts (the same bolt under two labels) cannot trip it at all. Aero’s own listing warns the EPC bolt may not work with some aftermarket fire control groups; a forced reset cassette is exactly that case.

Failure two is the internal blowback weight. Many 9mm bolts carry a rear tungsten or steel slug to slow the bolt, and on selector-style forced reset devices (Super Safety, ARC Fire, Atrius FRS, the Myth Super16 selector) that slug sits where the reset lever needs to travel. That is the failure the pre-cut carrier in the Myth kit exists to solve. The Triggered Company Disruptor and LAT are the exception: their trip misses the weight, so a stock one-piece 9mm bolt runs them without notching. The Rare Breed FRT-15L3 was not part of the test below, so treat it as confirm-or-relieve on any bolt that carries a weight.

The table is an August 2026 bench test of 28 9mm bolts against the Disruptor in safe, semi, and forced reset positions, none of the bolts modified, run on Spikes Colt-pattern, Foxtrot Mike, and Aero lowers with generic M4 uppers. The LAT gave identical results on the bolts it was checked against. Tolerance stacking between your lower and upper can move a marginal bolt either way, so a pass here is a strong signal, not a guarantee; if a passing bolt still will not reset in your lower, a thin shim under the cassette is the usual fix.

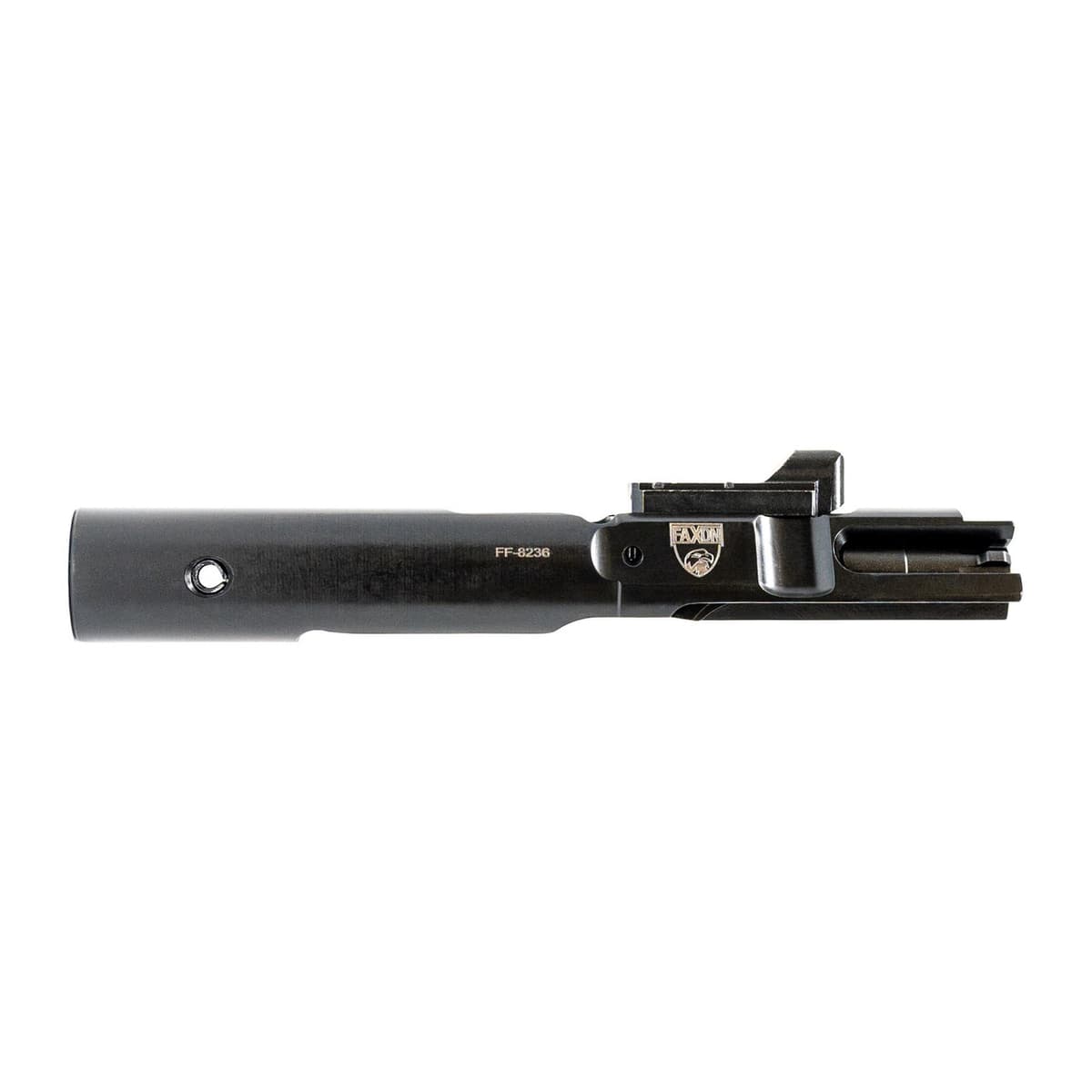

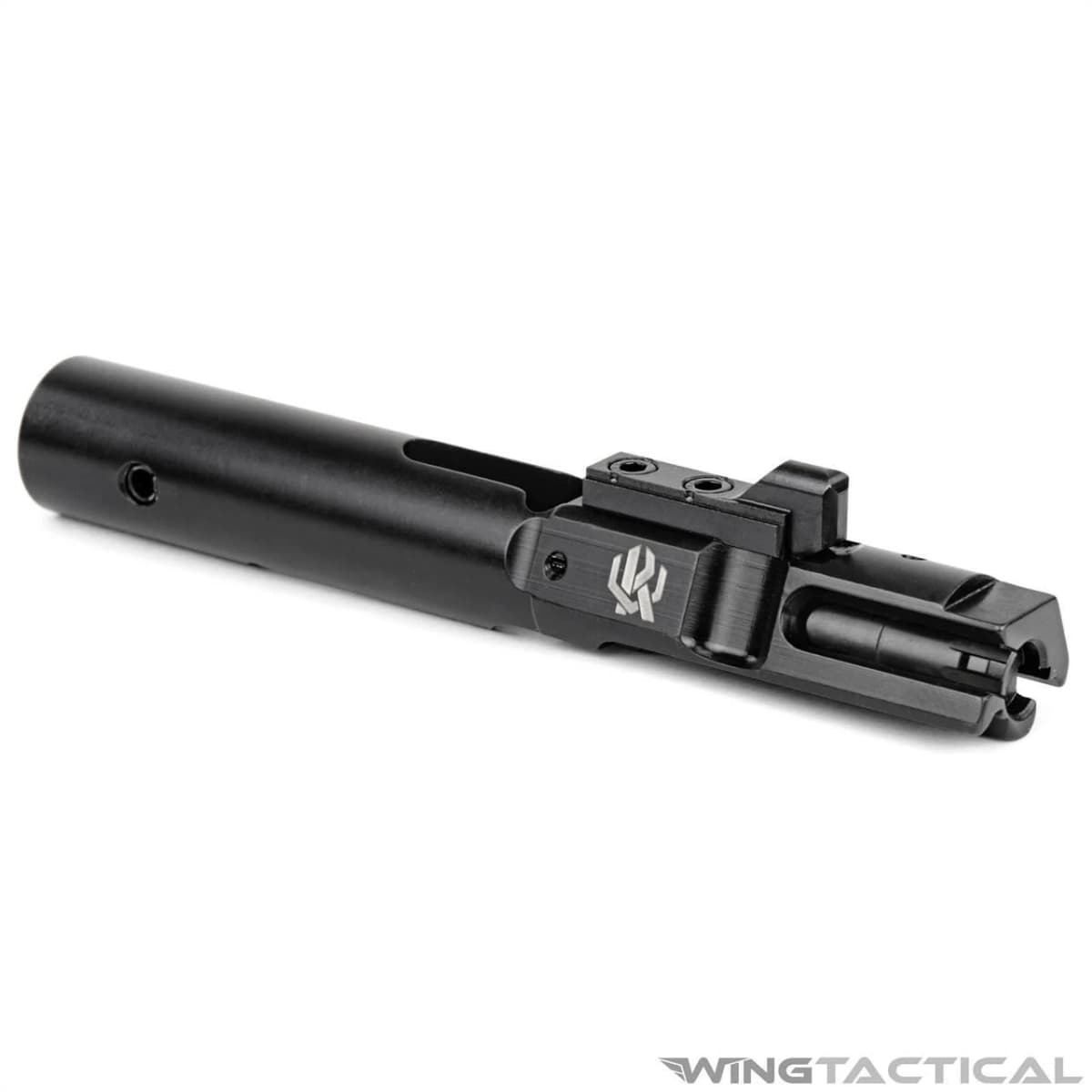

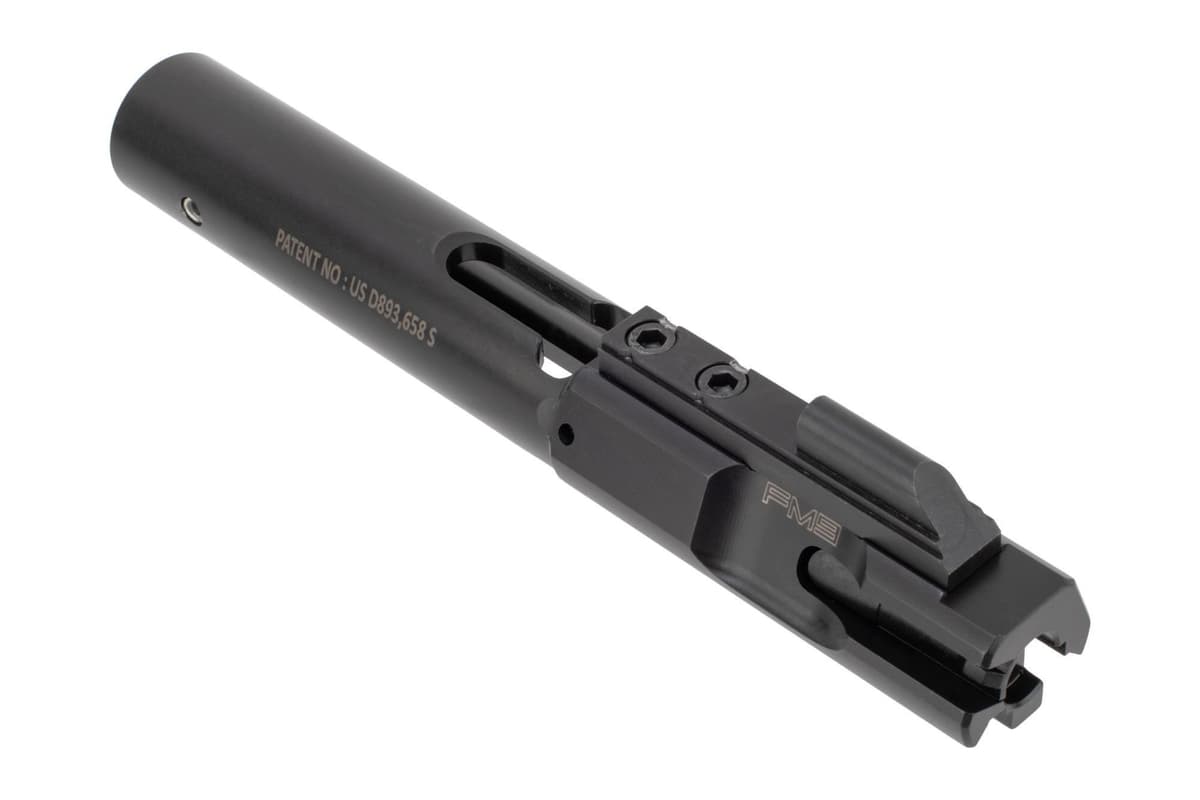

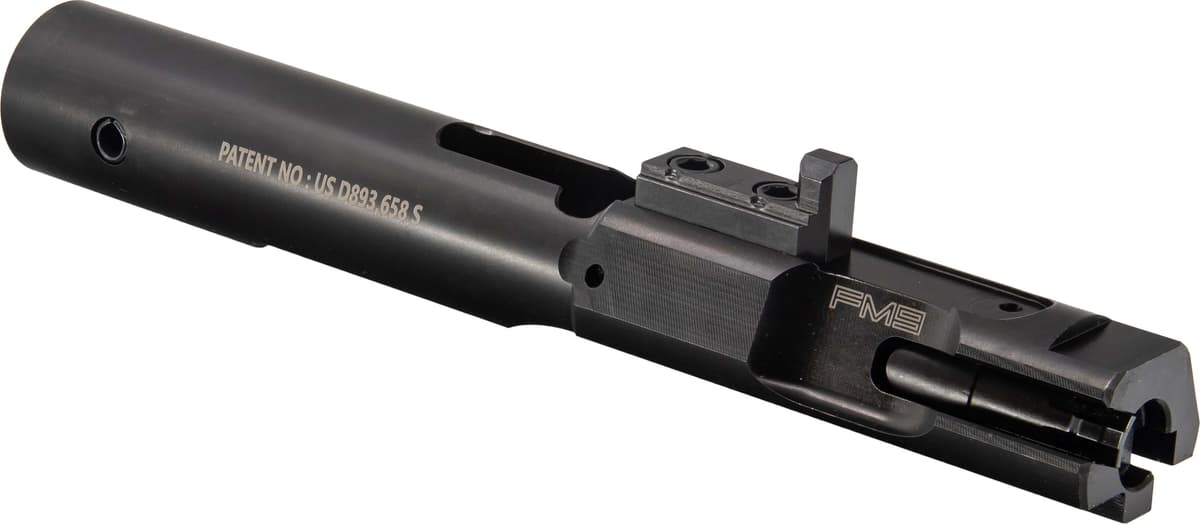

The practical read: most one-piece 9mm bolts on the market are Outerwild, IDL, KAK, or PSA production under a house label, and all of those pass. If you already own a Foxtrot Mike, Faxon, Kaw Valley, PSA G4, Angstadt, or IDL bolt, run the Disruptor or LAT on it as-is. Buy a bolt for this build only if you are starting from an Aero EPC or a two-piece bolt, or if you are going selector-style and want the pre-cut carrier the Myth kit ships. The ranked list below covers the bolts you can actually buy: the tested passes first, then two bolts with only a manufacturer claim, and the Aero EPC last so nobody orders it for this job.

Start heavy, then tune down. That is the entire buffer-and-spring method for an AR9 FRT, and reversing it is how builders break lowers and chase phantom reset problems. A heavy buffer absorbs the full-pressure blowback impulse, protects the lower, and keeps the FRT from resetting faster than you can run it. You only lighten the system if the gun is cycling too fast for you to keep up.

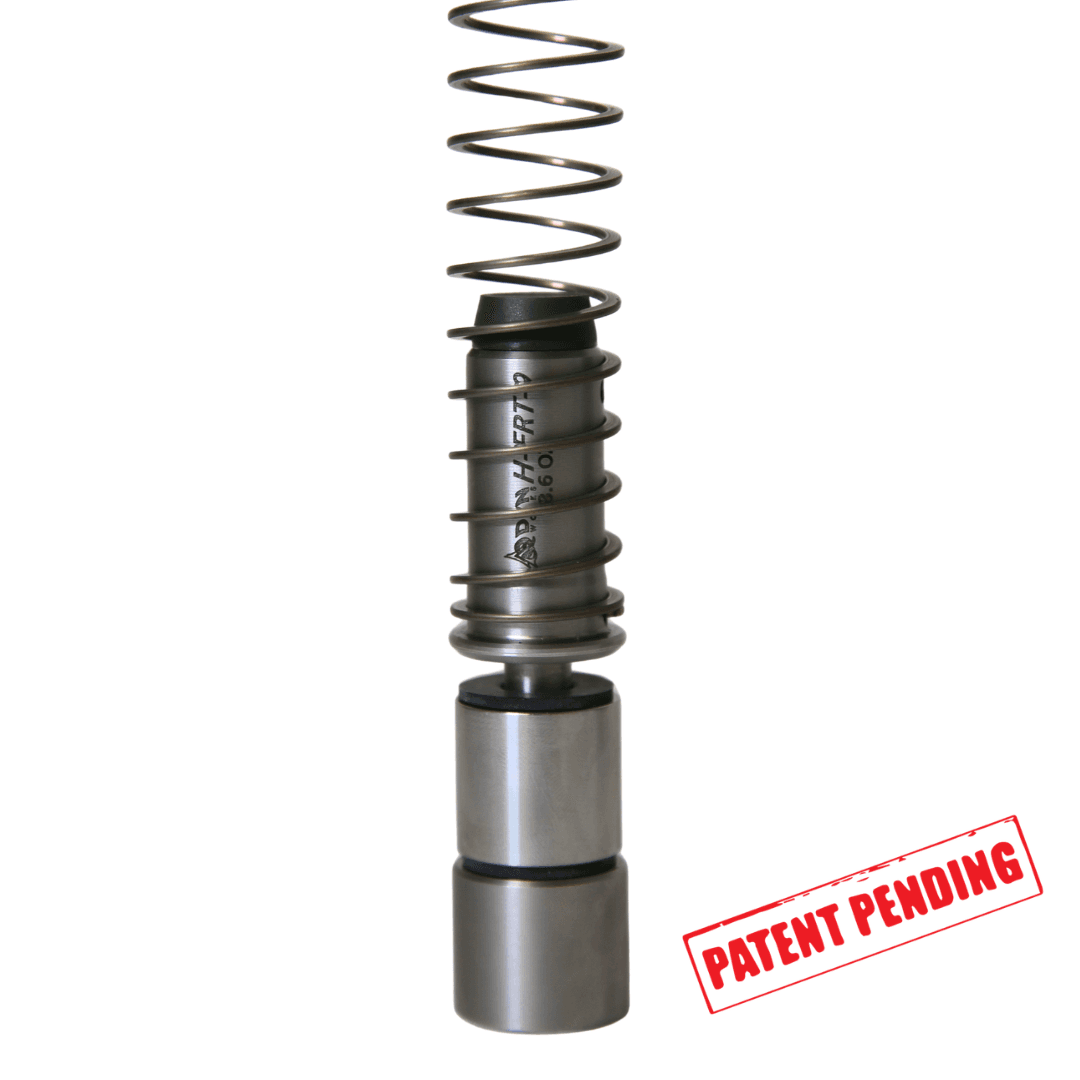

The ODIN Works H-FRT9 is the part that makes this repeatable. It is the first off-the-shelf buffer aimed squarely at AR9 blowback PCCs running a forced reset trigger: an 8.6 oz 303 stainless heavy buffer with an included proprietary flat wire spring. Because ODIN sells the buffer and spring as a matched system, run the pair together before swapping parts. For the design background on why blowback FRTs needed a dedicated buffer family, see the ODIN H-FRT buffer launch breakdown.

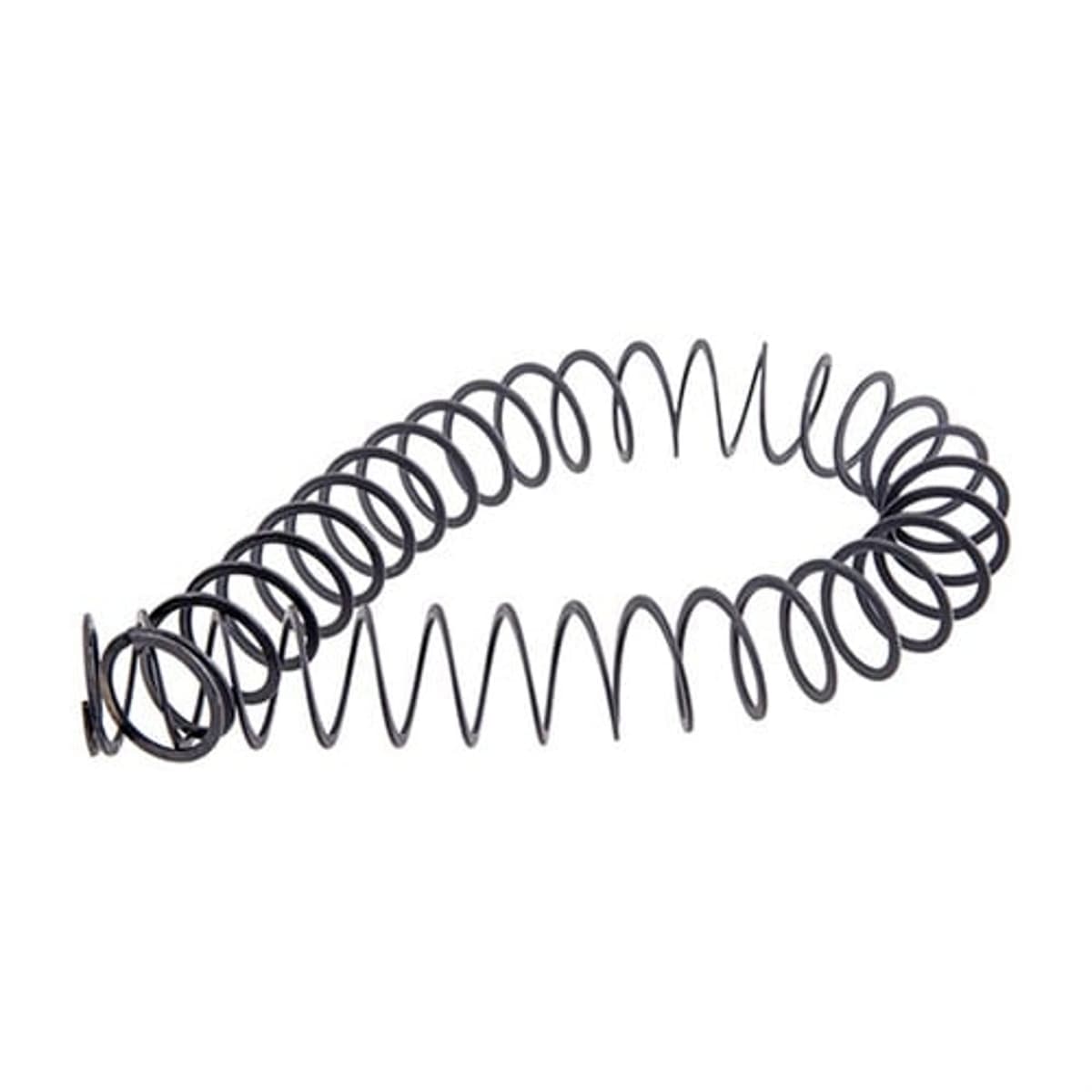

If the rate of fire still outruns you, the lever is the spring, not the buffer. A lighter flatwire spring such as the Tubb Lightweight Flatwire Buffer Spring brings the cyclic rate down. Tubb lists it for low-pressure systems like 300 Blackout and 300 Whisper rather than 9mm, so in an AR9 it is a builder cross-application, used as a cheap rate-taming part, not a 9mm-specific product. Tune it empirically and watch for the two failure modes: too light and the gun resets faster than you can shoot, too heavy and it short-strokes and will not reset.

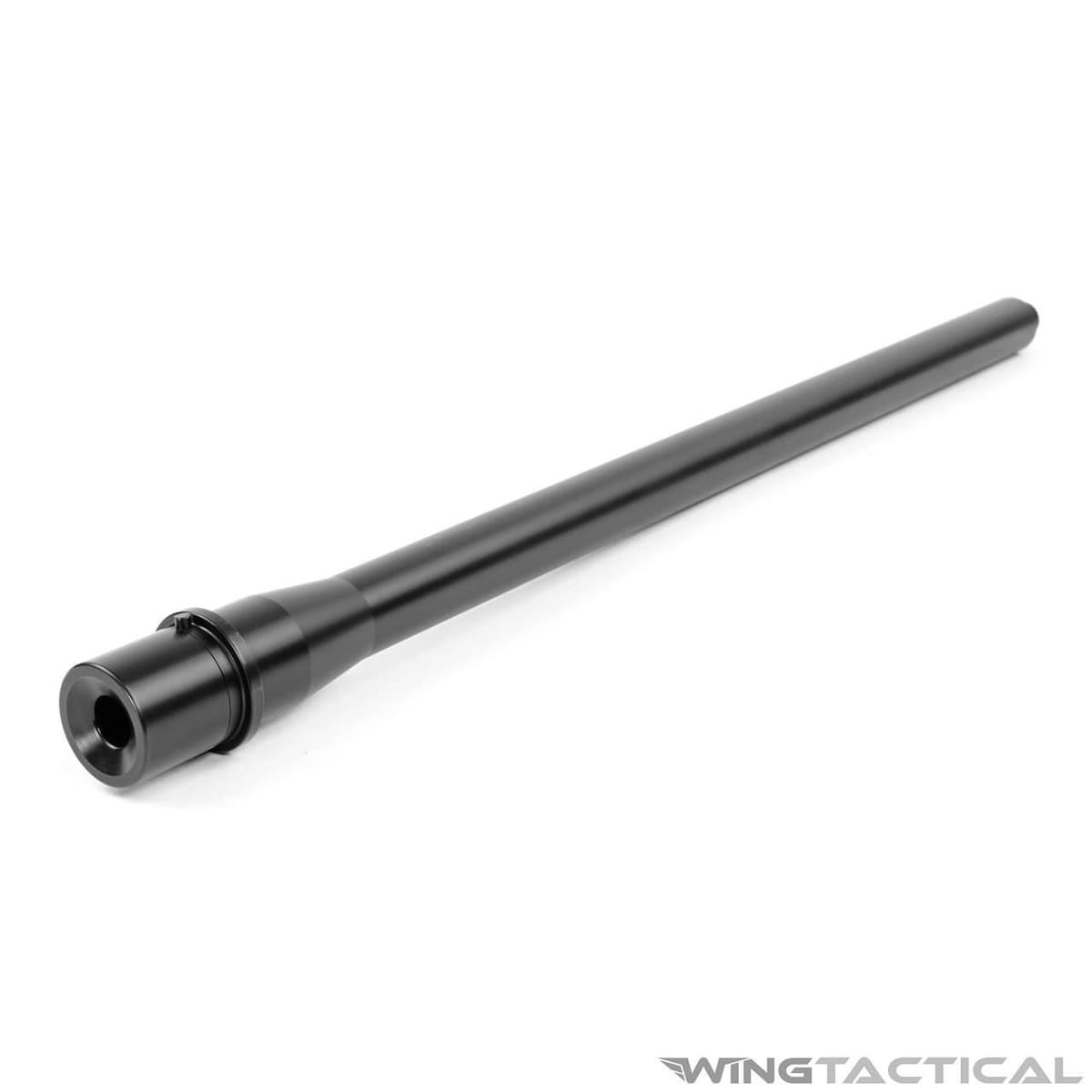

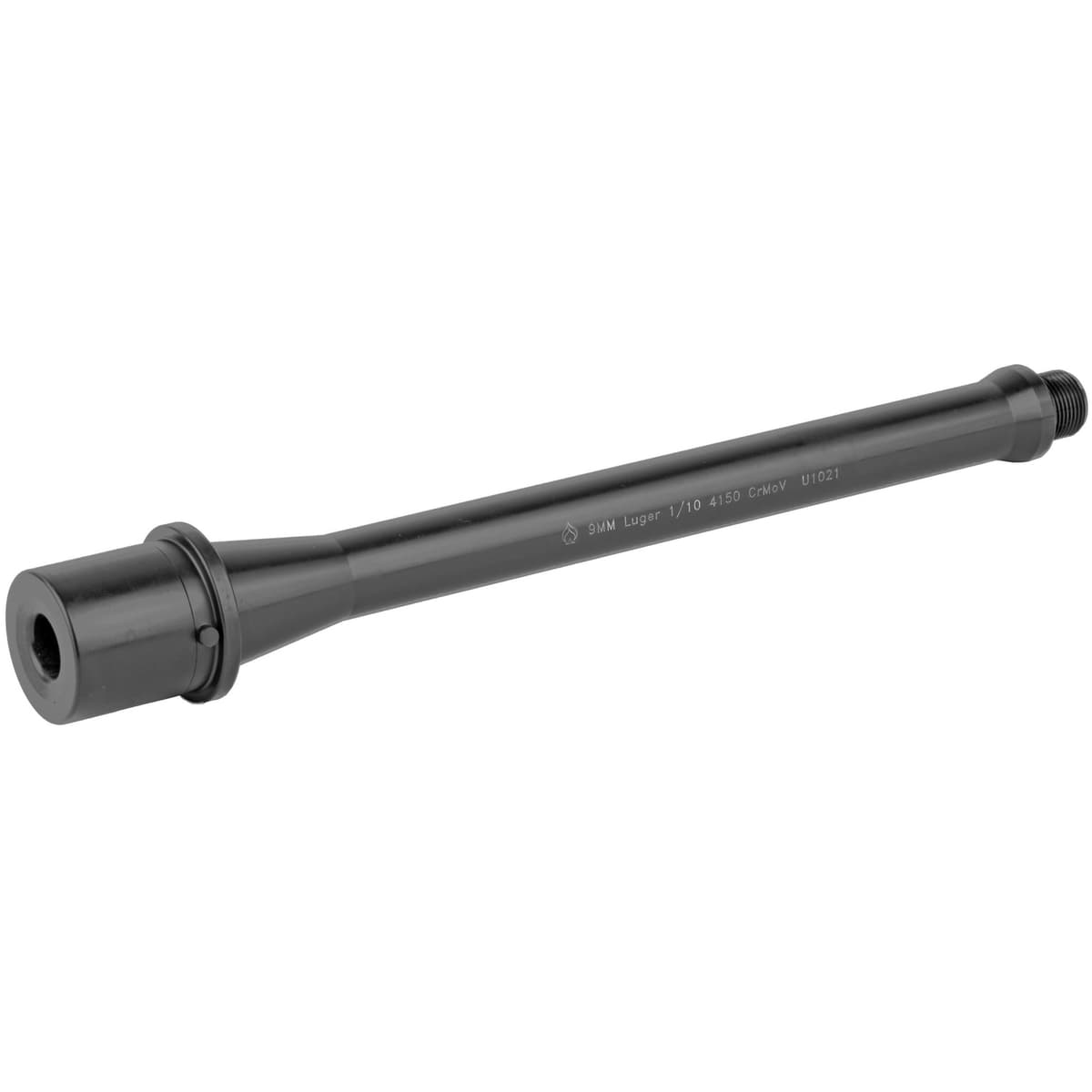

The barrel decides your legal configuration and the handguard hangs off it, so choose the barrel by build type first. A 16-inch barrel keeps the build a standard Title I rifle with no NFA paperwork; the Ballistic Advantage EPC 9mm 16-inch covers that path. For a compact pistol or a short-barreled rifle, the EPC 9mm 8.3-inch is the maneuverable choice. The 16-inch threshold is barrel length counting any permanently attached muzzle device, not overall length, and 9mm gains little velocity past carbine lengths, so there is no ballistic reason to go longer than 16 inches.

Both barrels run the EPC blowback feed path for Glock and Colt-pattern builds with 1/2x28 threads, so use a 9mm-bore muzzle device. The Aero Precision ATLAS S-ONE is a light free-float M-LOK handguard that mounts via Aero’s proprietary ATLAS taper-lock barrel nut (included) and fits AR9/EPC uppers; match the handguard length to the barrel you pick. Neither part changes the tuning math, but a free-float rail keeps the package slim and light, which is the point of a 9mm carbine.

Magazines are the cheapest, highest-return part of the build, and an FRT eats them fast. Do this first: an AR9 running a forced reset trigger burns through a magazine in a hurry, and a tuning session alone will empty a stack. Plan on six to eight magazines for range and training, more if you compete, so you spend the day shooting instead of reloading sticks.

The magazine pattern follows your magwell, not the caliber. A Glock-magwell AR9 feeds Glock-pattern 9mm sticks like the Magpul PMAG 27 GL9, while a Colt-pattern lower needs Colt 9mm magazines; the two do not interchange. Decide the magwell when you pick the lower, then buy mags to match. Check your state magazine-capacity limits before ordering high-capacity sticks, especially in the restricted states that also limit FRTs.

Building a conventional semi-automatic 9mm AR instead? Our best AR-9 accessories and upgrades guide covers the non-FRT path: operating-system choice, buffer and bolt matching, and the Glock, Colt, dedicated-lower, and CMMG ARC magazine systems.
