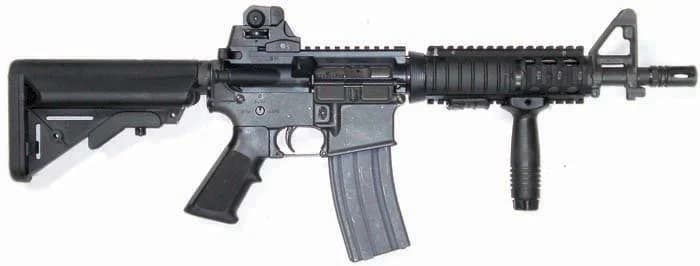

MK18 Build Guide 2026: Mod 0, Mod 1, and MK18-Style Parts List

Building the upper from parts makes sense when you already own a stripped upper receiver and want to choose the rail, charging handle, and trigger separately. The DD 10.3 inch Government CHF barrel ($394, get the version with the matched pinned low-profile gas block), the KAC M4 RAS ($312) for Mod 0, the DD RIS II MK18 9.55 inch rail ($582) for Mod 1, and the DD M16 BCG ($265) are the core buyable parts. The same KAC M4 RAS and KAC broomstick vertical grip define the full-length M4A1 SOPMOD Block 1 carbine the Mod 0 shares its accessory lineage with. Add a GI charging handle for most Mod 0 references, or a PRI Gas Buster Big Latch for suppressed reference builds that support it. Add a Geissele SSA trigger when the lower is not staying mil-spec.

One caveat on the carrier: the DD M16 BCG is not clone-correct. It is the right carrier functionally, with the M16 full-auto profile, a Carpenter 158 bolt, chrome-lined bore and gas key, HPT/MPI testing, and a properly staked gas key, and nothing about it makes a 10.3 inch gun run worse. What it does not have is the markings. Issued MK18s run Colt-supplied carrier groups, which show a Colt "C" roll mark on the carrier and MPC or MPC-2 stamps on the bolt, though some current Colt production ships instead with a white dot on the bolt and no external carrier marking. A DD carrier is marked with DD's own logo. If you are photo-matching a specific Mod 0 or Mod 1 rifle, use the Colt SP64028 carrier ($229.99). Colt markings vary between production runs, so it may show the C roll mark and MPC bolt stamps or a plain white-dot bolt with no external carrier marking; it is also hard to find. For an MK18-style build the DD carrier is the simpler buy. The same caveat applies to the GRIP-N-RIP ambidextrous charging handle that ships in DD's complete uppers: correct references show a GI handle or a PRI Gas Buster, not an ambi latch. For the wider carrier field, see the bolt carrier group guide.

For a modern M-LOK MK18-style upper, swap the RIS II for the Daniel Defense RIS III 10.5 inch ($582), which keeps the same six-bolt bolt-up barrel nut so the change is a rail swap and nothing else, or for a short Geissele MK16 or BCMGUNFIGHTER M-LOK handguard. The rest of the parts list is unchanged. For deeper coverage of the builder upper, see the best upper receivers guide. The rifle builder also lets you preview a custom 10.3 inch configuration before committing parts.

You do not have to assemble the upper at all. Daniel Defense builds the MK18 as a complete rifle and as a standalone upper receiver group, which is worth knowing before you price out a parts list. The complete rifle comes two ways. The MK18 RIII ($2,682) is current production: 10.3 inch cold hammer forged Government-profile barrel, carbine gas, the 9.5 inch RIS III M-LOK rail, and Daniel Defense's fully ambidextrous lower, in Black or FDE. The older MK18 SBR ($2,499) keeps the RIS II quad rail and the standard lower, which puts it far closer to the Mod 1 silhouette, and it is offered in Black, FDE, and Mil Spec +. Both ship as registered short-barreled rifles rather than braced pistols, so they transfer as NFA items through a dealer. Verify the current transfer process and your state and local rules first; this is general information, not legal advice.

For most builders the upper receiver group is the more interesting buy. The MK18 URG ($1,641) is the RIS II version: the 9.55 inch quad rail that defines the Mod 1 silhouette, bolted to the same 10.3 inch CHF barrel, with a pinned low-profile gas block, an M16-profile BCG, and the GRIP-N-RIP charging handle in the box. Run the parts math against it. The standalone DD 10.3 inch barrel ($394), the RIS II MK18 rail ($582), and the DD M16 BCG ($265) come to $1,241 before you add a stripped upper receiver and a charging handle, and the URG price includes the labor, the headspacing, and the gas-block install that the parts route leaves to you. Build from parts when you need a rail the URG does not come with, which is the case for any Mod 0 reference running the KAC M4 RAS, or when you already own half the list.

The MK18 RIII URG ($1,641) is the same upper with the 9.5 inch RIS III M-LOK rail in place of the quad rail. Same barrel, same gas system, same included BCG and charging handle, roughly the same money. It is the wrong rail for a Mod 1 clone and the right one for an MK18-style build that runs current lights and pressure pads without stacking rail panels. Two things to plan for on either URG: the included BCG and the ambidextrous GRIP-N-RIP charging handle are not clone-correct, so a strict build swaps them for a Colt carrier and a GI or PRI handle, and a URG is still just an upper. You supply the lower, and a 10.3 inch barrel behind a stock still means SBR registration, or another lawful configuration where allowed.

For modern MK18-style builds, run the EOTech EXPS3-0 ($859) for the Mod 1 holographic look, or the Aimpoint CompM5 ($1,080) for the M68 silhouette with a 50,000-hour battery life. Both are current production, both are NV-compatible, and both QD-mount cleanly to a RIS II or RIS III rail. For a deeper red-dot comparison including the Aimpoint Micro T-2, see the best red dot for AR-15 guide. Strict clone builders use this same shelf as the modern stand-in and search separately for an EOTech 553 SU-231/PEQ, marked SU-231A, or an Aimpoint CompM2/CompM4 M68 depending on the reference.

For lights, the SureFire M640DFT-PRO ($419) is the throw pick at 100,000 candela for outdoor PID, and the SureFire M640DF Scout Light Pro ($379) is the flood pick at 1,500 lumens for indoor work. Either mounts directly to RIS II quad rail or RIS III M-LOK. Strict Mod 0 clone builders search SureFire 660, M951, or M952 originals; later Mod 1 references use Insight M3X/SU-233, Insight WMX200, or original SureFire M300 and M600 Scouts. Compare against newer light options in the best weapon lights for AR-15 guide.

The SureFire SOCOM RC2 ($1,329) is the right 5.56 suppressor for any modern MK18 and the correct issued-style pairing for later Mod 1 references. It mounts on a SureFire SOCOM-pattern muzzle device (SF3P 3-prong, SF4P 4-prong, or SOCOM Warcomp), sold separately, so budget for that on top of the can. Strict Mod 0 builders search the older KAC NT4 path. Suppressors remain NFA-regulated; verify the current transfer process and your local restrictions before ordering. For thread-pitch and host pairing fundamentals, see suppressor compatibility basics. If you want the same 10.3 inch barrel in a pistol configuration with a brace, see the PDW pistol guide.

Stock choice tracks the reference. Run the B5 Enhanced SOPMOD ($100) on a modern MK18-style build for the wide cheek weld and dual battery storage. Strict clone builders match the stock to the reference rifle: LMT/Crane SOPMOD, B5 SOPMOD, or Colt M4/N1-style depending on the era. The Vickers padded two-point ($65) is the practical sling; clone builders refine it once they know the reference.

Stock Up on MK18 Magazines. A 10.3 inch carbine-gas rifle burns through ammunition fast, and magazines are the cheapest high-frequency accessory on the build. Buy more than feels reasonable; the going rate is about $12 to $15 per mag and they outlast the rifle. As a baseline: three magazines minimum for a range build, six to eight for a duty or training rifle, and a full chest-rig set if you intend to run carbine classes. PMAG 30 Gen M3 and the DURAMAG SPEED 30-Round Aluminum Magazine both run in standard MK18 lowers; buy enough to test each magazine in the actual rifle.
