Springfield Kuna Tri-Lug: Factory 3-Lug Suppressor Mount

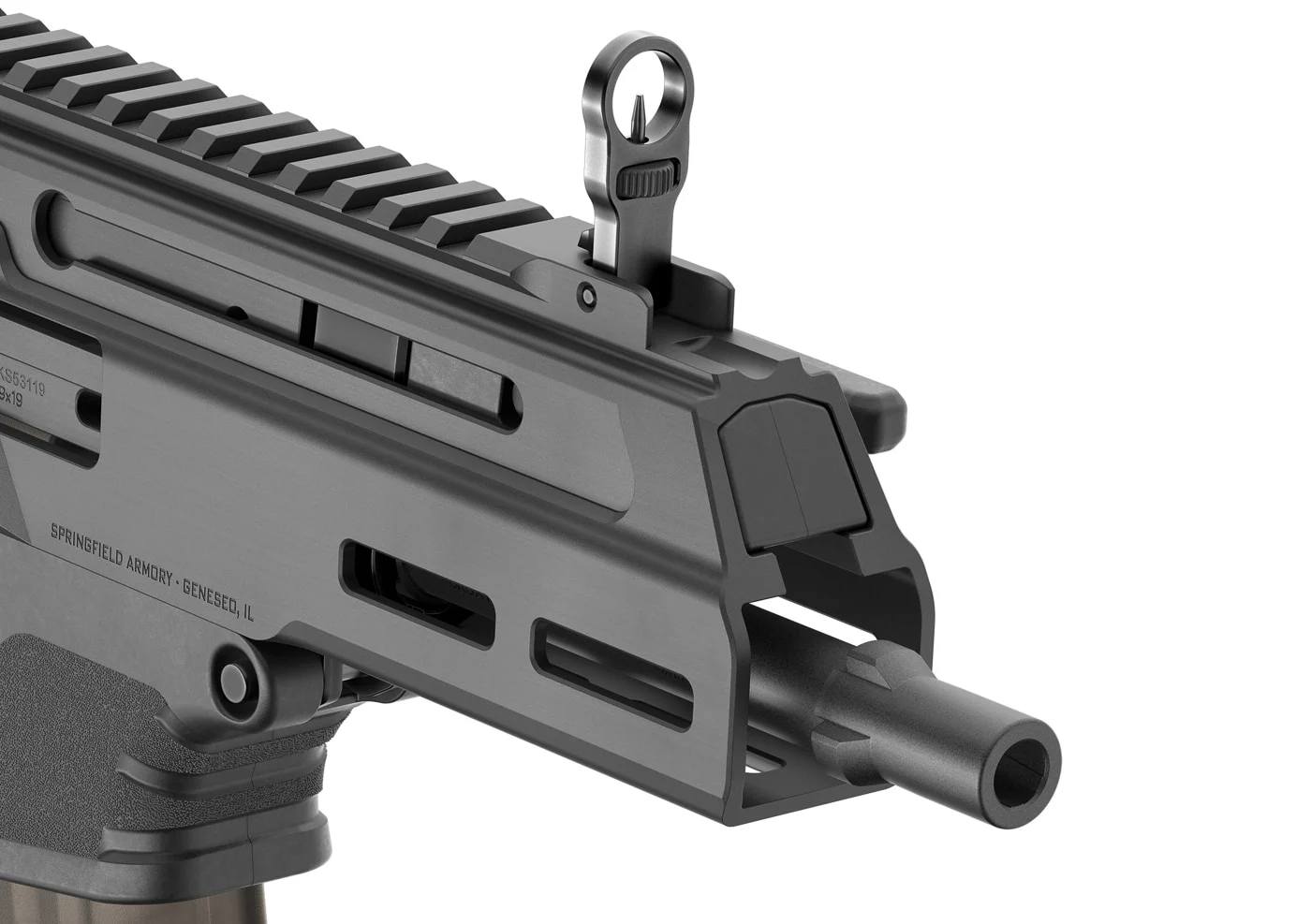

Springfield swapped the Kuna's muzzle and nothing else. The standard gun carries 1/2x28 threads with a multi-port brake screwed on; the Tri-Lug SKUs get three lugs machined into the barrel during production, and Springfield's spec sheet lists the muzzle as Tri-Lug where the standard gun's reads 1/2x28. The barrel is described identically otherwise, cold radial hammer forged with a Melonite finish and a 1:10 twist, and the rest of the gun carries over unchanged.

That means the same monolithic Type III hardcoat anodized aluminum upper with an integral M-LOK handguard, the same injection-molded glass-filled polymer lower, the same reversible non-reciprocating charging handle and ambidextrous safety, the same flat aluminum trigger, the same hybrid flip-up sights, and the same two 30-round translucent magazines. Roller-delayed operation is the reason the Kuna sold in the first place, and it is untouched.

The gun is still a pistol in all four configurations. Two ship bare with the Picatinny receiver end plate that the Kuna has always used for brace attachment, and two ship with the Strike Industries FSA folding brace already fitted. If you are working through the rest of the parts list, our Kuna upgrade guide covers the braces, triggers, handguards, and lowers that have actually shipped for the platform.

The Tri-Lug matches the standard Kuna everywhere except the muzzle. Springfield lists four SKUs, split by brace and by magazine capacity.

The braced SKUs are KN9069BTL-FSA and KN9069BTLLC-FSA, and both carry a higher MSRP than the bare guns. The two Lo-Cap SKUs exist for states with magazine capacity limits and are priced identically to their 30-round counterparts, which is worth knowing if you live somewhere the standard SKU cannot ship.

A three-lug mount is faster, repeatable, and does not put torque into the barrel every time the suppressor comes on or off. The can slides over the lugs and locks with a quarter turn, no tools, and it indexes to the same place each time. A direct-thread can has to be spun down tight, and on a gun that runs fast strings it can walk loose.

This is settled ground rather than a new idea. MP5-pattern guns standardized on three lugs decades ago for exactly these reasons, and the aftermarket has been selling three-lug adapters for threaded 9mm hosts ever since. What Springfield did is skip the adapter: the lugs are part of the barrel, so there is no thread interface to come loose underneath the mount and no adapter length added ahead of the handguard.

Direct thread still wins in one scenario. A suppressor that lives on one host and rarely comes off gains nothing from a quick-detach interface and sits marginally closer to the bore axis without the mount hardware. Our suppressor mounting systems guide works through the full set of tradeoffs across direct thread, tapered quick-detach, and three-lug.

Any 9mm can that can be fitted with an HK-pattern three-lug mount, which covers most of the premium field, but the mount is nearly always a separate purchase. This is the part worth pricing before the gun, because the direct-thread mount in the box is not the interface Springfield built this SKU around.

The Rugged Obsidian 9 ships with a 1/2x28 booster piston sized for handguns and sells its fixed mount, three-lug mount, and dual-taper mount separately. The Dead Air Wolfman ships on the DA410 fixed 1/2x28 mount and takes the DA444 three-lug adapter on the same P-Series rear. The SilencerCo Omega 9K ships with a 5/8x24 Alpha direct-thread mount and lists three-lug among its Alpha accessories. In all three cases the can is compatible; the mount is what you add.

Rugged Obsidian 9

Modular 9mm can with a three-lug mount available alongside its fixed and dual-taper options

$658

Modular 9mm suppressor with excellent versatility

9mm ratedModular ADAPT length1/2x28 booster piston includedBelt-fed rated to 9mm

Pros

• +Excellent value for modular 9mm can
• +ADAPT module swaps between short and full length in seconds
• +Outstanding suppression in full config

Cons

• −Full-length config is quite long
• −Heavier than compact-only options
• −Only the 1/2x28 piston ships in the box

Length: 4.85 inches (short) / 7.8 inches (full)Diameter: 1.37 inchesWeight: 8.7 oz (short) / 12.7 oz (full)Material: 17-4 stainless baffles and mount, hard-coat anodized aluminum tube

Verified Retailer

Shop at KYGUNCO

Affiliate links (?)

Dead Air Wolfman

P-Series rear takes the DA444 three-lug adapter, with short and long configurations on one can

$789

Modular 9mm suppressor with configurable length

9mm ratedModular 5.13 / 7.5 in lengthP-Series rear, DA410 1/2-28 mount includedFull auto rated

Pros

• +Configurable length for different applications
• +Excellent suppression in long configuration
• +Fixed direct-thread mount out of the box, with the full P-Series adapter range available

Cons

• −Heavier than dedicated pistol cans
• −A tilting-barrel handgun needs the separately sold SD500 booster and piston
• −KeyMicro and Xeno adapters add to system cost

Length: 5.13 inches (short) / 7.5 inches (long)Diameter: 1.62 inchesWeight: 9.8 oz (short) / 14.4 oz (long), no mountMaterial: Fully welded 17-4 PH stainless steel

Verified Retailer

Shop at Silencer Central

Affiliate links (?)

If your can has a 1.375x24 HUB rear, the shortest path is a generic three-lug HUB adapter rather than a brand-specific mount. Yankee Hill Machine's heavy-duty version is built to the HK three-lug standard and rated for 9mm and subsonic .300 BLK, including full-auto use. SilencerCo owners running an Omega 36M or Hybrid 46M have a narrower path: those two need the Charlie Piston Mount with the spring and piston removed and the 9mm three-lug mount threaded into their place.

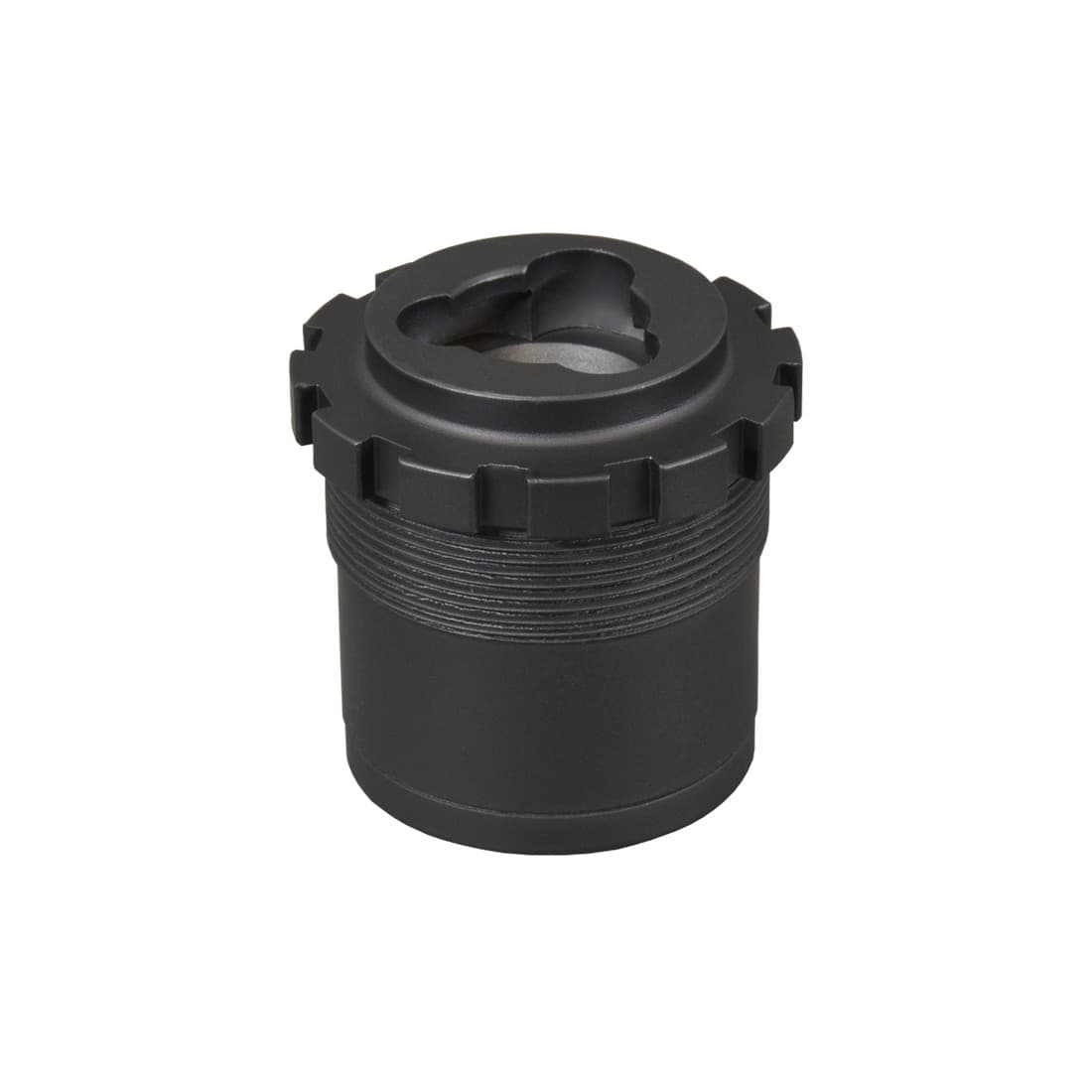

Yankee Hill Machine YHM HD 3-Lug HUB Adapter

Bridges any 1.375x24 HUB can to an HK-pattern three-lug host in one part

$159.95

Heavy-duty HK 3-lug adapter for suppressors with a 1.375x24 HUB rear interface.

HK tri-lug standard input1-3/8x24 HUB suppressor threads17-4 PH stainless steel, black oxide4.89 oz

Verified Retailer

Shop at PSA

Affiliate links (?)

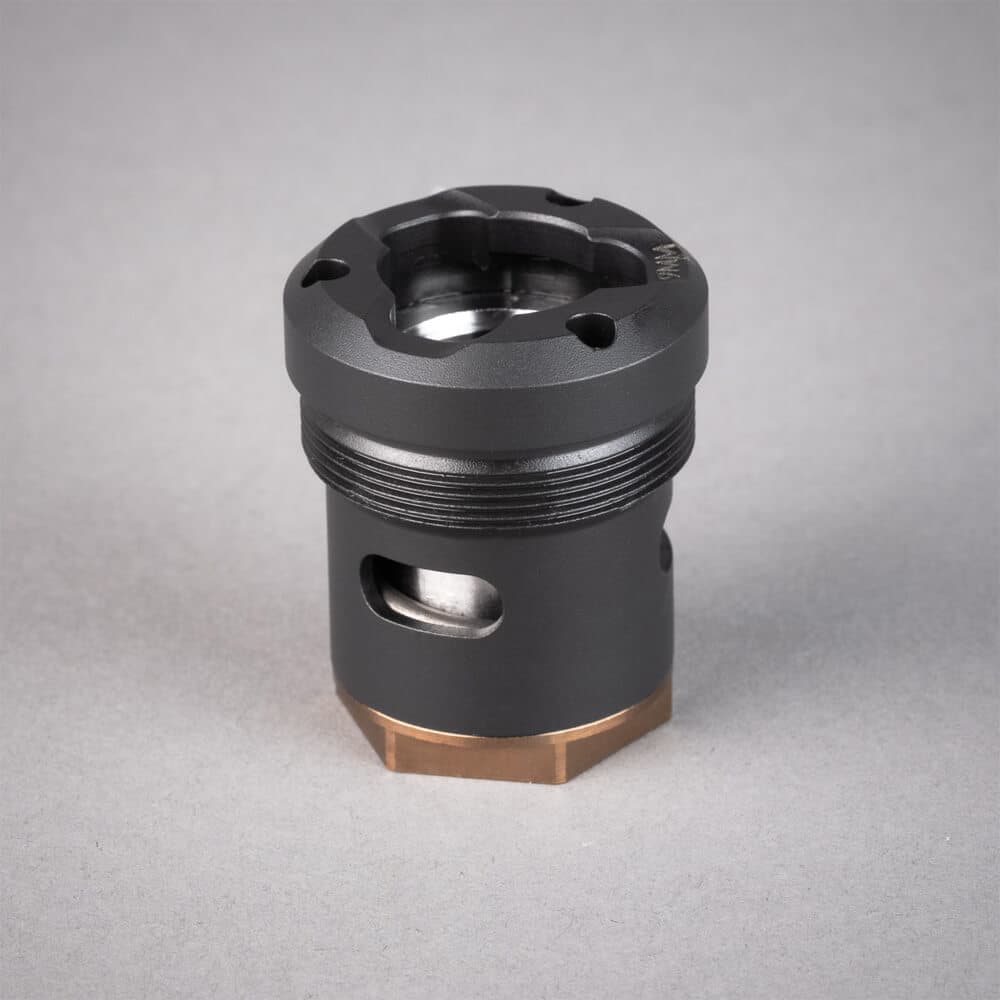

SilencerCo Charlie 3-Lug Mount Assembly (9mm)

The only three-lug path for the SilencerCo Omega 36M and Hybrid 46M

$278

Two-part Charlie Piston Mount and 9mm 3-Lug Mount assembly, the only 3-lug path for the Omega 36M and Hybrid 46M.

HK-pattern 9mm 3-lug host inputSilencerCo Charlie Piston Mount AC4751, $139SilencerCo 9mm 3-Lug Mount AC2447, $139Spring and piston come out; the 3-lug mount threads into their place

Verified Retailer

View at OpticsPlanet

Affiliate links (?)

A booster piston on a fixed-barrel host is at best pointless and at worst a reliability problem, and the Kuna has a fixed barrel. The Nielsen device exists to let a tilting-barrel handgun unlock normally with suppressor mass hanging off the muzzle. Nothing tilts on a Kuna, so there is nothing for the booster to compensate for.

Manufacturers are direct about this. Dead Air's manual states the booster must never run on a fixed-barrel host and points carbines and subguns at a fixed mount, a fixed barrel spacer, or the three-lug adapter instead. Rugged sells a fixed barrel spacer for the same reason. The Tri-Lug does not change that rule; it just removes the fixed-mount and spacer options and leaves three-lug as the answer.

That is the practical case for this SKU over the standard gun. A threaded Kuna owner who wanted the three-lug advantage was already buying a thread-on three-lug adapter and adding its length ahead of the handguard. Springfield now sells the same result with the lugs cut into the barrel. If you are sorting out what your own host takes, our muzzle thread checker covers the common PCC and subgun patterns, and the PCC suppressor pairing guide matches cans to specific 9mm hosts.

The Kuna remains the cheapest way into factory roller-delayed 9mm, and the Tri-Lug does not move that number. Roller delay used to mean an MP5 or an MP5 clone at multiples of this price, and the Kuna is the reason that stopped being true. The Taurus RPC undercuts it and is the only other mainstream roller-delayed 9mm near the price, though it feeds from its own proprietary magazine pattern with no aftermarket behind it yet.

The Kuna's own magazines are proprietary too, and that stays the platform's real cost. It does not take MP5, Glock, or CZ Scorpion magazines, so spares are a Springfield purchase at Springfield prices. Nothing about the Tri-Lug changes the magazine situation.

For a suppressed 9mm build the three-lug muzzle is a genuine upgrade, and it is free relative to the standard SKU. For a gun that will never be suppressed the standard SKU is the safer buy, because its 1/2x28 muzzle is the pitch every 9mm brake, comp, and flash hider is cut for. Pick the SKU that matches what the gun will actually do. You can lay either configuration out with optics, lights, and a brace in our rifle builder, and the 9mm suppressor rankings sort the current field by sound reduction, weight, and mount ecosystem.

Springfield is shipping a dedicated suppressor-mount SKU into the cheapest suppressor market in the National Firearms Act's history. The federal making and transfer tax on suppressors went to zero effective January 1, 2026, which removed the single line item that made people hesitate. Registration, the Form 4, and the background check all still exist for most buyers; the tax is what went away.

Approval times collapsed alongside the tax, and current eForm 4 averages and dealer medians are tracked on our suppressor wait time tracker. The numbers move week to week and differ sharply between individual and trust filings, so the tracker is a better answer than any figure quoted in an article. State law is the constraint that has not moved: a handful of states still prohibit civilian suppressor possession outright, and that is unaffected by anything at the federal level.

If this is your first can, the process end of it is covered in our suppressor buying walkthrough.
