USSOCOM HICAR: 600m 5.56 Carbine on Standard M4A1 Lowers
NSWC Crane wants an 11-12 inch 5.56 upper that bolts to existing M4A1 lowers, eats M855A1+ at 82,000 psi, and stretches effective range to 600 meters. White papers are due June 8, 2026. Live-fire Pitch Days run September 15-16 at Fort Moore.
Key Takeaways

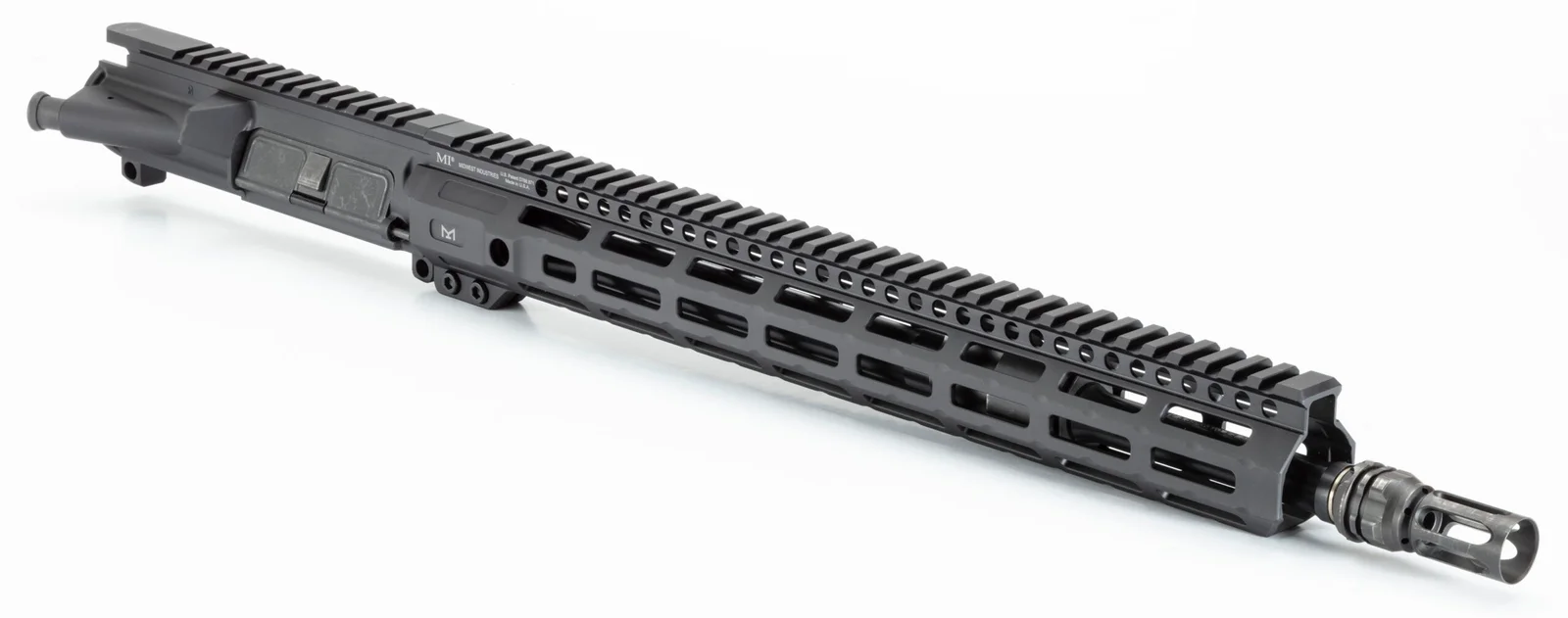

- Upper-only swap. M4A1 lowers, mags, and training stay; the upper receiver group changes.

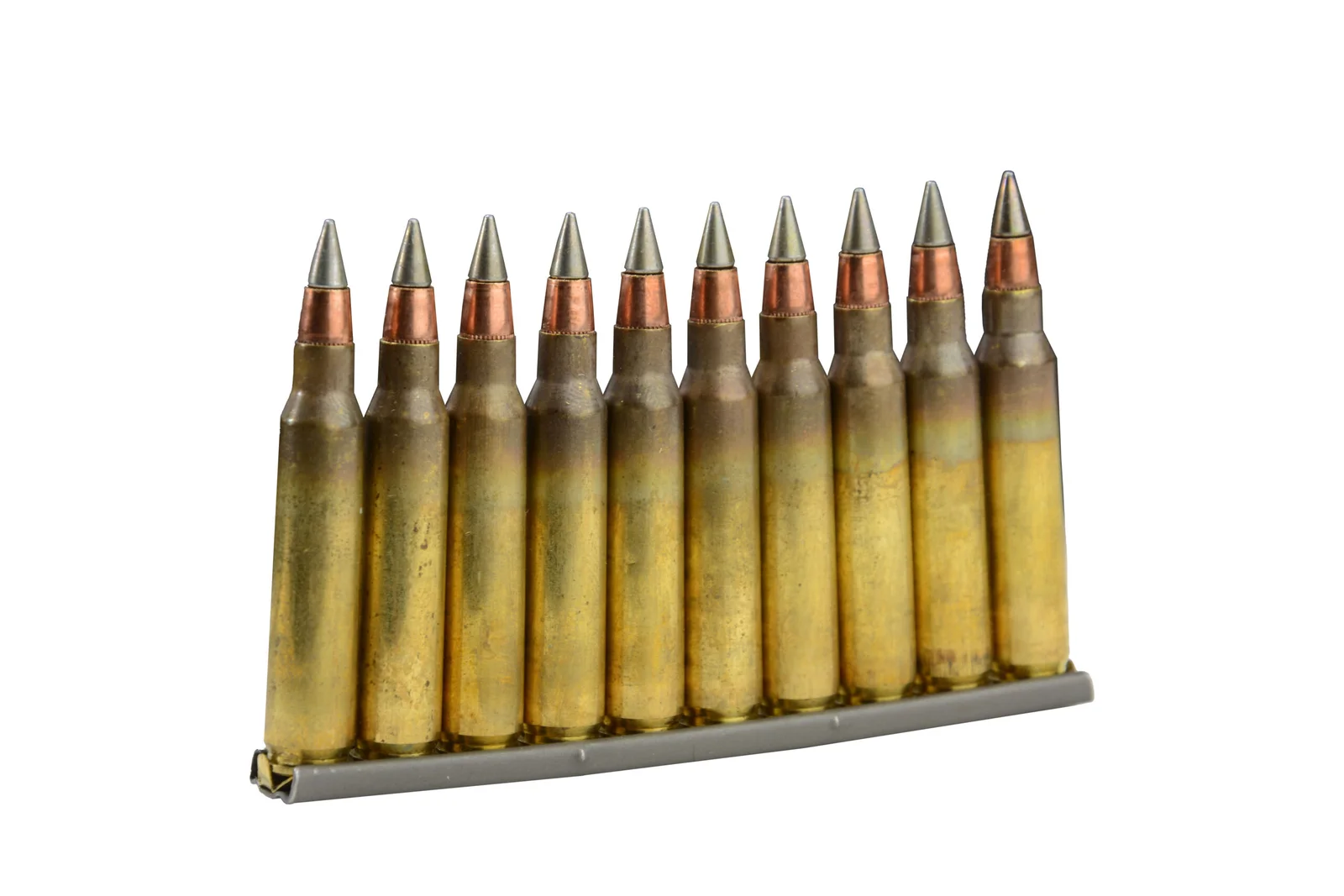

- Must run legacy M855A1 and Mk262 alongside government-furnished M855A1+ at 82,000 psi, roughly 30% over standard NATO chamber pressure.
- 11-12 inch barrel, 8 lb unloaded weight cap (6.5 lb objective), and recoil impulse held below Mk17 7.62 NATO.
- 1 MOA average mean radius unsuppressed at threshold, 0.5 MOA objective. Barrel life: 8,000 rounds on M855A1+ minimum.
- White papers due June 8, 2026. Live-fire Pitch Days September 15-16 at Fort Moore Parks Range.

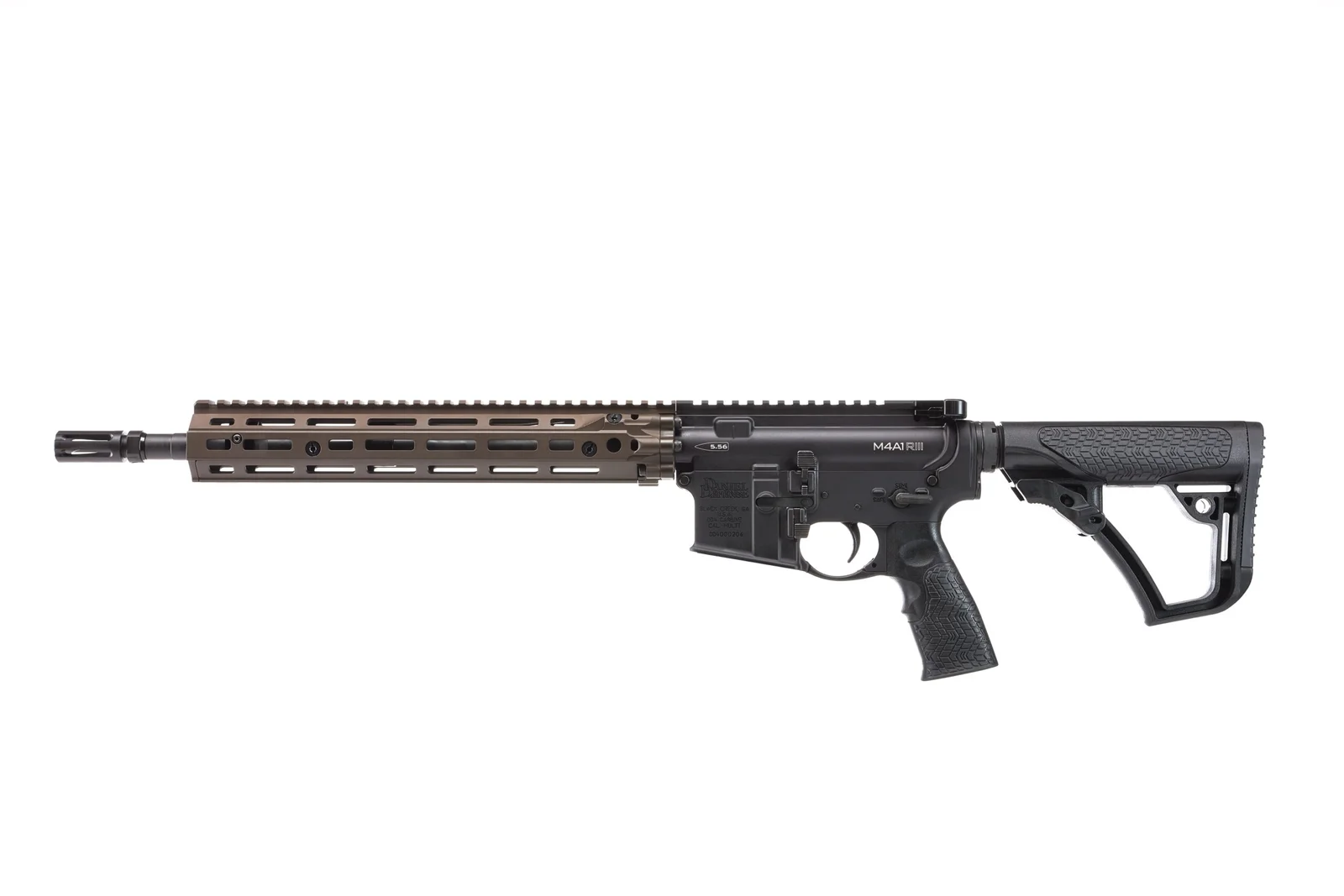

Daniel Defense M4A1 RIII
Civilian URG-I lineage rifle closest to what SOCOM already fields
DD's literal M4A1 product. 14.5" CHF barrel with pinned and welded flash suppressor (16.0" overall), RIS III M-LOK free-float, fully ambidextrous lower. Same RIS-III rail and barrel profile DD developed for the U.S. SOCOM URG-I program.
- +DD's actual SOCOM URG-I-spec barrel profile and RIS III rail
- +Fully ambidextrous lower is rare at any price point
- +Mid-length gas system on a 14.5" CHF barrel is the proven duty configuration
- −$2,651 MSRP is a $500+ premium over the DDM4 V7 with similar barrel and rail quality
- −Pinned and welded flash suppressor rules out muzzle device swaps and most suppressor mounts
- −Heavier than the V7 due to the RIS III rail's 6-bolt bolt-up system
Affiliate links (?)
What HICAR Is Trying to Fix
SOCOM's current URG-I sits on top of the M4A1 lower and was engineered around standard-pressure 5.56 NATO. It is honest out to about 300 meters and runs out of energy past that. The solicitation language reads like an operator after-action: peer adversaries are engaging at distances where conventional 5.56 stops being decisive, and the M4A1 fleet needs a longer reach without giving up its magazines, optics mounts, training pipeline, or lower spare pool.
The 82 kpsi load is what makes this a new program instead of a URG-I refresh. M855A1+ runs roughly 30% over the SAAMI 5.56 NATO ceiling, which rewrites the wear model for bolts, barrel extensions, gas keys, and tuning. USSOCOM is treating durability under elevated chamber pressure as a threshold requirement, not a stretch goal, so any winning upper has to solve the metallurgy and gas problem before it solves the ballistics one.
Threshold and Objective Requirements
Threshold is the minimum acceptable spec. Objective is what USSOCOM wants if industry can deliver it. Numbers pulled from NSWC Crane's Area of Interest N0016426SCA004 and cross-checked against The Firearm Blog and Soldier Systems Daily.
| Requirement | Threshold | Objective |
|---|---|---|
| Barrel length | 11-12 in (muzzle to bolt face) | Same |
| Weight (no suppressor) | 8 lb max | 6.5 lb |
| Overall length | 31 in max | 28 in |
| Accuracy (avg mean radius) | 1 MOA unsuppressed | 0.5 MOA |
| MRBS (stoppages) | 800 rounds | 1,600 rounds |
| MRBF (failures) | 5,000 rounds | 10,000 rounds |
| Barrel life (M855A1+) | 8,000 rounds | 20,000 rounds |
| Trigger pull | Under 5 lb | Under 3 lb |
| Chamber pressure rating | 82 kpsi M855A1+ | Future HV loads |
| Submersion | 3 ft / 2 hr, fire in 30 sec | Fire in 10 sec |
Other non-negotiables: continuous 16-inch 12 o'clock Picatinny rail, M-LOK at seven radial positions, fenced magazine and bolt releases, Gen3 PMAG compatibility, full VASWA accessory interoperability, and a recoil impulse held below the Mk17 7.62 NATO reference so night-vision setups stay zeroed shot to shot. Operating envelope is -40 to 165 degrees Fahrenheit.
Timeline and How Vendors Compete
Procurement runs under Other Transaction Authority tied to NSWC Crane CSO N0016425SC0001. The schedule is short:
- May 18, 2026: AOI posted (N0016426SCA004).
- June 8, 2026: White papers due, 5:00 p.m. EDT.
- June 29, 2026: Down-select to vendors invited to a government ammunition briefing. M855A1+ samples are not released before this point.
- September 15-16, 2026: Pitch Days at Fort Moore Parks Range. One-on-one demos with government-furnished ammunition; vendors fire their own uppers.
Follow-on production language is written into the solicitation, so a prototype winner has a defined path to a larger award. USSOCOM will accept Technology Readiness Level 6 proposals, meaning laboratory-demonstrated hardware is eligible, but live-fire proof on the specified ammo at Parks Range remains the gate. The June 29 invite list is the real signal: it will narrow the field to the handful of vendors that have actually engineered for hypervelocity 5.56 pressure.
What This Means for Civilian AR Builders
HICAR is not a consumer launch. There is no civilian SKU, price, or ship date in the May 2026 paperwork. The useful read for builders is technical. Standard BCGs, barrel extensions, and gas systems are tuned for 55,000-62,000 psi NATO chamber pressure. 82 kpsi accelerates bolt-lug peening, gas-port erosion, and barrel-extension wear in ways most commercial AR hardware was never engineered to survive. The vendors who win this program will have solved that with reinforced BCG architecture, progressive-twist or composite-wrapped barrels, or adjustable piston systems, and those answers eventually filter down into commercial uppers the same way URG-I geometry filtered into Daniel Defense's RIS III line.

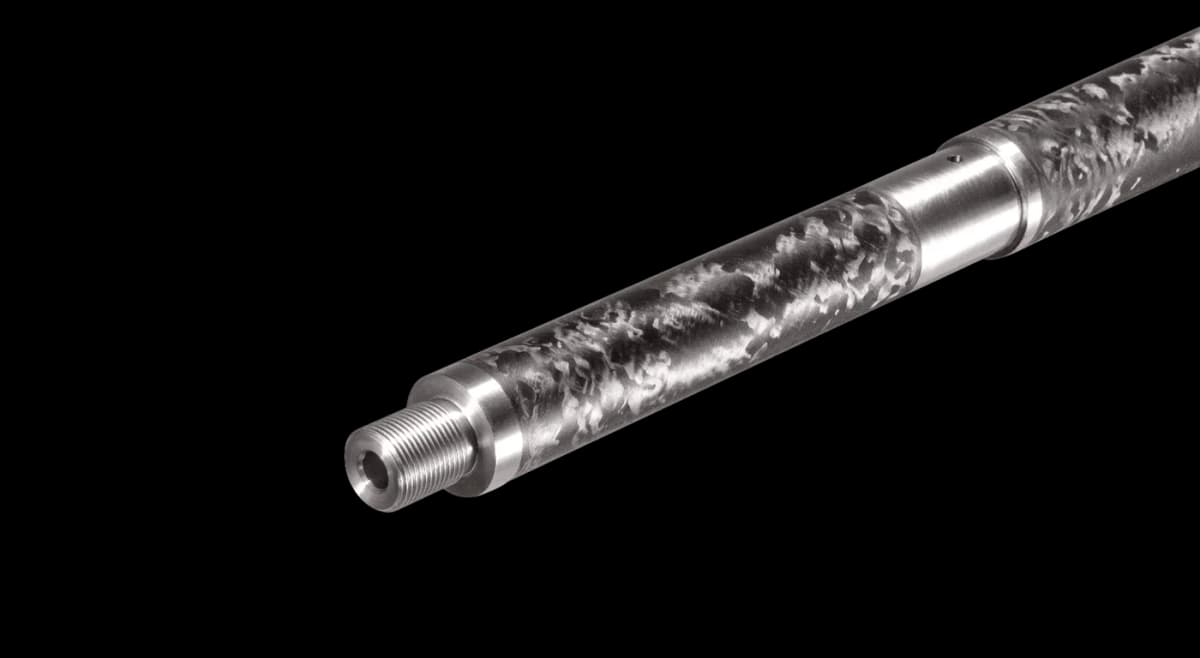

PROOF Research has already publicly tied its new PXT exponential-twist barrels to HICAR testing, a tell on which material-science bets industry is making for high-pressure 5.56. For barrel selection on a build you can actually assemble today, start with the barrel length guide and the gas system and buffer tuning guide, then spec the host in the rifle builder or run heads-up specs in the compare tool.
Current SOCOM-Lineage AR Starting Points
Pre-configured 5.56 builds using URG-I and Recce platforms in the catalog today.
Block 2 IAR
Sustained fire from a magazine-fed AR-15
- EOTech EXPS3 + G33 magnifier for 1x/3x
- Partisan Disruptor FRT for sustained fire
Precision DMR
Reach out and touch targets at distance
- 18" or longer barrel for velocity
- 1-6x or 1-8x LPVO for versatility
Suppressed Home Defense
Hearing-safe home protection
- Suppressor for hearing protection
- Compact platform for indoor use
5.56 Suppressors for Short-Barrel AR Builds
Affiliate links (?)
Stay Updated on SOCOM Small Arms
Get notified when we cover HICAR Pitch Day results, hypervelocity ammo fielding, and the civilian parts that spin out of the program.
Bottom Line
HICAR is USSOCOM's bet that 5.56 can still earn its place past 300 meters if industry solves pressure, barrel life, and suppressor gas management at the same time. The May 2026 posting is early. There are no prototype photos, no down-select, and no fielding date. The June 29 invite list is the moment worth watching: that handful of vendors will define high-pressure 5.56 hardware for the next decade, and the engineering that survives Parks Range will surface in commercial uppers and barrels long before any HICAR rifle reaches a unit.
Full solicitation: SAM.gov N0016426SCA004
