Daniel Defense

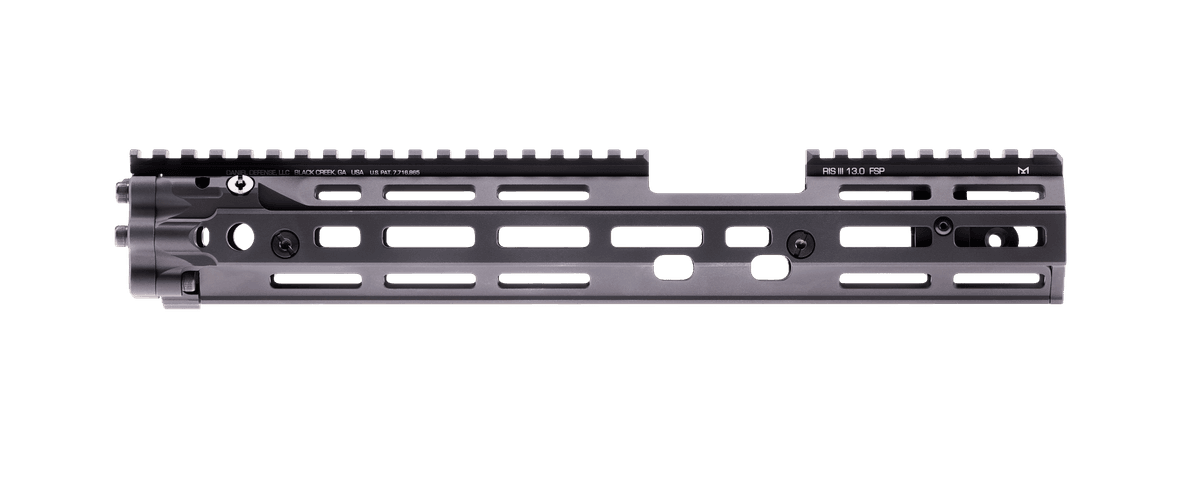

Daniel Defense RIS III 13" FSP
12.96 in RIS III cut for the fixed front sight post, the M-LOK path for M4A1-style clone uppers
Quick Specs
- Price
- $582
- Weight
- 1 lb 0.4 oz
- Brand
- Daniel Defense
- Category
- handguard
Features
- •M-LOK, 7 positions
- •12.96" length
- •Fixed front sight post configuration
- •16.38 oz
- •6-bolt bolt-up system
Capability Boosts
Recommended For
Compatibility Tags
Overview
FSP in Daniel Defense's naming is the fixed front sight post configuration, and that is the whole reason this version of the RIS III exists. Builders working an M4A1 or SOPMOD Block II style upper that keeps its front sight base need a rail sized around that assembly instead of one that assumes a low-profile gas block. This is the M-LOK answer to the M4A1 FSP RIS II.
Everything else follows the RIS III pattern. The rail measures 12.96", weighs 16.38 oz, and is machined from 6061-T6 aluminum with a free-float barrel design. Seven M-LOK positions run along the handguard, integral QD swivel attachment points sit on both sides, and the mil-spec 1913 top rail is uninterrupted across the full length. Daniel Defense lists carbine gas system compatibility for this configuration.
Mounting is the patented six-bolt bolt-up system with a steel barrel nut and Grade 8 fasteners, backward compatible with RIS II hardware down to the same barrel nut and bolt-up plate. Daniel Defense notes that M203 hangers interfere with pinned and welded muzzle devices, and recommends a gunsmith install the rail on any firearm or upper receiver group that has one.
Key Features
- Fixed front sight post configuration for M4A1-style uppers
- Seven M-LOK attachment positions along the handguard
- Uninterrupted mil-spec 1913 Picatinny top rail
- Aircraft-grade 6061-T6 aluminum construction
- Patented 6-bolt bolt-up system with steel barrel nut
- Grade 8 military specification fasteners
- Integral QD swivel attachment points on both sides
- Backward compatible with the RIS II bolt-up system
Pros
- +The M-LOK rail for builds that keep the fixed front sight base
- +Same 6-bolt bolt-up interface as the RIS II, so the barrel nut carries over
- +Continuous top rail for night vision and clip-on optics
- +Integral QD sling points on both sides
- +Seven M-LOK positions replace the quad rail's Picatinny sides and bottom
Cons
- −$582 is well above most M-LOK rails of this length
- −Only useful on uppers that retain the fixed front sight base
- −Bolt-up installation needs the barrel nut wrench, not a drop-in job
- −Daniel Defense recommends a gunsmith for installation over a pinned and welded muzzle device
Detailed Specifications
- Material
- Aircraft-grade 6061-T6 aluminum
- Finish
- Black
- Length
- 12.96 inches
- weight
- 16.38 oz
- width
- 1.95 inches
- height
- 2.16 inches
- Inner Diameter
- 1.34 inches
- mountingSystem
- Patented 6-bolt bolt-up system with steel barrel nut
- Rail Type
- M-LOK sides and bottom, continuous 1913 Picatinny top rail
- gasSystemCompatibility
- Carbine length
- configuration
- FSP (fixed front sight post)
- slingMounts
- Integral QD swivel attachment points, both sides
- sku
- 01-004-02383-006
