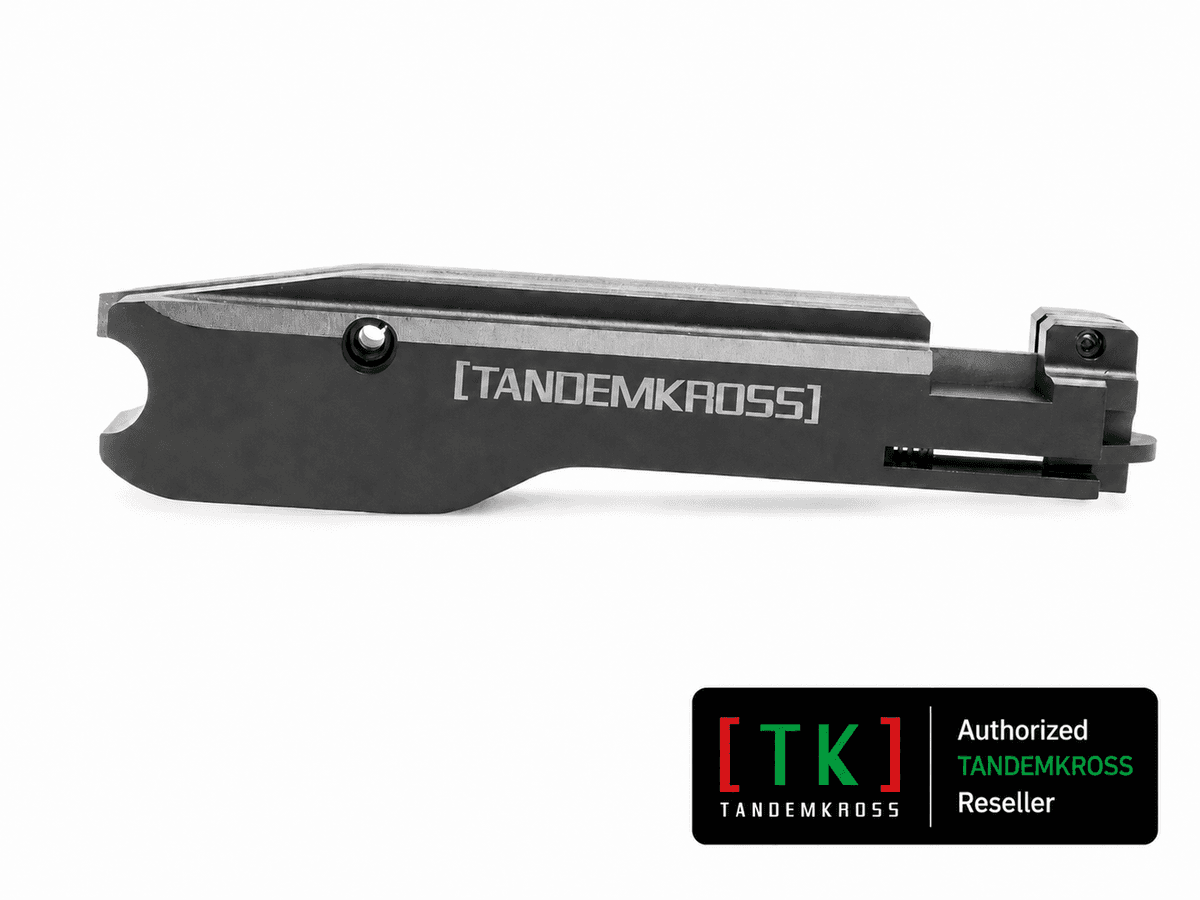

TANDEMKROSS KrossFire Bolt (Ruger 10/22)

CNC-machined heat-treated billet steel 10/22 bolt with a PVD finish, correct headspace from the factory, and a titanium firing pin and tool steel extractor pre-installed.

No image available

Quick Specs

Price
$165
Weight
N/A
Brand
TANDEMKROSS
Category
lower-part

Features

  • Ruger 10/22 / 22 Charger
  • Heat-treated billet steel, black PVD
  • Fire Starter titanium firing pin installed
  • Eagle's Talon tool steel extractor installed
  • Lateral firing pin retaining pin
  • Radiused rear face

Capability Boosts

Reliability+3
Long Range+1

Recommended For

Outdoor Defense+4
Hunting+4
hunting sidearm+4
small game+4
Home Defense+3
Duty/Patrol+3

+16 more

Compatibility Tags

family: rimfireplatform: ruger-10-22platform: ruger-10-22-takedownplatform: ruger-10-22-compactplatform: ruger-22-charger

Overview

Serious 10/22 shooters have been sending bolts out for rework for decades. The three jobs are always the same: correct the headspace, radius the rear face so hammer contact is smooth, and stop the firing pin from floating vertically in its channel. The KrossFire is a bolt that ships with all three already done.

TANDEMKROSS machines it from heat-treated billet steel and cuts the headspace to the figures a gunsmith would target, so no additional work is needed out of the box. A lateral retaining pin holds the firing pin so it only travels forward and back, which is what produces consistent primer strikes on rimfire cases where ignition is already the weak link. The rear face is carefully radiused, and the practical effect is a lighter, smoother charging stroke and less battering of the hammer face.

The bolt arrives with two TANDEMKROSS parts pre-installed. The Fire Starter titanium firing pin is lighter than steel, which shortens lock time and helps on fast strings. The Eagle's Talon hardened tool steel extractor replaces the stamped factory part that causes most 10/22 stovepipes. A black PVD coating protects the whole assembly. If you were planning to buy the extractor and the firing pin separately and then pay for a headspace job, the KrossFire is the cheaper path.

One warranty note: TANDEMKROSS covers the bolt itself for life but covers firing pins, extractors, and springs for two years, which is the standard wear-part distinction.

Key Features

  • CNC machined from heat-treated billet steel
  • Machined to corrected headspace, no gunsmith rework needed
  • Lateral retaining pin prevents vertical firing pin movement
  • Fire Starter titanium firing pin pre-installed
  • Eagle's Talon hardened tool steel extractor pre-installed
  • Radiused rear face for smoother hammer engagement and charging
  • Black PVD protective coating
  • Fits all factory 10/22 and 22 Charger models

Pros

  • +Bundles corrected headspace, a titanium firing pin, and a machined extractor in one part
  • +Consistent primer strikes from the retained firing pin
  • +Cheaper than buying the parts separately and paying for a headspace job
  • +PVD coating and billet steel hold up to high round counts

Cons

  • Costs more than most complete 10/22 trigger upgrades
  • The bolt body is covered for life but the firing pin and extractor only for two years
  • Only the black PVD configuration is currently listed

Detailed Specifications

platform
Ruger 10/22 (Carbine, Takedown, Takedown LITE, Compact, Tactical, Sporter) / 22 Charger
sku
TK18N0122BLK2
upc
657768135583
Material
Heat-treated billet steel
finish
Black PVD
firingPin
TANDEMKROSS Fire Starter titanium, pre-installed and laterally retained
extractor
TANDEMKROSS Eagle's Talon hardened tool steel, pre-installed
headspace
Machined to corrected dimensions
warranty
Lifetime on the bolt, two years on firing pin, extractor, and springs
countryOfOrigin
USA
