AR-10 Forced Reset Trigger Build: How to Run an FRT in .308

Yes, two ways, and neither is a drop-in. No maker sells a forced reset trigger rated for the AR-10, so the trigger path is a standard AR-15 forced reset trigger installed in a DPMS/LR-308 or SR-25 pattern lower, paired with an M16-profile .308 bolt carrier and a tuned buffer. The other path is a forced reset selector built for .308: the GMR S7 M508 Super Safety is sold for AR-10 and AR308 receiver sets, and it needs the upper receiver trimmed to give its lever clearance.

That makes this a builder's project, not a drop-in upgrade. The trigger fits because of receiver geometry, not because anyone designed it for .308. The reset works only if the bolt carrier has the right profile and the buffer and gas are tuned to the heavier .308 reciprocating mass. Get one of those wrong and the trigger short-strokes or fails to reset. For the full picture on forced reset triggers as a category, including the AR-15 picks and the legal landscape, start with our forced reset trigger buyer's guide. For other caliber FRT build playbooks, our AR9 FRT build guide covers 9mm blowback tuning and our AR22 FRT build guide covers .22LR rimfire. Our FRT compatible guns guide maps every platform with a forced reset path.

DPMS/LR-308 and SR-25 pattern large-frame lowers use the exact same fire-control geometry as an AR-15: standard 0.154-inch small pins and the same trigger and hammer pocket dimensions. A standard AR-15-pattern trigger, including a forced reset trigger built for AR-15, physically drops into these lowers. That is the whole reason this build is possible.

The exception is the original Armalite-pattern AR-10, the pre-SR-25 design, which uses a proprietary lower with different fire-control dimensions. AR-15 triggers and FRTs do not fit it. Scope this build to DPMS/LR-308 and SR-25-pattern lowers that use standard AR fire-control dimensions, such as the Aero M5/M5E1. Treat small-frame .308s and proprietary large-frame rifles as separate compatibility checks before buying anything, and skip the original Armalite AR-10. If you are weighing the AR-10 platform and caliber more broadly, our 6.5 Creedmoor versus .308 guide covers the trade-offs. Forced reset triggers and Super Safety selectors are two different fire-control paths to rapid semi-auto fire; the forced reset and Super Safety guide breaks down how each one works and where they differ. Fire-control geometry is what decides fitment on every host, not caliber: a belt-fed Browning in the same 7.62x51 chambering takes an entirely different trigger parts set, covered in our Browning M1919 FRT guide.

The Partisan Disruptor is the most plausible trigger for this experiment because it is a standard AR-15 forced reset cassette that uses 0.154-inch pins, has a lighter 3.75-4.1 lb pull than the Rare Breed, and includes a true semi-auto mode for normal use. Its maker markets it for AR-15 mil-spec lowers, so large-frame use is off-label. Confirm your lower uses standard AR fire-control dimensions, function-check the trigger before live fire, and pair it with a full-auto-profile carrier. The Rare Breed FRT-15L3 is the original design, but its own maker says the AR-10 is unsupported.

The bolt carrier, not the trigger, is what makes or breaks this build. A forced reset trigger relies on the carrier's full-auto (M16) underside to mechanically push the trigger back into reset on every cycle. A semi-auto or AR-15-cut .308 carrier has that surface relieved and will not reset the FRT reliably. An M16-profile .308 carrier is the non-negotiable gating component.

The pick is the Aero Precision .308 BCG (APRH308186C): 8620 steel carrier, 9310 steel bolt, properly staked gas key, black nitride finish. Aero lists it for its M5 platform and AR .308-style uppers (the DPMS/LR-308 pattern). Before you order, confirm with the seller that it has the full M16 rear profile, and check it against your exact upper and barrel extension, since large-frame carrier fit varies by maker. Black nitride runs cleaner and harder than phosphate, which matters on a carrier cycling fast under an FRT.

Establish a baseline before you touch anything else: set the gas block to a known starting point and confirm the bolt locks back on an empty magazine, so you know the rifle cycles reliably first. Only then add buffer weight until the FRT resets clean instead of bouncing, and bleed gas back down last, once buffer mass is set. Tuning both variables at once leaves you chasing a ghost. A .308 carrier is heavier than a 5.56 carrier and an FRT needs consistent reset timing, so both reciprocating mass and gas have to be dialed in. Too little buffer weight or too much gas causes the trigger to short-stroke or bounce instead of resetting cleanly, and overgas is the most common cause of FRT short-stroking. That is why this build uses an adjustable buffer to add mass plus an adjustable gas block to cut excess gas.

The ODIN Works AR-10 Adjustable Buffer (OS-ABS-AR10) tunes from 3.45 to 4.65 oz with swappable aluminum, stainless, and tungsten weights, so you dial reset timing without buying a stack of fixed buffers. Pair it with the ODIN adjustable gas block to bleed off overgas, but confirm your barrel's gas block journal diameter before ordering: the ODIN block is .750 inch only. Sixteen-inch carbine-profile .308 barrels are usually .750 inch, but heavier LR-308 profiles over 18 inches and some mid-length .308 barrels use a .936 inch journal and need a different block. In a standard carbine tube, do not borrow an AR-15 H2 or H3: a DPMS-pattern .308 carbine there runs a short .308 carbine buffer (Aero's is 2.5 inches and 3.8 oz), and a 3.25-inch AR-15 buffer stops the longer .308 carrier short. The ODIN's 3.45 to 4.65 oz range brackets that factory weight, so you add mass from a known baseline. For the underlying method, our gas system and buffer tuning guide walks through reading the brass and balancing the system, and our AR-15 FRT tuning guide covers the same carrier, buffer, and spring work on a 5.56 host.

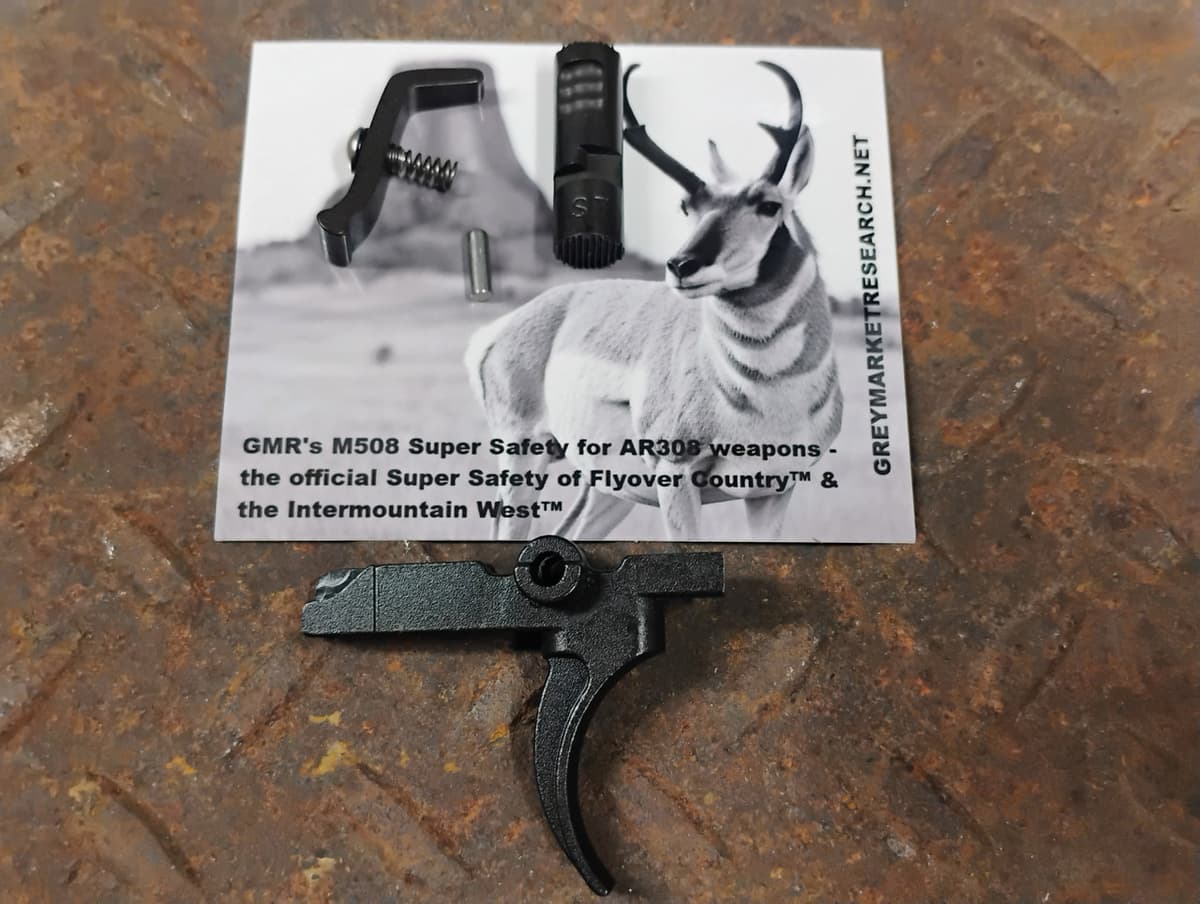

A Super Safety is a selector, not a trigger: it replaces the safety selector and runs with a compatible trigger, which GMR sells as an option. The GMR S7 M508 is a Super Safety sold for AR-10s, AR308s, and other guns built on an AR308 receiver set. It pairs a heat-treated S7 tool steel checkered cam with the S7 steel M508 lever and a stainless machine-cut detent. It is not a drop-in. GMR requires the upper receiver to be trimmed flush with the rear takedown lug, and it specifies a bolt carrier whose lower rear section measures about 2.20 inches, warning that a carrier around 2.40 inches can damage or break the lever, so measure your carrier before you order. It does not fit small-frame .308s such as the Ruger SFAR, DPMS Gen 2, or POF Revolution, and GMR does not accept returns on modified parts.

This build needs a DPMS/LR-308 or SR-25 pattern lower, because those large-frame lowers carry the standard AR-15 fire-control geometry the FRT depends on. The Aero M5/M5E1 16-inch .308 build path is the reference host: standard 0.154-inch pins so the FRT fits, a 16-inch barrel so the rifle stays a standard rifle, and an SR-25 mag well. A 16-inch barrel, measured at the barrel and counting any permanently attached muzzle device, keeps the build a standard rifle with no NFA paperwork. The FRT itself is not an NFA item.

The large-frame parts ecosystem around the M5 makes it the easiest host to source bolt carriers, buffers, and handguards for. You can spec the whole rifle, then layer in the FRT build parts, in our rifle builder.

Buy SR-25 / DPMS-pattern magazines in fives, because an FRT eats ammo fast and consistent feeding is half of reliable reset. The Magpul PMAG 25 LR/SR is the default at $22.45, the PMAG 20 LR/SR runs lower for prone work, and the Lancer L7AWM is the premium choice with steel feed lips. All three are large-frame SR-25 pattern and will not fit an AR-15 mag well.

The May 2025 DOJ settlement and the related court order cover eligible Rare Breed FRT-15 and WOT devices; they are not a device-specific federal approval of other makers' designs, such as the Partisan Disruptor or the GMR selector. A forced reset trigger fires one round per function of the trigger, which is why they sell as ordinary parts rather than registered NFA items, and an AR-10 is a rifle, outside the settlement's grip-fed handgun carve-out. That is the federal picture only. State and local law varies, can change, and several states restrict or ban FRTs; verify current law for your jurisdiction before buying.

No manufacturer warranties this configuration. Rare Breed states the AR-10 platform is not supported, and Partisan/Triggered Company markets the Disruptor for AR-15 mil-spec lowers only. Running an FRT in an AR-10 is off-label and at your own risk. A forced reset trigger that resets incorrectly or fires out of battery is a serious safety problem, so confirm safe, consistent function before any live fire, keep the muzzle pointed in a safe direction, and treat the first range session as a function test.
