Best AK Scope Mounts & Optics: Red Dots, Prisms & Rails
A standard AKM with a factory side rail takes the RS Regulate AK-301M lower plus the AKML upper, which mounts a Holosun HS403B or an Aimpoint Micro T-2 centered over the bore. That is the answer for most AKs, and it is only an answer because of the receiver it was built for. The AK has three optic-mounting interfaces, not one: a side rail, a top cover that gets replaced outright, and a gas tube that gets swapped for a rail. A listed full-size Yugo with a factory side rail takes the AK-307MS instead; a WASR-10, KR-103, or standard Draco takes the TWS Dog Leg 33310-X top cover. The best AK scope mount is the one built for the rifle in your hands, and the mount parts for each interface and four sights are ranked below.
Key Takeaways
- →Three interfaces, not one: a side rail lets the mount come off, a railed top cover buys receiver-length space, and a gas-tube rail puts a small dot low and forward.
- →Side-rail fit splits by receiver: the 2.88-ounce RS Regulate AK-301M is the front-biased lower for a standard AKM side rail. A listed full-size Yugo or Serbian rifle with a factory side rail takes the full-length AK-307MS. Both still need a footprint-specific upper.
- →Best value 1x optic: the 2 MOA Holosun HS403B at $205.87, with a low mount in the box and a 50,000-hour rated battery.
- →Dog Leg SKUs follow the model, not the pattern: 33310-X fits hosts such as the WASR-10, KR-103, and standard Draco. Fixed-stock PSA GF3/GF4/GF5 rifles use 33317, listed full-size Yugo rifles use 33312, and the Micro Draco is excluded.
- →Best 3x for 7.62x39: Primary Arms MPN 710040 and its etched ACSS Raptor reticle for 7.62x39 and .300 Blackout. The hold marks track the load and zero it was drawn around.
Best AK Optics
Four sights ranked by the job they do after the rifle and mount interface are settled.

Holosun HS403B
Best value 1x red dot for a low AK mount
- +The included low mount suits the AK's lower sight line better than a typical AR-height pedestal
- +A 2 MOA dot and 50,000-hour rated battery cover general-purpose rifle use
- +Shake Awake restores the last brightness setting when the rifle moves
- −The single 2 MOA dot offers no circle-dot or multi-reticle choice
- −There is no solar backup; Shake Awake and the CR2032 are the whole power system

Aimpoint Micro T-2 with Picatinny Mount
Best premium micro red dot for hard use
- +The compact 3.3-ounce sight body adds little weight above an AK mount
- +A 50,000-hour rated battery supports an always-on setup
- +The sealed tube, night-vision settings, and 25-meter submersion rating suit hard field use
- −Premium cost is far above the other 1x optics in this set
- −It has no motion activation, so the user must leave it on or operate it manually

Holosun AEMS Core X2
Best enclosed optic with a large viewing window
- +The enclosed emitter stays protected from rain, dust, and debris
- +Its 1.1-by-0.87-inch window gives a wider sight picture than a 20mm micro tube
- +Shake Awake and a 50,000-hour rated battery support an always-ready rifle
- −The included 1.63-inch pedestal can sit too high for a traditional AK stock comb
- −The proprietary AEMS footprint has fewer low-mount choices than the Aimpoint Micro pattern

Primary Arms SLx 3x MicroPrism ACSS Raptor 7.62x39/.300 BLK
Best fixed 3x prism for a 7.62x39 AK with a Picatinny rail
- +The etched reticle remains visible without illumination
- +A 7.95-ounce, 2.95-inch body delivers fixed magnification without LPVO bulk
- +Included hardware supports several mounting heights
- −The BDC still depends on the maker's stated load, velocity, and zero assumptions
- −Fixed 3x is less forgiving than a true 1x optic at close range
Affiliate links - purchases support this site at no extra cost to you. (?)
AK Scope Mount Fit: Side Rail, Top Cover, or Gas Tube
A standard AKM with a factory side rail takes the RS Regulate AK-301M, a 2.88-ounce front-biased lower at $145.99. Front-biased means it positions a compact optic without covering the full receiver. It is also half a mount: nothing sits on it until you add an upper RS lists as compatible, and RS excludes the AKR and AKOG uppers from this lower. VEPR and FIME Vepr-FM rifles with a factory folding stock are outside it as well.
A listed full-size Yugo or Serbian rifle needs a Yugo-specific lower; the AKM part does not serve it. The full-length RS Regulate AK-307MS at $124 covers listed PAP, ZPAP, M70, and M77 rifles, weighs 3.37 ounces, and uses the same RS upper interface. RS builds shorter Yugo lowers too, so full length is a placement choice rather than the only Yugo option. The rail-less Zastava M85 and M92 are outside it.
Either RS lower finishes with the AKML upper at $93.99 when the sight is Aimpoint Micro pattern. It weighs 0.88 ounce, fits Aimpoint Micro optics and listed clones with a removable base, and its adjustable placement lets you center the dot over the bore. That covers the HS403B and the Micro T-2 ranked above. The AEMS and the SLx prism do not use that footprint; they take the AKR Picatinny upper instead.
The AKR at $93.99 is a 0 MOA 1913 rail that weighs 2.37 ounces and stakes to the lower with a roll pin. RS says not to use it on the front-biased AK-301M, so a Picatinny-base optic goes on the rear-biased AK-302M at $151.99 or the full-length AK-303M at $147.99. Both fit the same AKM-pattern side rails RS lists for the AK-301M, from WASR-10 and Saiga to PSA GF3 and GF5 rifles, and both exclude VEPR and FIME Vepr-FM rifles with a factory folding stock. The 303M gives the upper the most fore-aft range.
The Midwest Industries MI-AKSM at $125.95 is the one-piece answer for the same AKM side rail. It carries its own 6.75-inch T-marked 1913 rail, so a Picatinny-based optic such as the AEMS or the SLx prism bolts straight on with no upper to match. The trade is weight: 7.3 ounces against under 4 ounces for an RS lower and AKML upper together. Yugo and Serbian receivers take the separate MI-AKSM-Y.
Midwest's Gen 2 side mount at $167.95 splits the same idea into a QD base and a swappable top, so one base moves from a Picatinny dot to a T2 or a rear-bias top when the optic changes. It weighs 7.4 ounces. The AK Master Mount line takes a different approach to the clamp, a recessed QD lever with a two-spring clamp bar, and its tops accept both Picatinny and ACOG bases. The rear-bias version at $140 carries a 1.75-inch rail for a red dot; the full-length version at $160 runs 7.25 inches for a dot plus magnifier. Neither AKM version fits a Yugo rail, and Yugo owners get a dedicated full-length mount at $160.
The Arsenal SM-23 at $169.99 replaced the SM-13 and is the long-rail one-piece choice: 19 Picatinny slots over more than 7.5 inches, a steel tension-adjustable quick release, and Arsenal fitment for VEPR rifles and RPKs, which the RS AKM lowers exclude. The UTG Accu-Sync at $89.99 gives a 16-slot top and a tool-free QR lever at 5.4 ounces; Leapers notes that how well it centers over the receiver varies by rifle.

RS Regulate AK-301M Front Biased Lower Side Mount
- AKM side-rail lower
- 2.88 oz
- Front biased
- Separate upper required

RS Regulate AK-302M Rear Biased Lower
- SKU AK-302M
- AKM side-rail lower
- 2.88 oz
- Rear biased

RS Regulate AK-303M Full Length Lower
- SKU AK-303M
- AKM side-rail lower
- 3.50 oz
- Full length

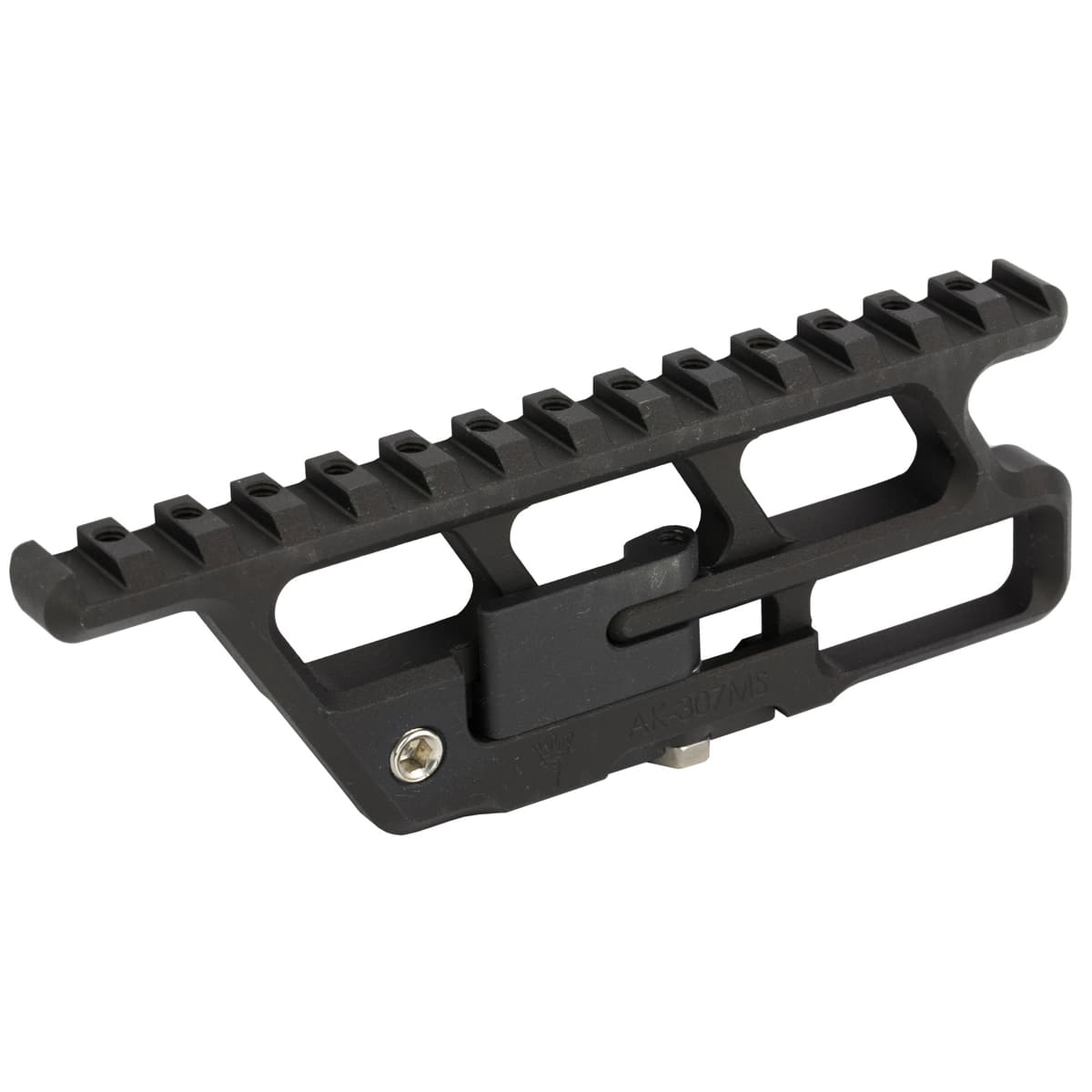

RS Regulate AK-307MS Full-Length Yugo Lower
- Yugo/Serbian side-rail lower
- 3.37 oz
- Full length
- Separate upper required

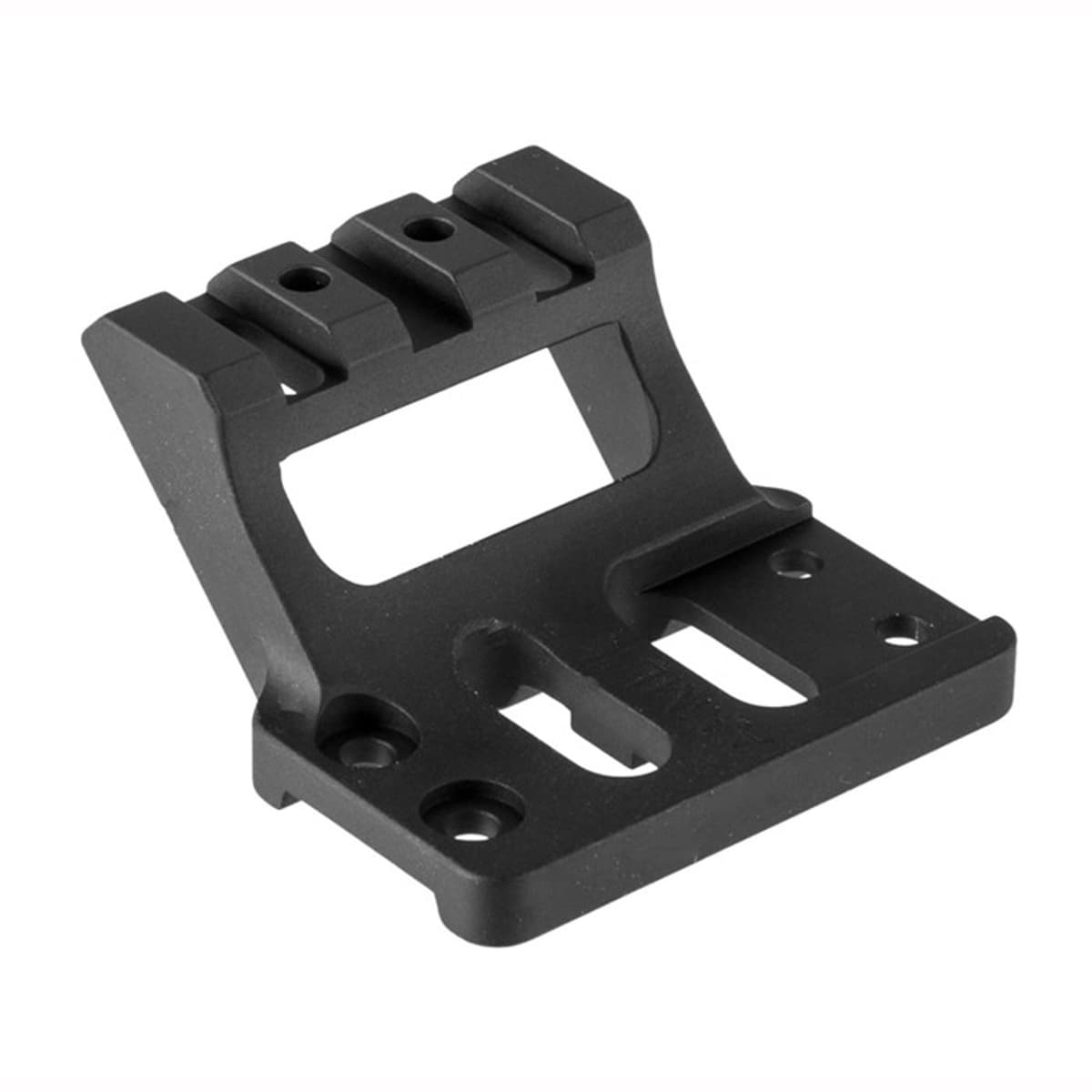

RS Regulate AKML Aimpoint Micro Upper
- SKU AKML
- Aimpoint Micro pattern
- 0.88 oz
- Separate RS lower required

RS Regulate AKR 1913 Railed Upper
- SKU AKR
- 1913 Picatinny
- 2.37 oz
- Separate RS lower required

Midwest Industries MI-AKSM AK Side Railed Scope Mount
- SKU MI-AKSM
- 6.75-inch 1913 rail
- 7.3 oz
- No separate upper required

Midwest Industries Gen 2 AK Side Mount, Picatinny Top
- SKU MI-AKSMG2-R
- Modular top
- 7.4 oz
- Standard AKM side rail

AK Master Mount Optic Mount AKM Rear Bias
- SKU AKMM-OMRB
- 1.75-inch rail
- Dual Axis Locking QD
- Standard AKM side rail

AK Master Mount Optic Mount AKM Full Length Rail
- SKU AKMM-OMFL
- 7.25-inch rail
- 6.6 oz
- Standard AKM side rail

AK Master Mount Optic Mount Yugo Full Length
- SKU AKMM-OMYV
- Yugo side rail
- 6.5-inch rail
- 7.1 oz

Arsenal SM-23 Scope Mount
- SKU SM-23
- 19-slot rail
- One-piece aluminum
- Replaces the SM-13

UTG Accu-Sync AK QR Side Mount
- SKU MT-UAK01
- 16-slot rail
- 5.4 oz
- Tool-free QR
Affiliate links - purchases support this site at no extra cost to you. (?)
AK Railed Top Covers: Receiver-Length Rail Over the Bore
Receiver-length Picatinny comes from the top cover. TWS Dog Leg 33310-X at $175.75 replaces the factory cover on the models TWS lists for it, and the common catalog hosts are the WASR-10, KR-103, and standard Romanian Draco. A forward hinge keeps the cover attached through a field strip and a rear cam lock holds it down, which is the whole difference between a rail and a stamped lid that moves. TWS lists the Micro Draco as incompatible. Some other 33310-X hosts need alternate guide-wire hardware, so read the full model and stock layout rather than the silhouette.
Fixed-stock PSA GF3, GF4, and GF5 rifles use TWS 33317 at $175.75, and folding-stock PSA rifles use 33310-X. Two PSA AKs can look identical from ten feet and take different covers. The stock layout decides it.
Full-size Yugo rifles assigned to it in the TWS matrix use 33312 at $175.75, the dedicated Yugo-pattern version of the same full-length rail. The rail-less Zastava M85 and M92 pistols, including the Z-PAP 85 and Z-PAP 92, take their own 33316 at $165.25. It hinges on a pin at the rear sight block in place of the rear leaf sight, and TWS states this model has no quick-detach feature.
Midwest's AK Alpha mounts are the one railed top cover that depends on the handguard. The AK Alpha Railed Top Cover at $279.95 bolts to the MI AK Alpha handguard through two aluminum and two steel struts and seats a steel block in the rear trunnion, so the rail is tied to the rifle at both ends instead of riding on a stamped lid. Midwest lists it for the MI-AK-ALPHA6 and MI-AK-ALPHA10.0 handguards only; no other handguard works. Pick it over a side mount when the rifle already runs the Alpha M-LOK handguard and you want the optic on top of the receiver, centered over the bore with the factory rear sight in a lower 1/3 co-witness. Pick the RS Regulate or MI-AKSM side mount when the handguard is anything else, or when you want a 1x dot that comes off the rifle and leaves the factory irons.
The FAB Defense PDC at $247.40 is the drop-in railed dust cover: a billet 6061-T6 cover with 185 mm of free Picatinny rail, held down by FAB's patented adjustable retention mechanism with no hinge to install and no rear sight to remove. It does not fit Century C39, RAS-47, or VSKA rifles, Yugo patterns, or RPKs.

Texas Weapon Systems Dog Leg Rail Gen 3 AKM
- SKU 33310-X
- WASR-10, KR-103, and standard Draco
- Full Picatinny top rail
- Forward hinge and rear cam lock

Texas Weapon Systems Dog Leg Rail Gen 3 Fixed-Stock PSA
- SKU 33317-X
- Fixed-stock PSAK fit
- Full Picatinny top rail
- 33310-X excluded

Texas Weapon Systems Dog Leg Rail Gen 3 Yugo
- SKU 33312
- Full-size Yugo rifle fit
- Full Picatinny top rail
- AKM SKU excluded

Texas Weapon Systems Dog Leg Rail Gen 3 M85/M92
- SKU 33316
- M85/M92 pistols
- Hinge at rear sight block
- No QD

Midwest Industries AK Alpha Series Railed Top Cover
- SKU MI-AK-ALPHA-RTC
- Alpha handguard required
- Lower 1/3 co-witness
- 9.7 oz

FAB Defense PDC Picatinny Scope-Mount Dust Cover
- SKU FX-PDCAK
- 185 mm rail
- 191 g
- Billet 6061-T6
Affiliate links - purchases support this site at no extra cost to you. (?)
AK Gas-Tube and Forward Optic Mounts
A gas-tube rail puts a micro dot low and forward instead of adding receiver-length rail space. The UltiMAK M1-B replaces the gas tube and upper handguard, and the $99.99 mount gives 16 Picatinny slots across 6.875 inches, clamped to the barrel with steel hardware. Fit follows barrel and gas-tube geometry, not stamped-versus-milled receiver type: the host needs a standard-length, standard-weight AK or AKM barrel and a removable gas tube without side ports. Some 5.45 and 5.56 hosts need the shim hardware UltiMAK specifies. Most regular-length Romanian Draco pistols do not take the M1-B. Old straight-sided AK-47/49-style lower wood, common on some MAK-90 rifles, may need material removed inside for clamp clearance. Short AK pistols start with the AK pistol mounting guide rather than any of these paths.
A host whose original gas tube has side vent holes takes the M2-B at $99.99 instead, the same 16-slot, 6.875-inch rail. UltiMAK names it the mount for Century C39, C39V2, RAS-47, and VSKA rifles, and it can replace an M1-B on any AK that fits either. Yugo M70-series rifles, including the NPAP and OPAP, take the M9 at $99.99, a 7.515-inch rail whose exposed length is limited by the folding grenade sight to a small dot such as an Aimpoint Micro. UltiMAK says these mounts warm with repeated fire but not enough to affect an optic.
Railed gas tubes keep the factory tube's job and add a rail to it. The Midwest MI-AKRGT at $109.95 matches the standard AK tube's internal profile and sets an Aimpoint Micro-class dot in a lower 1/3 co-witness, but it levels with rear screws, takes thread locker on every screw, and cures for four hours; Midwest recommends a gunsmith. The Troy AK47 Top Rail at $170 drops in with a length adjustment, keeps the factory lower handguard, and is the railed tube Troy lists for milled as well as stamped receivers with a standard-length gas tube.
The same Alpha handguard also takes a short forward dot mount that leaves the dust cover alone: the T2 version at $159.95 takes the HS403B or Micro T-2 directly, and the Railed Dot Mount at $159.95 gives a Picatinny-based sight a base. Both attach to the handguard at four points and keep the lower 1/3 co-witness.
The Samson RSR-2 at $130.87 mounts the dot at the rear sight instead: an all-steel replacement for the rear sight leaf cut for the Aimpoint Micro T1/T2 footprint, with a rear notch kept for a co-witness off the front post. It leaves the side rail, dust cover, and gas tube alone, takes the HS403B or Micro T-2 directly, and does not fit Krinkov-style rear sights.

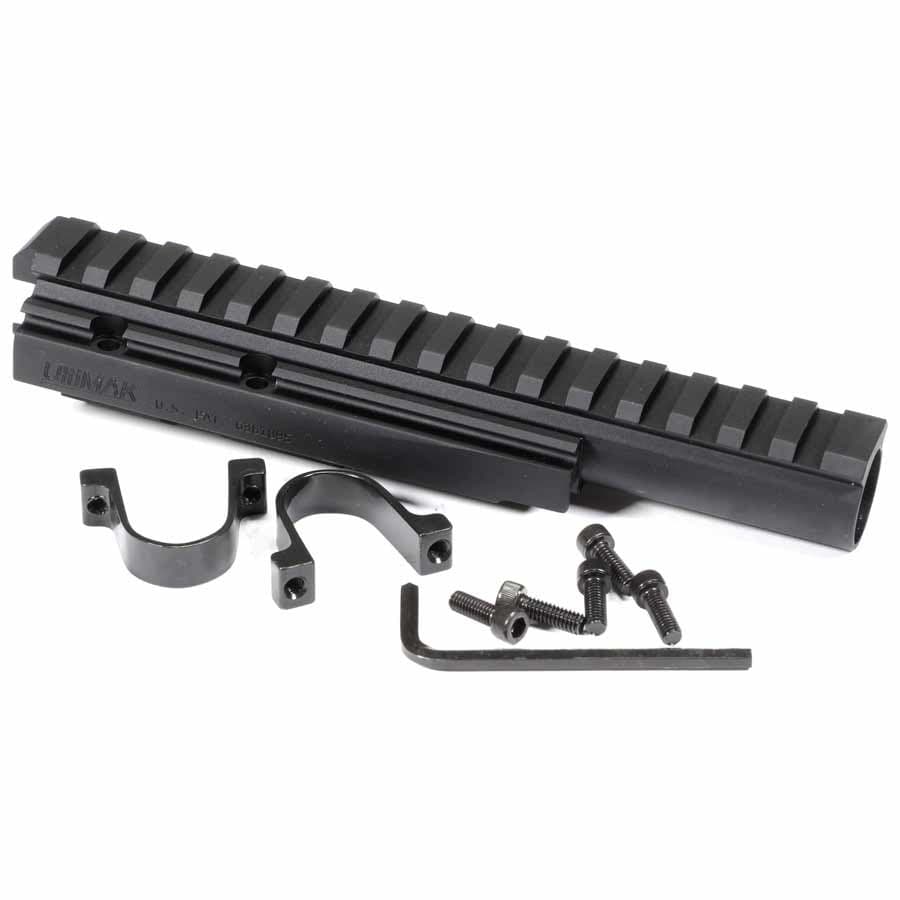

UltiMAK M1-B AK Optic Mount
- SKU M1-B
- 6.875-inch rail
- 16 Picatinny slots
- Barrel and gas-tube fit required

UltiMAK M2-B AK Optic Mount
- SKU M2-B
- Vented gas tubes
- 16 slots
- 6.875-inch rail

UltiMAK M9 Optic Mount for Yugo M70
- SKU M9
- Yugo M70 series
- 16 slots
- 7.515-inch rail

Midwest Industries AK Railed Gas Tube
- SKU MI-AKRGT
- Gas tube replacement
- 5 oz
- Lower 1/3 co-witness

Troy Industries AK47 Top Rail Gas Tube
- SKU SRAI-AK1-T0BT-00
- 5-inch rail
- 0.62 lb
- Stamped and milled

Midwest Industries AK Alpha Series T2 Mount
- SKU MI-AK-ALPHA-T2M
- Aimpoint T2 footprint
- 6.5 oz
- Alpha handguard required

Midwest Industries AK Alpha Series Railed Dot Mount
- SKU MI-AK-ALPHA-RDM
- Picatinny interface
- 6.6 oz
- Alpha handguard required

Samson Manufacturing RSR-2 AK Rear Sight Rail
- Part 03-00300-03
- Aimpoint Micro footprint
- All steel
- Replaces rear sight
Affiliate links - purchases support this site at no extra cost to you. (?)
Best AK Optics: 1x Red Dot or Fixed 3x Prism
The Holosun HS403B at $205.87 is the 1x sight for most AK owners, because the low base in the box lands closer to an AK stock comb than an AR-height pedestal does. The Aimpoint Micro T-2 at $986 is the upgrade when field abuse is the design problem: a sealed tube, night-vision settings, a 25-meter submersion rating, and a 3.3-ounce sight body. Both run a 2 MOA dot on a 50,000-hour rated battery. The HS403B adds Shake Awake. The T-2 has no motion activation at all, so you leave it on.
The Holosun AEMS Core X2 at $299.99 is the enclosed-emitter option and the largest 1x window in this set, so rain, dust, and debris stay off the emitter. Settle its 1.63-inch mount height first, because that pedestal fights a traditional AK stock. For fixed magnification on a 7.62x39 rifle, the Primary Arms SLx 3x at $349.99, MPN 710040, uses the ACSS Raptor 7.62x39/.300 Blackout yard reticle. The etching stays visible with the illumination off, and the BDC holds are only as good as the load, velocity, and zero Primary Arms drew them around. The broader red-dot comparison goes deeper on 1x sight features; leave its AR mount heights there.
Get AK Optic and Mount Updates
New AK sight releases, fitment notes, and mount comparisons sent to your inbox.
Keep an AK Red Dot Low Enough for the Stock Comb
Start low, and climb only when the mount and stock give you a reason to. The HS403B ships with a low base, and that is most of why it is the value pick on an AK. The AEMS Core X2 arrives on a 1.63-inch pedestal that can sit above a traditional stock comb, which lifts your head off the stock unless a riser makes up the difference. Two dots are not interchangeable just because both are 1x; the footprint and the supplied height decide whether your face finds the dot.
The mount decides where the optic can live. RS Regulate sets height through a footprint-specific upper, the TWS covers give you Picatinny across the receiver, and the UltiMAK gives you a low forward Picatinny surface. The optic mounting basics guide covers installation, torque, and height fundamentals, and the parts catalog holds the component records for the stack you settle on.
Install the Mount, Then Zero for the Actual AK Cartridge
Install to the maker's instructions, then confirm the zero with live fire. A side-rail mount or a hinged top cover holds a repeatable zero because it controls the receiver interface, which a loose factory dust cover never did. On a modular RS setup, the lower is not holding anything until its matching upper is on. On a TWS cover, the forward hinge and the rear cam lock are the parts doing that work.
Zero for the cartridge and the distances you actually shoot. A 7.62x39 AK, a 5.45 AK-74, and a 5.56 AK do not share one trajectory, so there is no single AK zero to copy. A center dot zeroes on anything the optic fits. A caliber-specific BDC only supplies useful hold marks with the ammunition and setup it was designed around. The optic zeroing guide covers the confirmation process once the mount is secure.
Which AK Optic and Mount Setup Should You Buy?
Standard AKM with a side rail: the RS Regulate AK-301M plus the AKML upper, then an Aimpoint Micro-pattern sight, either the HS403B or the Micro T-2. Remove the factory base only where the AKML and optic instructions say to. Another footprint means another compatible RS upper, and AKR and AKOG are not among them. VEPR and FIME Vepr-FM rifles with a factory folding stock are outside the AK-301M.
Full-size Yugo with a factory side rail: the AK-307MS plus the AKML upper if you want the mount to come off, or TWS 33312 if receiver-length Picatinny matters more and the current matrix lists your rifle. Rail-less M85 and M92 pistols take TWS 33316 instead.
WASR-10, KR-103, or standard Draco: TWS 33310-X with the HS403B on its low base. Swap to the AEMS Core X2 only where the stock or a cheek riser supports a 1.63-inch pedestal. This setup does not move onto a fixed-stock PSA GF3/GF4/GF5, which uses 33317, or a Micro Draco, which TWS lists as incompatible.
Standard AKM, low forward dot: the UltiMAK M1-B with the HS403B, once barrel weight, barrel length, gas-tube ports, any shim requirement, and lower-handguard clamp clearance all check out. Most regular-length Romanian Dracos are not M1-B hosts, and those start with the AK pistol mounting guide. A 7.62x39 AK that already has receiver-length Picatinny can run the SLx 3x MPN 710040 instead, as long as the reticle's load and zero assumptions match yours.
With the sighting system settled, the broader AK accessories and upgrades guide covers handguards, stocks, triggers, controls, magazines, and suppressor setup.
Frequently Asked Questions
▶Do AK scope mounts hold zero well?
▶What is the best optic for an AK-47?
▶Should I use an AK side mount, railed top cover, or gas-tube rail?
▶What distance should I sight in an AK optic?
▶Do standard AK optic mounts fit a Zastava ZPAP M70?
Bottom Line
Choose the AK interface first, then buy the lowest optic setup that fits the rifle and cartridge.
The receiver interface decides which mounts exist for your rifle. The mount decides how low the sight sits and whether it holds a zero. The cartridge decides whether a BDC is worth anything. Answer those three before paying for window size, magnification, or hard-use protection.
