Colt Anaconda Red Dot Plates: C&H Adds Three Footprints

C&H Precision announced three optic adapter plates for the Colt Anaconda and Colt Kodiak on August 28, 2026, each covering a different red dot footprint and each listing at the same price. The company machines them in-house on HAAS equipment at its Richmond Hill, Georgia facility, and every plate ships with the optic mounting screws for the footprints it supports.

The reason this matters is narrower than a new-product note usually is. Colt already sold a factory plate for these revolvers, but it carries the RMSc pattern, which limits you to the small carry-class dots built on it: the Shield RMSc, the Holosun 507K, and their relatives. Anything on the RMR pattern or the ACRO pattern, which is most of the full-size and duty-grade optic field, had no first-party path onto the gun. The C&H set opens both on the same rear sight cut.

Choose the plate by the optic you already own, because the revolver side of the decision is identical across all three. Each plate carries one footprint family and the screw lengths that family needs.

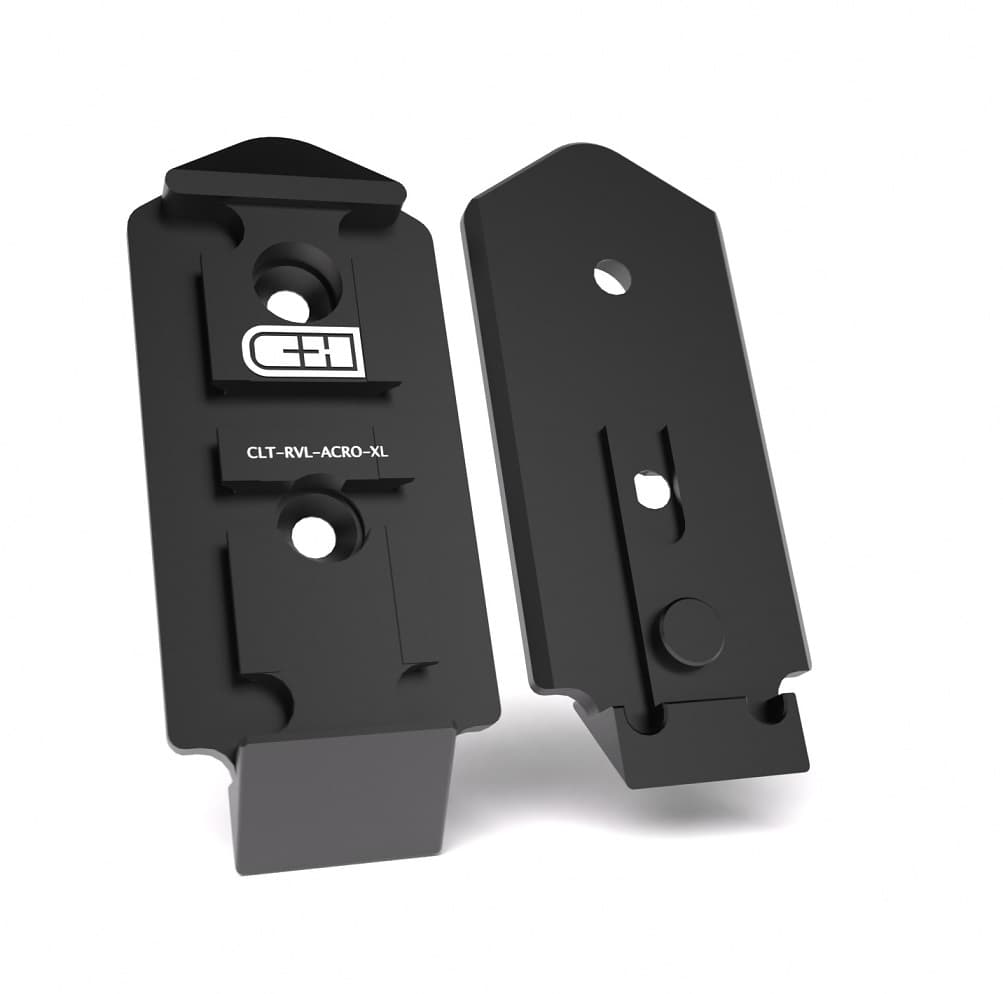

The screw kits are the detail worth reading before you order. The RMR-pattern plate ships four 4-40 lengths, from .280 for the Holosun C-series through .370 for the deeper C&H bodies, because optics that share a footprint do not share a body depth. Using the wrong length either bottoms the screw out against the plate before it clamps the optic, or leaves it hanging on two threads.

The plate mounts in the rear sight cut, which means the adjustable rear blade comes off the top strap and does not go back on. Colt's own assembly instructions for its revolver optics plates say so plainly: they cover the disassembly of the rear sight, the installation of the plate, and the mounting of the optic, in that order, and the plate then fastens through the rear sight hole and screws. The C&H plates fit the same drilled and tapped top strap with no machining. The front ramp with its orange or red insert stays where it is, but a front sight with nothing to align against is not a sighting system.

That is a real decision on a woods gun, and no press release makes it for you. A .44 Magnum carried against bears or hogs is exactly the gun where people want a mechanical backup, and this mounting method does not leave one. There is no suppressor-height iron option here the way there is on a semi-auto: the plate occupies the only rear sight location the frame has. Our optic mounting guide covers the general co-witness question, and the short version for these revolvers is that co-witnessing is not on the menu.

Two things make that acceptable. The first is that the swap is reversible: keep the factory rear sight and its screws together in a labeled bag and the revolver goes back to irons whenever you want. The second is optic selection. A dot with a multi-year battery life and a shake-awake or always-on mode carries the load that a backup iron would, which makes runtime and activation mode the two specs that decide this build. Our pistol red dot rankings list both for every pick.

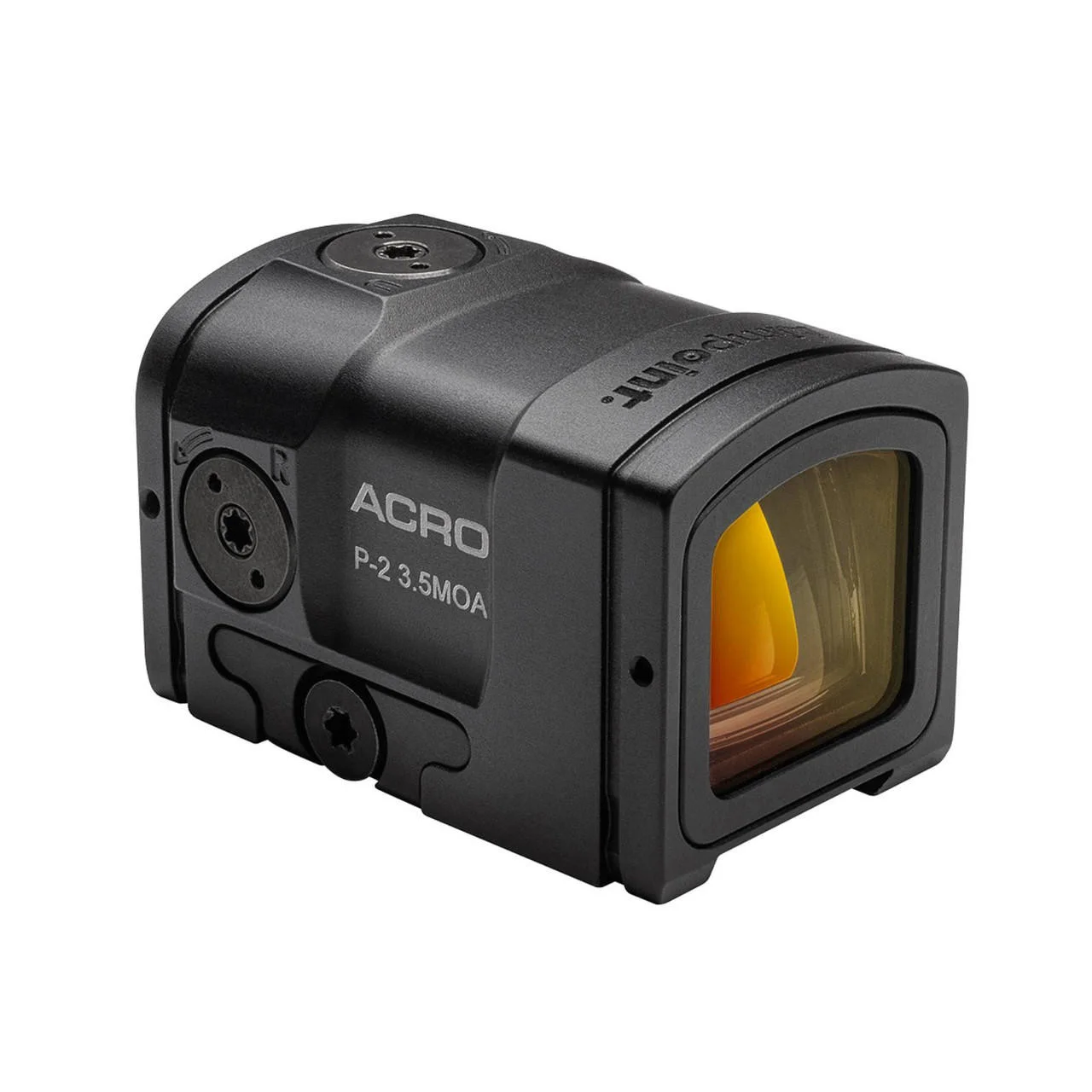

A full-power .44 Magnum load is one of the harshest environments a micro red dot will ever sit in, and two of the three C&H plates open a fully enclosed optic path onto it. The ACRO plate carries the Aimpoint ACRO and the C&H Duty; the K-footprint plate carries the C&H EDC Enclosed alongside the open-emitter 407K and 507K.

The case for a sealed emitter on a revolver is stronger than on a semi-auto, and it has nothing to do with recoil resistance. A revolver vents combustion gas sideways at the barrel-cylinder gap on every shot, a few inches in front of and below the optic, and that gas carries unburned powder with it. An open-emitter dot presents an exposed LED and a reflective window to that debris field. An enclosed emitter presents a closed tube. Add rain, snow, and a holster or pack ride on a hunting gun and the sealed design wins on maintenance alone. Our enclosed emitter guide ranks the current field and covers where the extra bulk is worth it.

The recoil half of the problem is a mounting problem, not an optic problem. Under .44 Magnum impulse the interface between plate, screws, and optic base is what works loose, which is why the screw length that matches your specific optic body matters more than the brand on the dot. Torque to the optic maker's figure, use a medium-strength threadlocker, and confirm zero after the first cylinder or two of full-power ammunition rather than assuming it held. Our pistol dot zeroing guide walks the process, including the confirmation string that catches a loosening mount before it costs you an animal.

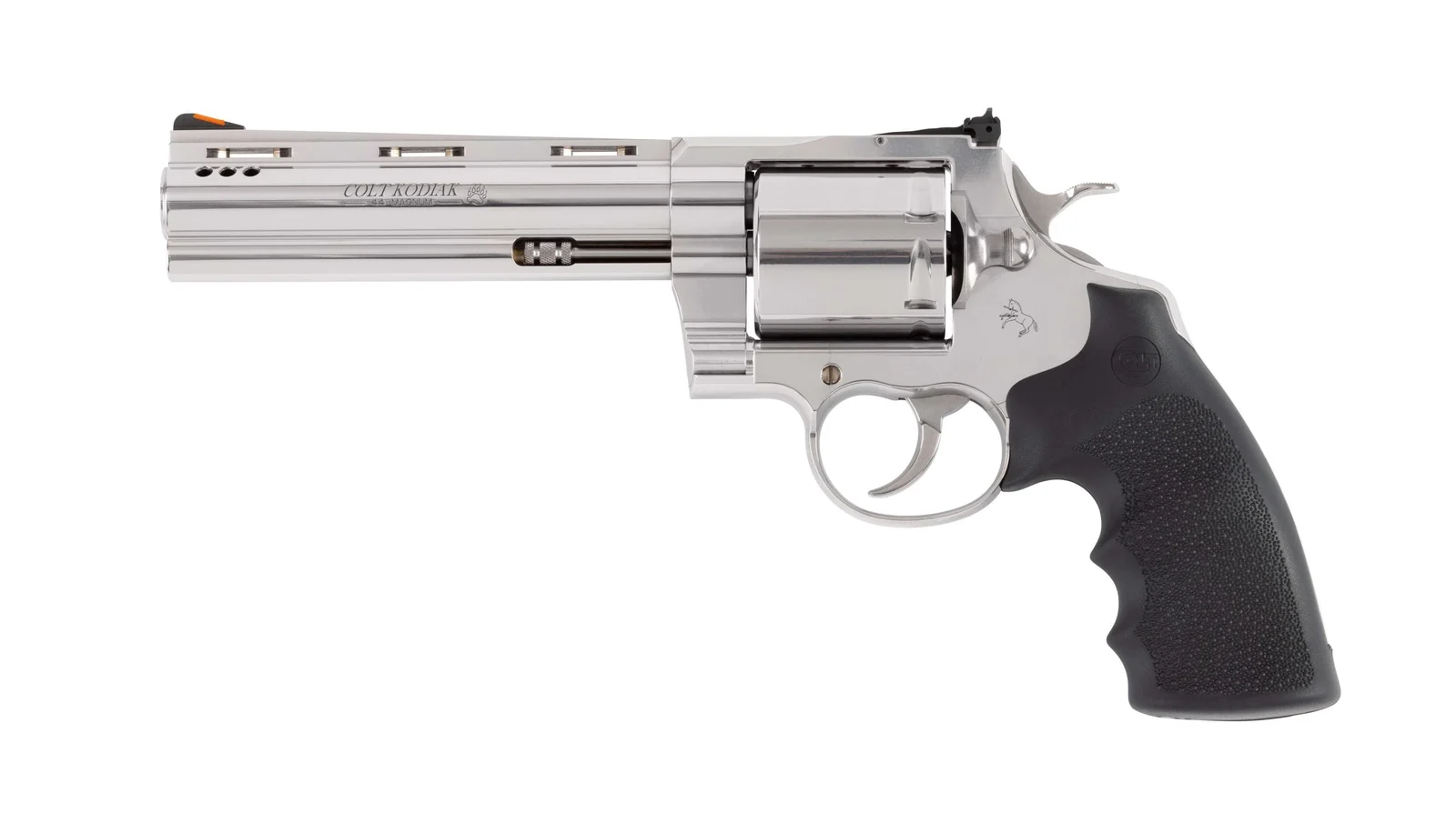

One plate covers both guns because both use the same drilled and tapped top strap, and the two revolvers otherwise split along recoil management. The Anaconda is the polished stainless flagship of the reintroduced snake gun line, chambered in .44 Magnum and .44 Special, six shots, offered in 4.25, 6, and 8-inch barrels with a recessed target crown. The Kodiak is the ported one: 4.25 and 6-inch barrels, button rifled with a 1:20 left-hand twist, an unfluted cylinder, and Hogue rubber grips.

The porting does not change the plate decision. The Kodiak's ports sit at the muzzle, forward of a sight that lives back over the frame. What porting does change is muzzle flip, which is the reason Colt gives for it, and a gun that settles faster puts you back behind the dot faster. If an optic is the plan from the start, the ported gun is the easier of the two to shoot quickly. Where these two land against the wider .44 field is worked through in our .44 Magnum revolver rankings.

Colt

Colt Anaconda .44 Magnum

The optics-ready .44 Magnum these plates were cut for

$1699

MSRP

Reintroduced large-frame stainless .44 Magnum snake gun with a recessed target crown, optics-ready mount cut, and the modern Colt double-action trigger. The premium-finish flagship of the .44 class.

Caliber: .44 Magnum / .44 SpecialCapacity: 6 roundsBarrel: 6 inches (4.25, 8 in variants)

Open in ConfiguratorShop at MidwayUSA

Affiliate links (?)

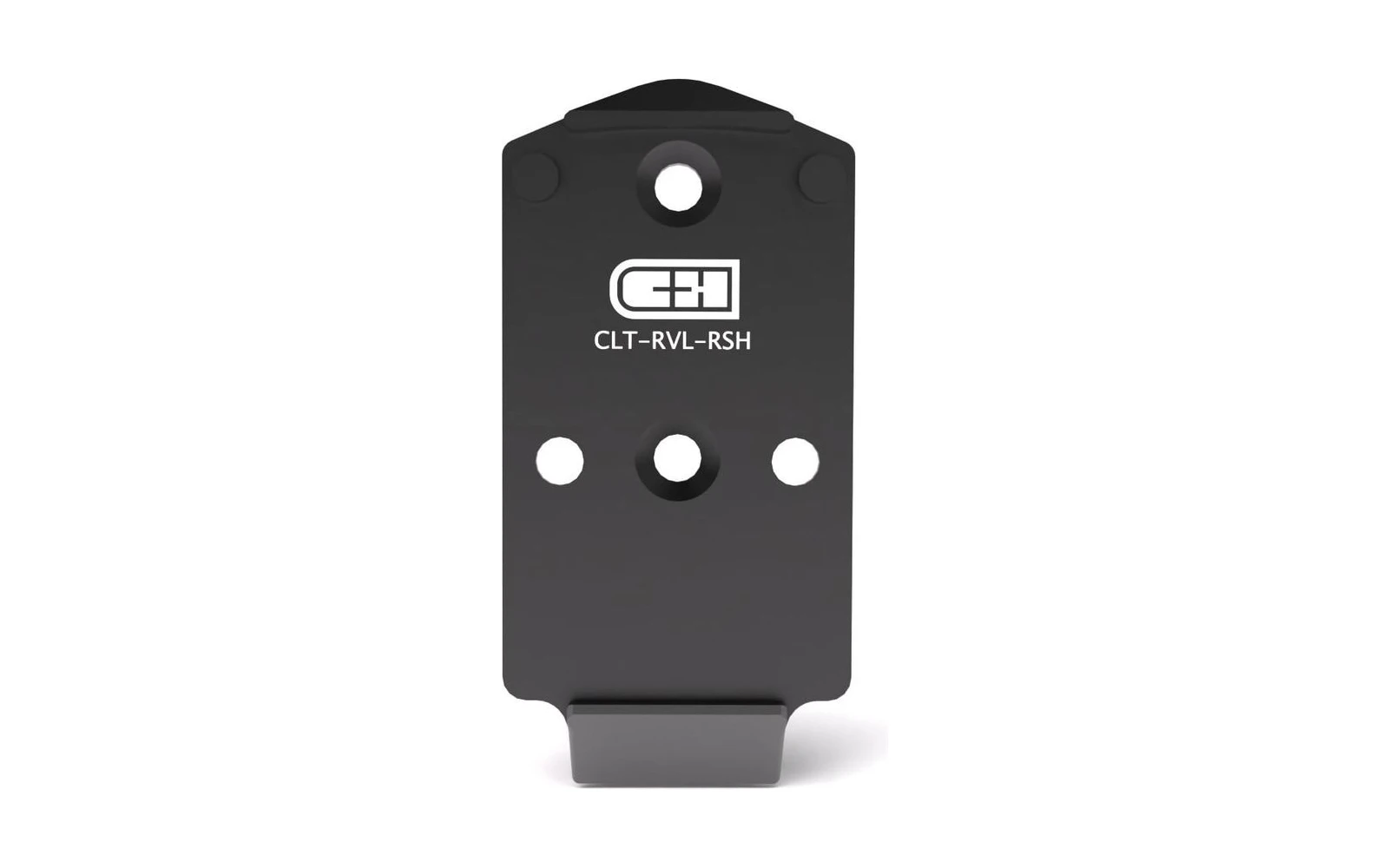

Read the footprint off your optic's spec sheet, then buy the plate that names it. Footprint names travel badly: a Holosun 507C and a 507K share a family name and nothing else about their bases, and they take different plates here. The C-series goes on CLT-RVL-RSH with the RMR pattern; the K-series goes on CLT-RVL-RMSC. Order that pair backwards and the optic will not sit on the plate.

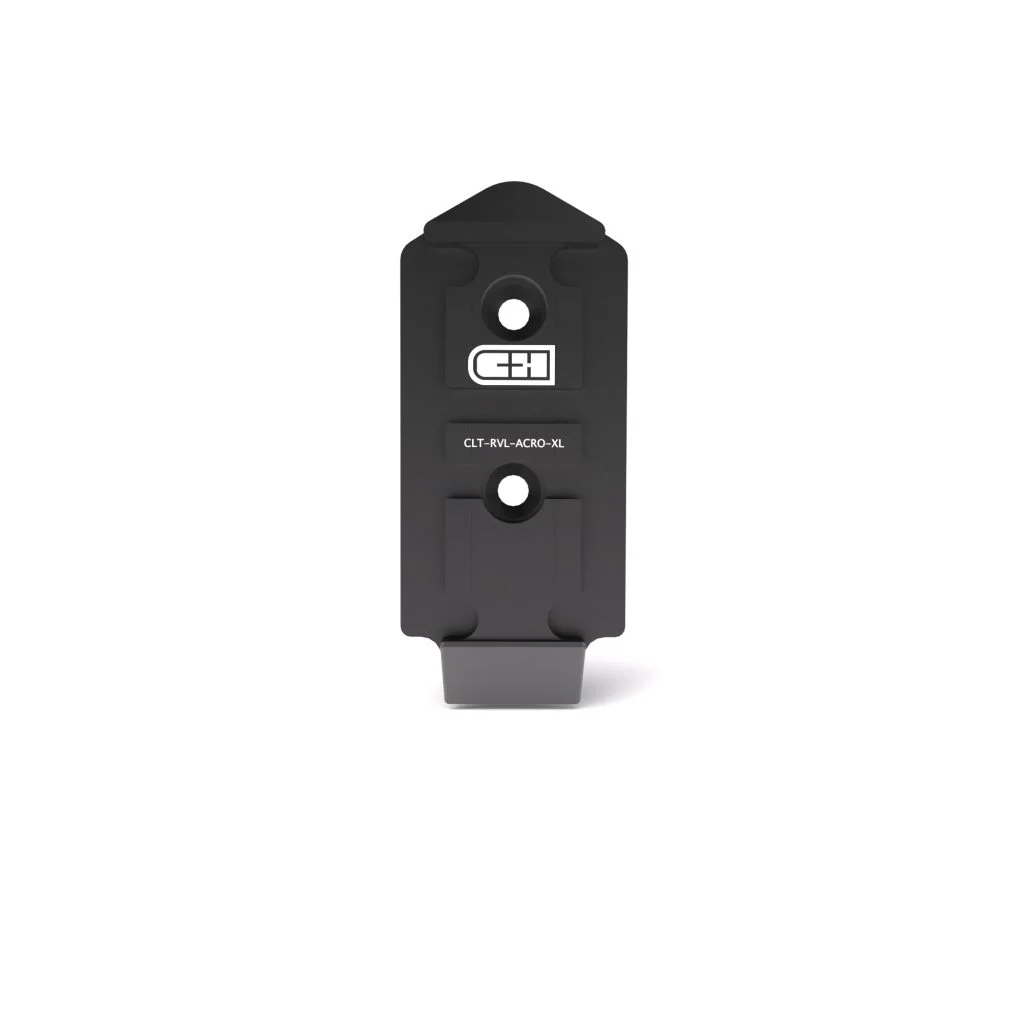

If you are buying the optic and the plate together, work the other direction and let the footprint decide both. An enclosed emitter points you at CLT-RVL-ACRO-XL and the ACRO class; a low-profile carry dot points you at CLT-RVL-RMSC; the widest window and the largest selection of dots sits behind CLT-RVL-RSH. You can put candidate dots side by side in our comparison tool or work the optic against a host in the builder.

One last check before you order: confirm your revolver still has its factory rear sight and that the top strap holes are unmodified. A gun that has already been through an aftermarket mount, a scope base, or a gunsmith fit may not present the interface these plates expect.
