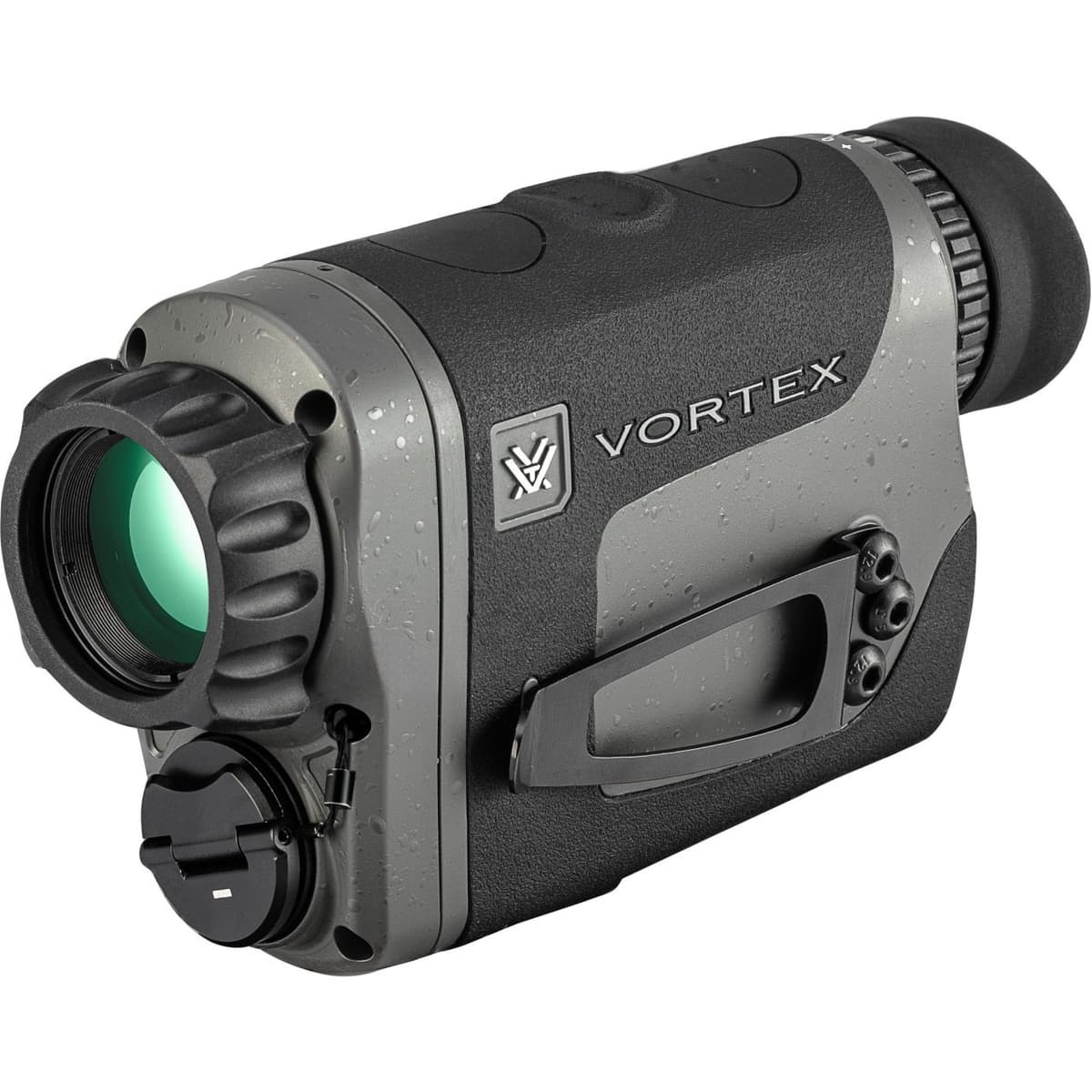

Vortex Veil 400

Handheld thermal with simple controls, replaceable batteries, and lifetime electronics coverage

Affiliate links (?)

Check Best Price

View at Optics Planet

Add to Build

Quick Specs

Price: $1,500
Weight: 13.3 oz
Brand: Vortex
Category: night-vision

Features

•400x300 sensor, 50 Hz
•2.3x base magnification, 25mm objective
•11-degree field of view, 13.3 oz
•4.5 hours per 18650 battery

Overview

The Vortex Veil 400 suits buyers who want straightforward handheld thermal viewing and long-term support. Its 400x300 detector runs at 50 Hz, with 2.3x base magnification and an 11-degree view. Four color palettes and three viewing modes let you adjust how heat appears on the OLED screen.

Two replaceable 18650 batteries are included, each rated for 4.5 hours. Photos and video transfer by cable to a PC or Android device. The lifetime VIP warranty includes the electronics. Vortex defines its 1,100-yard detection rating as a half-meter object covering one pixel; that figure does not describe identification detail.

Key Features

400x300, 12-micron thermal detector
25mm objective and 2.3x base magnification
1024x768 OLED display
Four palettes and three viewing modes
Photo and video recording with wired transfer
Two rechargeable 18650 batteries included
1/4-20 tripod connection

Pros

+Lifetime VIP warranty includes electronics
+Replaceable batteries and USB-C charging
+Four palettes and three viewing modes
+Tripod connection supports steady viewing

Cons

−Photo and video transfer requires a cable
−400x300 sensor has fewer pixels than 640-class alternatives

Detailed Specifications

thermalSensor: 400x300
pixelPitch: 12 microns
refreshRate: 50 Hz
Magnification: 2.3x base; 1x, 2x, 4x digital zoom
Objective Diameter: 25mm
Field of View: 11 degrees; 57.8 ft at 100 yards
display: 1024x768 OLED
Battery Type: Replaceable 18650
Battery Life: 4.5 hours per battery
dimensions: 4.9 x 1.9 x 3.2 inches
weight: 13.3 oz
detectionRange: 1,100 yards, manufacturer single-pixel criterion for a 0.5m object
Mount Type: Handheld or 1/4-20 tripod; not designed for rifle mounting
