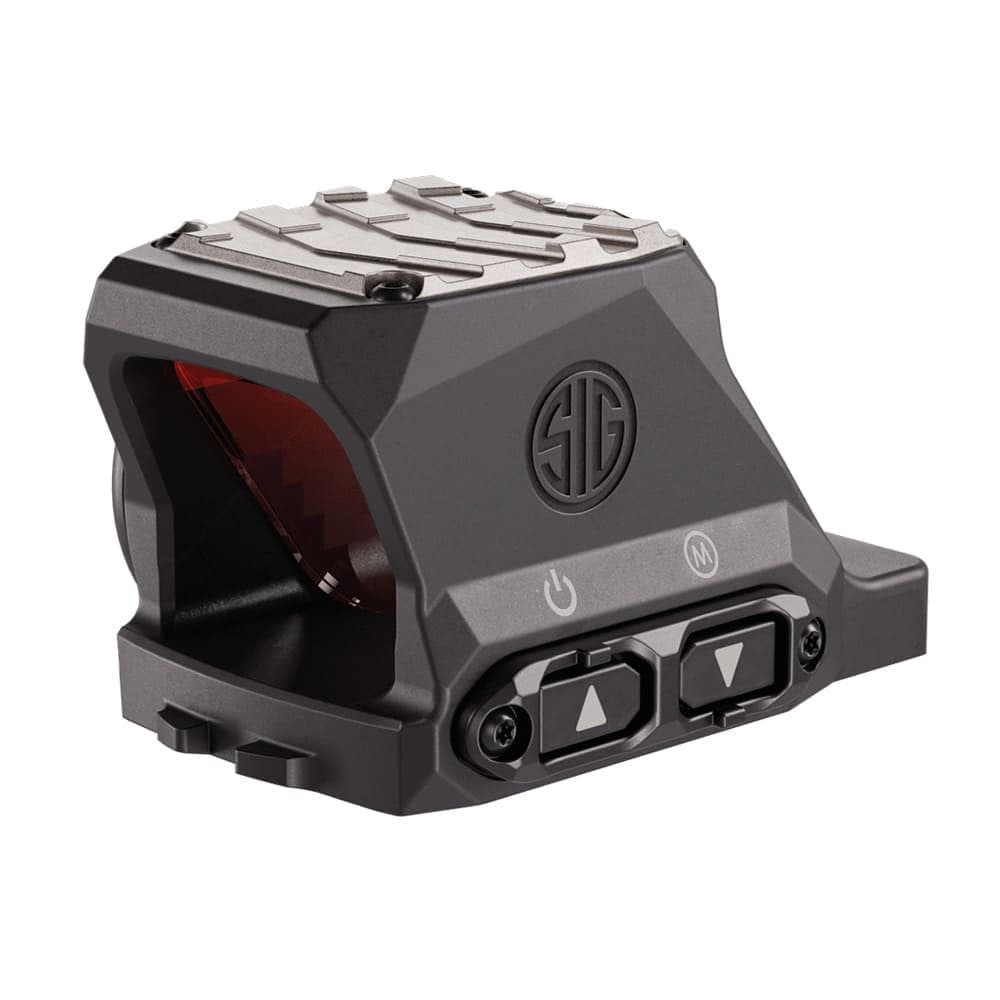

SIG XRAY5 SIG-LOC Pro
Solid-state XRAY5 for the underside-mounted SIG-LOC Pro pistol interface.
- Price
- $600
- Weight
- 1.5 oz
- Brand
- SIG Sauer
- Category
- Pistol Optics
Featured in
Features
- •3.5 MOA digital red dot
- •SIG-LOC Pro footprint
- •80 MOA elevation and windage travel
- •10,000-hour CR2032
- •1.45 oz with battery
Capability Boosts
Recommended For
+24 more
More pistol guides & articles
Guides
Overview
The XRAY5 SIG-LOC Pro combines the XRAY5 digital emitter matrix with SIG's underside-mounted SIG-LOC Pro interface. It is the direct-fit version for supported P211, P385, and recent SIG-LOC P320 and P226X slides. It is not interchangeable with a DeltaPoint Pro, RMR, or Shield RMSc cut.
SIG lists the same 1.9 by 1.32 by 1.17-inch envelope and 1.45-ounce weight as the conventional Pro model. The published specification is 80 MOA of total travel on both axes, not the 40/80 split of the older ROMEO-X SIG-LOC Pro. SIG still does not state MOA per selected pixel or step.
SIG's family page reports more than 100,000 consecutive live-fire rounds, 132 feet of pressurized submersion, and repeated 8-foot concrete drops without failure or loss of zero. Those are SIG's own test claims and should not be read as independent field results.
Key Features
- Fixed 15x15 matrix with 225 digital zero positions
- 3.5 MOA red dot in a fully enclosed optical system
- 24mm Zero Distortion Optic clear aperture
- 7075 aluminum housing with a Grade 5 titanium lens shield
- Side-loading CR2032 with up to 10,000 hours of runtime
- 15 brightness settings, including 13 daylight and 2 night-vision levels
- 80 MOA total elevation travel and 80 MOA total windage travel
- IPX8 waterproofing to 40 meters
- Underside-mounted SIG-LOC Pro footprint
Pros
- +Digital zero removes the moving emitter carrier used by conventional pistol dots
- +Enclosed and argon-purged optical path keeps debris away from the emitter
- +Side battery access preserves the mounted position during battery changes
- +Multiple zero profiles and round-count history are available through the app
- +Direct SIG-LOC mounting removes an adapter plate from supported pistols
Cons
- −SIG does not publish a clear MOA-per-pixel or MOA-per-step value
- −The 10,000-hour runtime trails several conventional enclosed pistol dots
- −Long-term durability claims currently come from SIG testing rather than independent production-sample testing
- −Proprietary footprint fits only supported SIG-LOC Pro slides
Detailed Specifications
- Reticle
- 3.5 MOA red dot on a fixed 15x15 LED matrix
- Magnification
- 1x
- Objective Diameter
- 24mm clear aperture, measured diagonally
- Adjustment Type
- Digital, through optic buttons or the XRAY5 app
- Adjustment Range
- 80 MOA total elevation and 80 MOA total windage
- Battery Type
- CR2032, side-loading
- Battery Life
- Up to 10,000 hours
- brightnessSettings
- 15 total, 13 daylight and 2 night vision
- Waterproof Rating
- IPX8 to 40 meters / 132 feet
- Material
- 7075 aluminum housing with Grade 5 titanium lens shield
- Finish
- Black anodized
- Mount Type
- SIG-LOC Pro, underside mounted
- Length
- 1.9 inches
- width
- 1.32 inches
- height
- 1.17 inches
- weight
- 1.45 oz with battery
