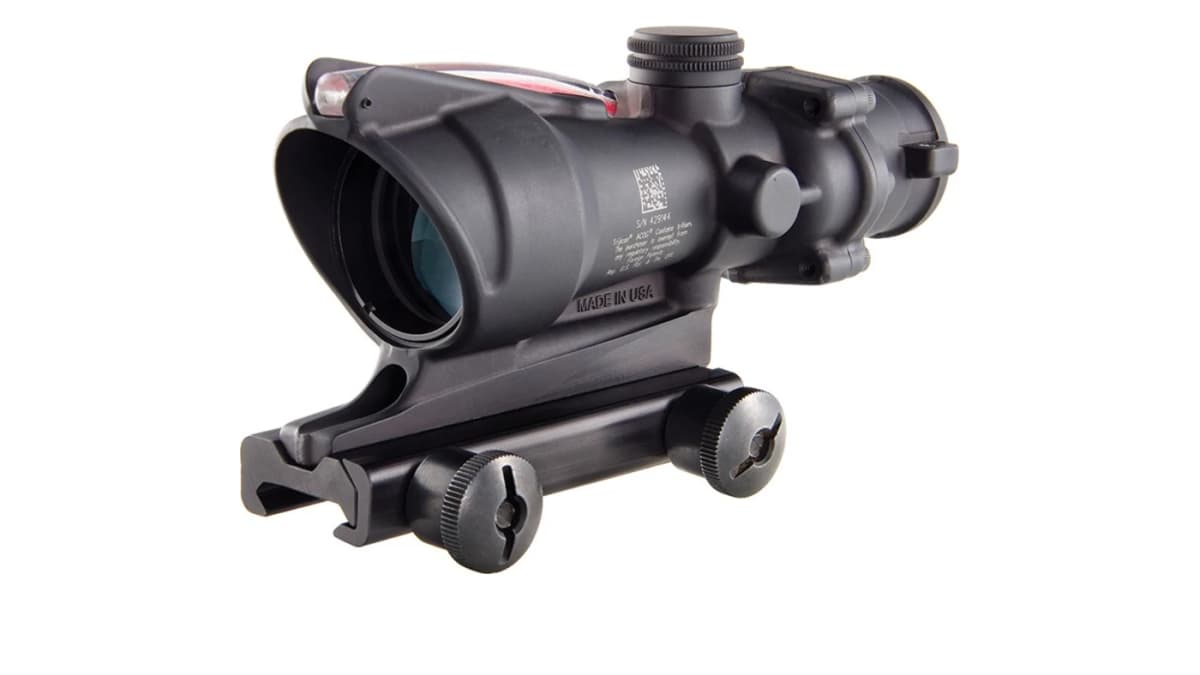

Trijicon ACOG TA110 3.5x35 LED MRAD
LED-illuminated 3.5x35 ACOG with six brightness settings, 2.4 inch eye relief, and a red MRAD reticle
- Price
- $1,359
- Weight
- 1 lb 4.8 oz
- Brand
- Trijicon
- Category
- Optics
Featured in
Features
- •Fixed 3.5x35
- •AA-powered LED, 6 settings
- •Red MRAD chevron tree
- •2.4 in eye relief
- •20.8 oz
Capability Boosts
Recommended For
+18 more
More rifle guides & articles
Guides
Overview
The TA110-C-100807 pairs the 3.5x35 LED ACOG with Trijicon's red MRAD chevron tree reticle. It combines the two features most buyers trade off on an ACOG: the longer 2.4 inch eye relief of the 3.5x35 body and user-adjustable LED brightness, with six settings powered by a single AA battery.
Trijicon rates battery life at over 12,000 hours on setting 4 with the supplied alkaline battery at 70 degrees F. The MRAD reticle uses consistent mil subtensions instead of a single-cartridge BDC, so holds come from your own rifle and load. That suits suppressed carbines, 300 Blackout running supersonic and subsonic ammunition, and rifles that do not match a factory BDC.
The tradeoff is size. At 8 inches long and 20.8 ounces, it is the heaviest of the four MRAD ACOGs, and the 5.5 degree field of view (28.9 feet at 100 yards) is narrower than the 4x32's. It ships on the TA51 flattop thumbscrew mount with a forged aluminum housing.
Key Features
- Red MRAD chevron tree reticle not tied to a single cartridge
- LED illumination with six brightness settings
- Single AA battery, over 12,000 hours on setting 4
- 2.4 inches of eye relief
- Fixed 3.5x magnification with 35mm objective
- 28.9 ft field of view at 100 yards (5.5 degrees)
- TA51 flattop thumbscrew mount included
Pros
- +Forgiving eye relief plus user-set brightness
- +Larger exit pupil eases head position
- +Mil holds adapt to any load once you record your drops
- +Long battery life on a common AA cell
Cons
- −Heaviest of the four MRAD ACOGs at 20.8 oz
- −Needs a battery, unlike the dual-illuminated TA11
- −Narrower field of view than the 4x32
- −You must build your own hold data
Detailed Specifications
- Reticle
- Red MRAD chevron tree
- Magnification
- 3.5x (fixed)
- Objective Diameter
- 35mm
- illumination
- LED, 6 brightness settings
- Battery Type
- AA (lithium or alkaline)
- Battery Life
- Over 12,000 hours on setting #4 (supplied alkaline battery, 70 degrees F)
- Eye Relief
- 2.4 inches
- exitPupil
- 9.91mm
- Field of View
- 28.9 ft @ 100 yds (5.5 degrees)
- dimensions
- 8 x 3 x 2.6 inches
- weight
- 20.8 oz
- mount
- TA51 flattop thumbscrew mount
- Material
- Forged aluminum
