Key Takeaways
- →Four base configurations: The new Pro Cantilever comes in 30mm and 34mm tube sizes, each at 1.54 or 1.93 inches high.
- →Two dot positions: A 45-degree offset mount and 30mm or 34mm 12 O'Clock mounts accept DeltaPoint Pro footprint sights.
- →Forward rail: The 30mm and 34mm Pro Diving Board mounts add Picatinny space for a rangefinder, IR device, or red dot.
- →Mount-family fit: The 12 O'Clock and Diving Board accessories fit the new Pro rings and cantilevers; the 45-degree offset fits the new cantilevers.
Vortex Pro Cantilever Mount 30mm 1.54in
An AR-style rifle with a 30mm scope and a standard 1.54-inch optical centerline
30mm one-piece Picatinny scope mount with a 1.54-inch centerline and Pro accessory ports.
- +Carries a scope and a compatible secondary accessory
- +Four tube-and-height combinations in the Pro Cantilever family
- −Requires a matching scope tube
- −Accessory mounts are separate parts
Affiliate links (?)
Vortex Pro Cantilever Mount: A Base for More Than a Scope

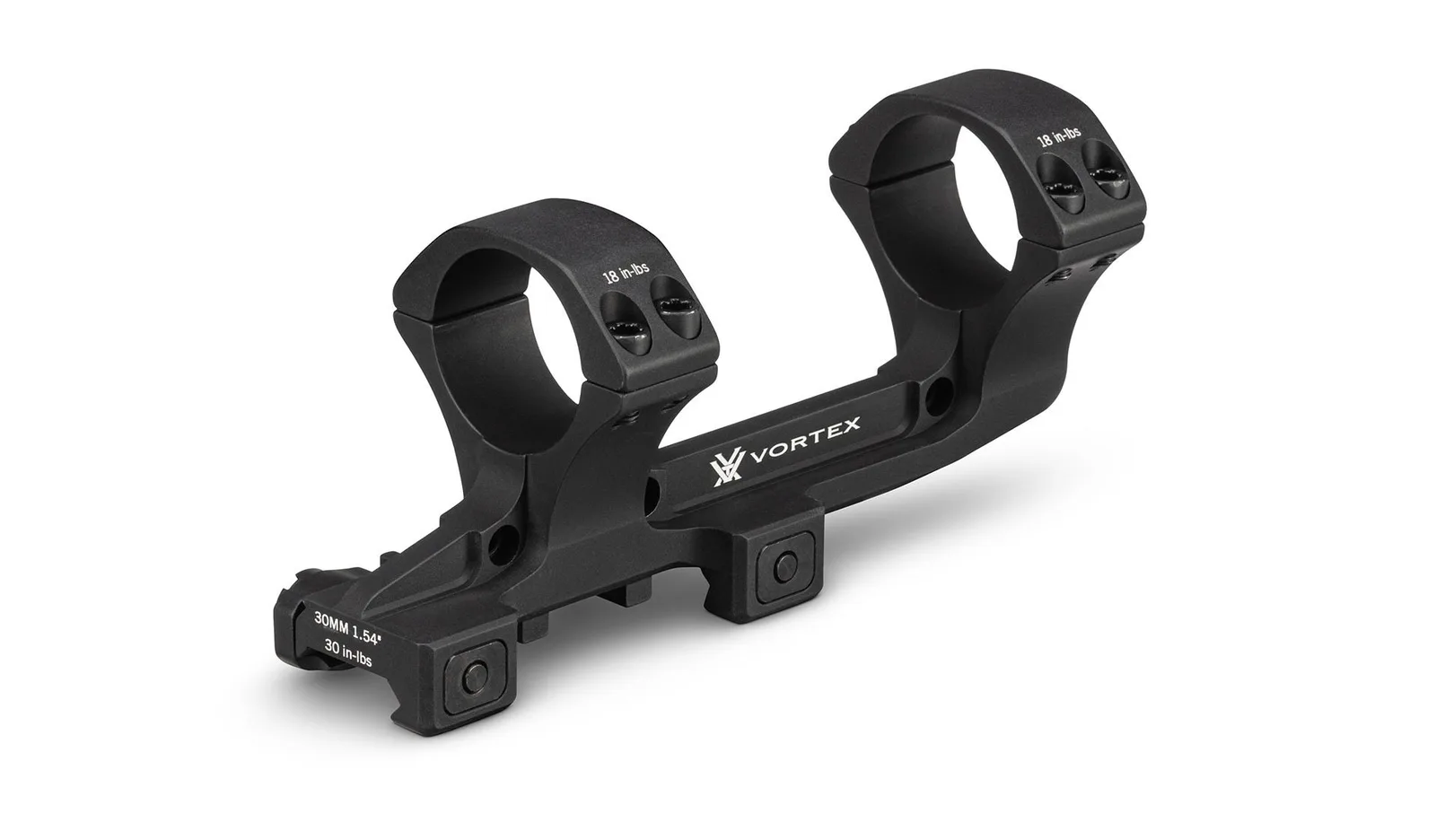

Vortex has launched a new Pro Cantilever Mount family built around its matching red-dot and forward-rail accessories. The one-piece base comes in 30mm and 34mm ring sizes at 1.54-inch and 1.93-inch optical centerlines. The point is to keep a magnified scope in place while adding another sight or a rail-mounted device to the same mount system.
The rings sit forward of the receiver clamp, giving an AR-style rifle more room to position the scope for a full sight picture. A conventional mount still does that job. The new Pro base adds attachment points for Vortex's dedicated accessories, which makes the change meaningful for a rifle that may carry a second optic or a device above the scope. Our LPVO mount guide covers the other mount choices and the effect of height on cheek position.
Choose the Tube Size and Height First
The scope's main tube decides between 30mm and 34mm rings. Ring height is a separate choice: 1.54 inches keeps the scope lower, while 1.93 inches raises the sightline for a more upright head position. The taller option also changes cheek contact and clearance, so choose it for the rifle and shooting position you actually use. Vortex describes the height options as supporting ordinary scope setups, clip-on devices, and night-vision setups.
This is a new Pro accessory family. Vortex names the new Pro Riflescope Rings and Pro Cantilever Mounts as hosts for the top dot and diving board. Its older Pro Extended and Sport mounts have different names; match an accessory to the mount named in Vortex's compatibility list before replacing any ring cap.
Vortex Riflescopes
Vortex AMG 1-10x24 FFP
- 1-10x magnification
- First focal plane
Vortex Strike Eagle 1-6x24 Gen II
- 1-6x magnification
- AR-BDC3 SFP reticle
Vortex Strike Eagle 1-8x24
- 1-8x magnification
- AR-BDC3 SFP reticle
Vortex Diamondback 4-12x40
- 4-12x magnification, 40mm objective
- 1-inch maintube, second focal plane
Affiliate links (?)
45-Degree or 12 O'Clock Red Dot?

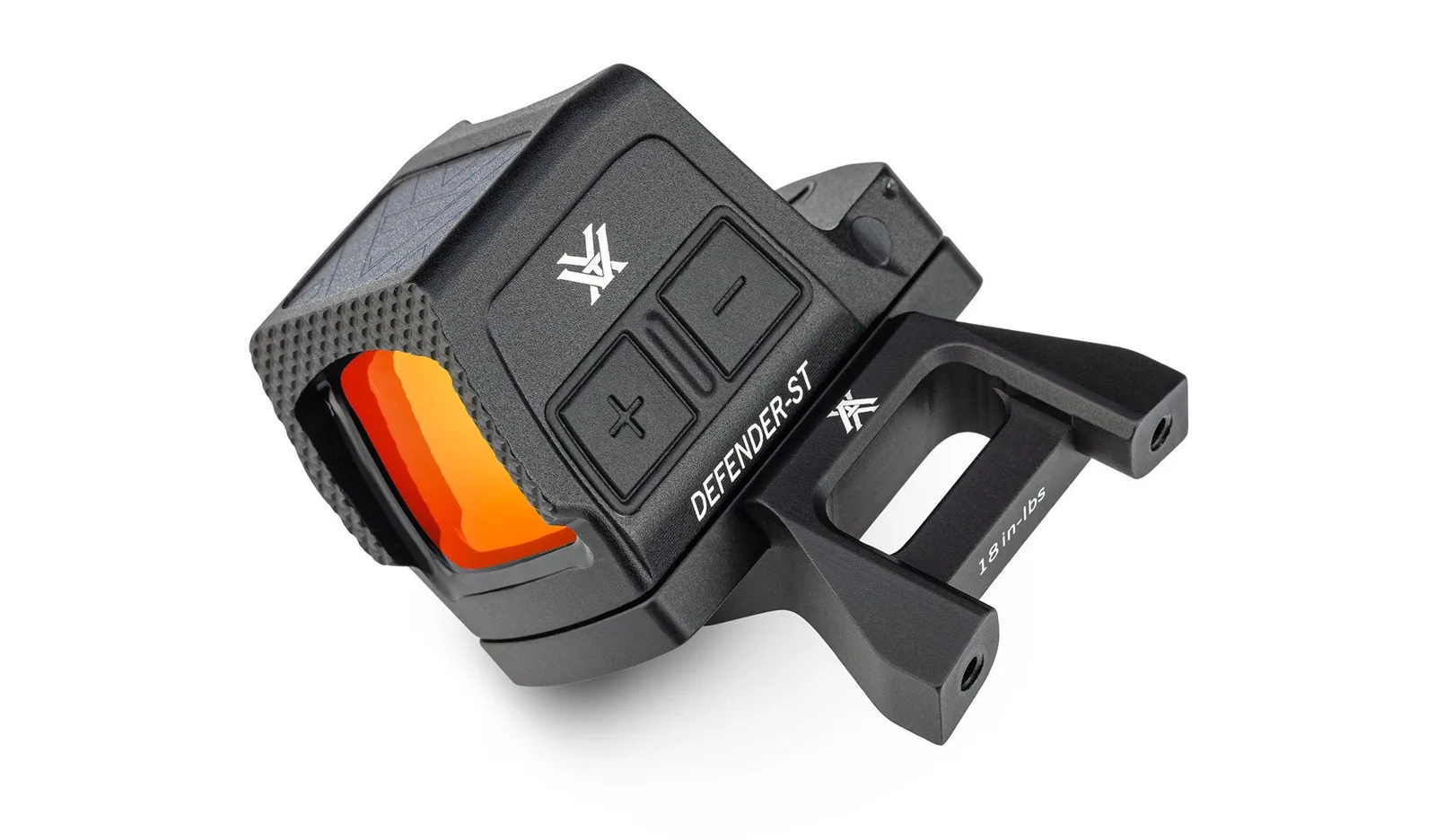

The 45-degree Pro Cantilever accessory places a DeltaPoint Pro footprint sight off to the side of the new cantilever. Roll the rifle to bring that dot into view without changing the scope's magnification. A shooter who wants that transition can compare the location with other choices in our offset red-dot mount guide. The Pro accessory attaches to the cantilever itself, so it is a different fitment decision from a standalone Picatinny offset base.

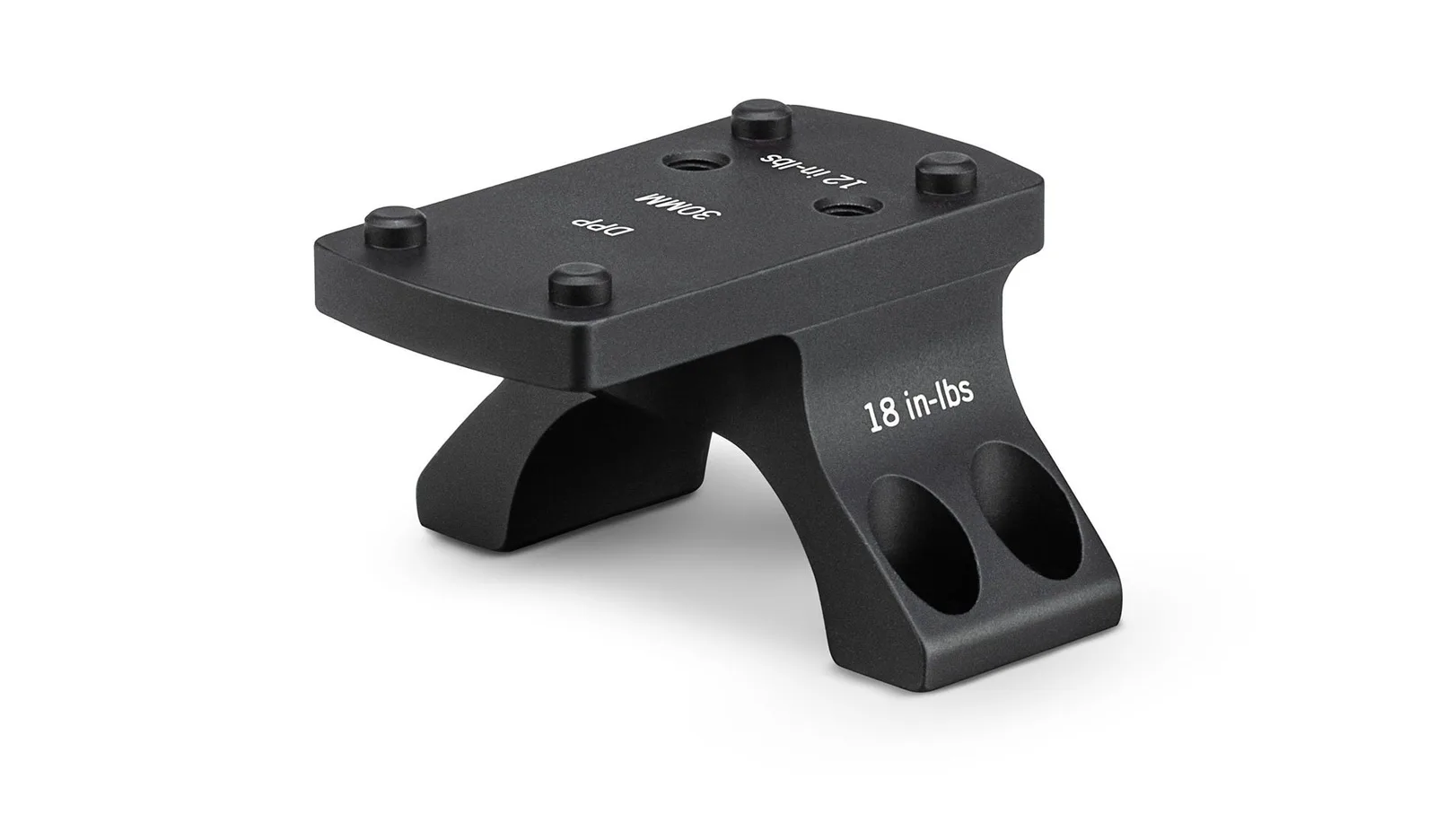

The 12 O'Clock mount instead places the dot over the scope. It comes in 30mm and 34mm versions and fits the new Pro Cantilever Mounts or Pro Riflescope Rings. That position keeps the dot on the rifle's centerline, though it requires a higher head position than looking through the scope. Both dot accessories use the DeltaPoint Pro footprint; a different footprint calls for a different mounting solution.
A Forward Rail for the Impact 4000

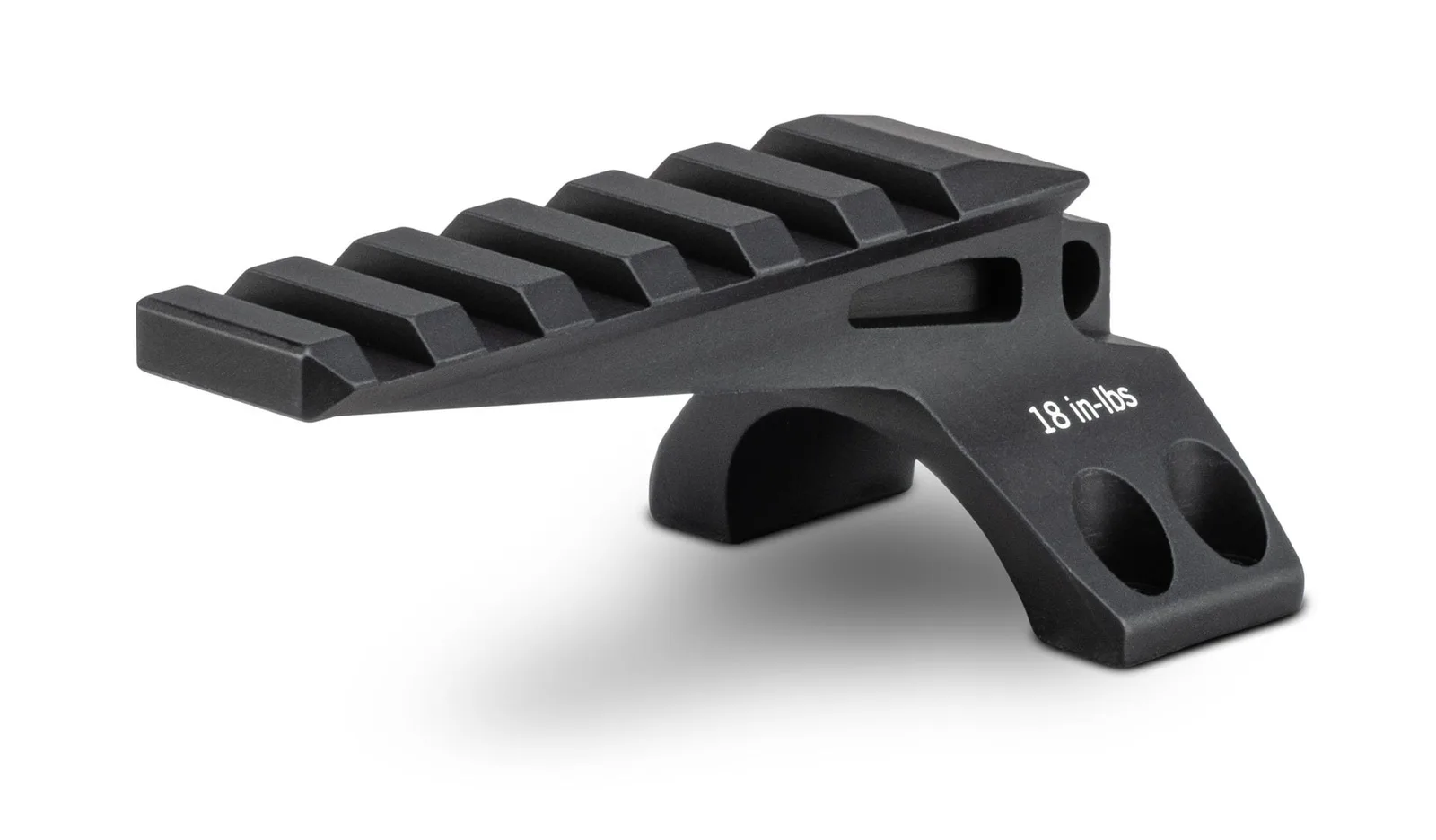

The Pro Diving Board adds Picatinny slots ahead of the scope. Vortex calls out its Impact 4000 rail-mounted ballistic rangefinder, IR illuminators, and red dots as uses for the forward space. Like the 12 O'Clock mount, the diving board comes in 30mm and 34mm versions for the new Pro rings and cantilevers. Check the space above the scope and the device's position before adding one; the rail creates room, while the mounted device still needs a clear view forward.
Follow New Optics and Mounts
Get new rifle optic releases and setup guidance in your inbox.
Who Needs the New Pro System?
The strongest reason to use this mount family is a planned second device. A 30mm or 34mm scope can stay in its chosen position while a compatible dot or forward rail joins it. If the rifle only needs a scope, the height, tube size, clamp, and scope position matter more than accessory expansion. Compare those basics before using the rifle builder to plan the rest of the setup.
