XTech X-Flare AR-15 Magwell: Mil-Spec-Only for $40

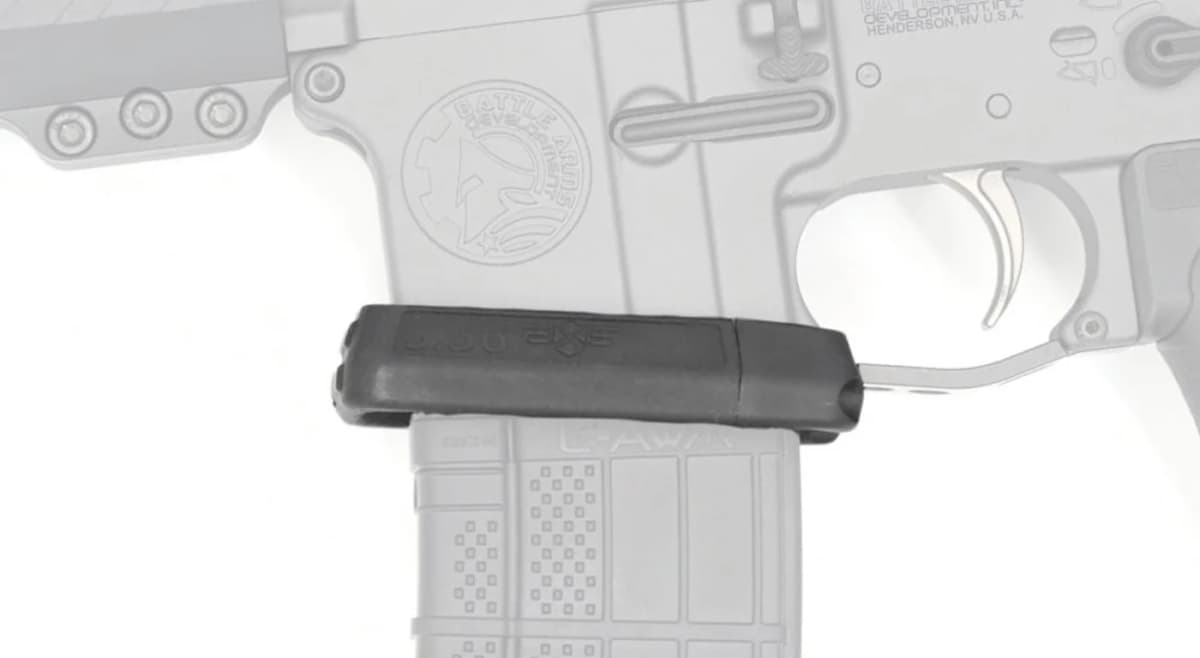

The XTech X-Flare is a drop-on flared magwell for mil-spec AR-15 and M4 lowers, released direct from XTech Tactical on July 21, 2026 at $39.95 for a single unit. The body is injection molded from glass-filled Super Tough nylon and secures with two included steel bolts driven into brass threaded inserts. Nothing on the receiver gets modified, and XTech says the install does not require removing any parts from the lower. The finished magwell adds 28.5 grams, a hair over an ounce, and puts a funnel opening 1.75x larger than a standard mil-spec magwell under the magazine well.

That construction spec is the pitch. The drop-on AR magwell category grew up around 3D printing, and XTech credits HRF Concepts with the first mass-production printed magwell. Injection molding glass-filled nylon is a tooling-heavy process by comparison, closer to how a factory polymer grip is made, and it produces a denser part with no layer lines to delaminate. The insert method is the other half of the claim. XTech sonic welds the brass inserts in place rather than heat staking them, which is the cheaper approach and the one that tends to strip out or spin free once a threaded insert has been torqued a few times. Ultrasonic installation drives the insert into already-molded nylon under high-frequency vibration, which locally melts the polymer so it reflows around the insert knurling and locks it.

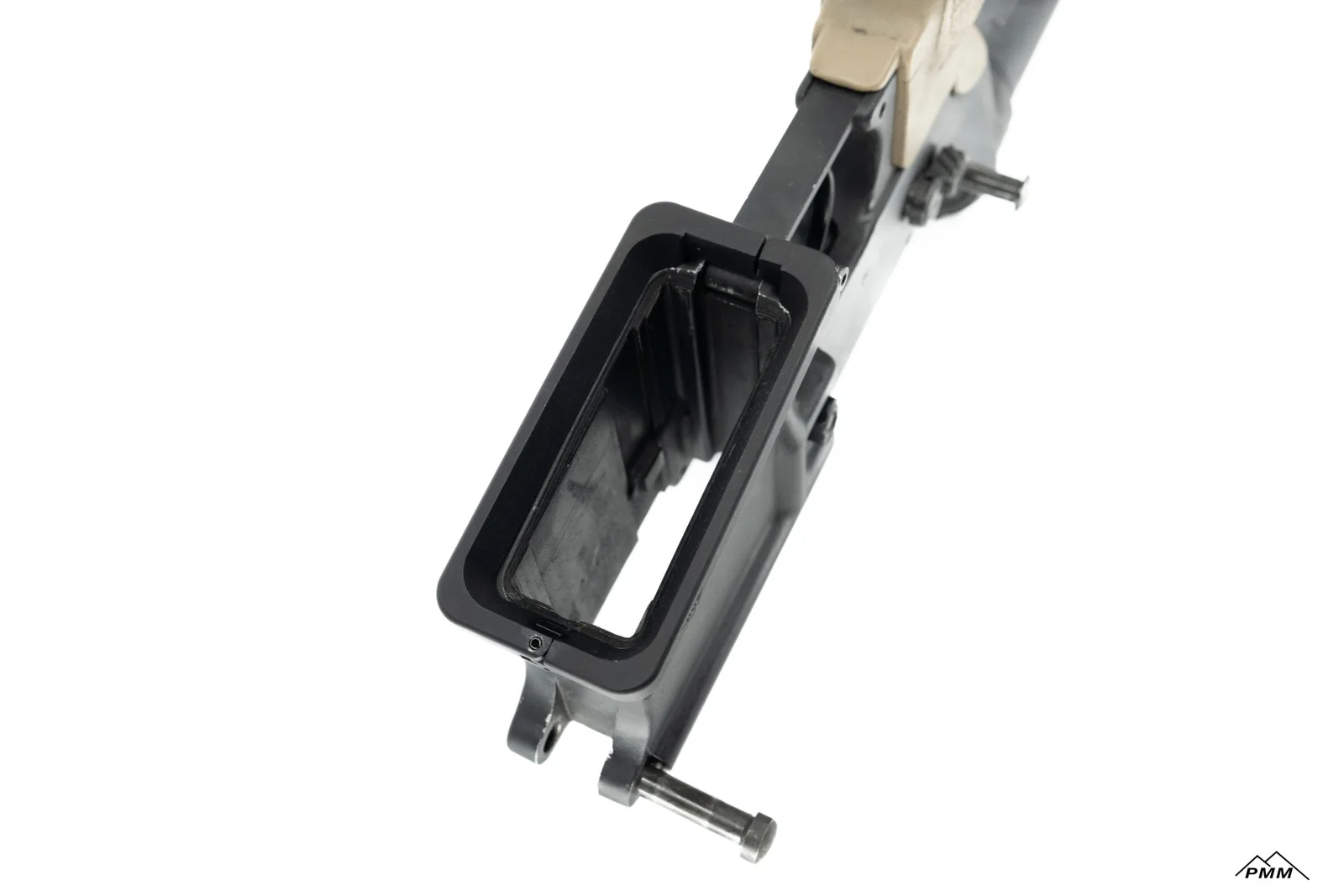

The X-Flare fits mil-spec AR-15 and M4 lowers and nothing else. XTech states directly that it does not fit billet or non-mil-spec receivers. That single fitment note is what this product is built around, and it is what separates it from a universal drop-on magwell that fits nothing well. Plain mil-spec lowers, the FN 15, the base Aero Precision AR-15, the Spike's Tactical and BCM forged lowers, and the service-rifle-contour clone lowers that follow the same print, share a common magwell profile. Receivers that deviate from that print do not.

Two different things get a lower excluded, and it is worth separating them. Billet receivers like the Radian AX556 and the American Defense UIC machine their own magwell and trigger-guard geometry, and several already carry an integral flare. Then there is the enhanced-forged category, which trips people up: the Aero M4E1 is forged 7075-T6, not billet, but its integrated trigger guard and reshaped magwell put it outside the window anyway. Same story for the forged LMT MARS-L. Read XTech's chart, not the receiver's manufacturing process. If you are shopping receivers, our best AR-15 lower receivers guide covers where the integral flare lives and where it does not.

For an owner running a mil-spec lower, this is the exact upgrade path that has been under-served. Replacing the receiver just to get a flared magwell means a new serialized purchase, a transfer, and a full lower rebuild for a part that bolts on in minutes. The closest cataloged alternative is the HRF Concepts RCM, which quotes a nearly identical 175 percent funnel increase in injection-molded polymer. The two solve the problem from opposite directions: HRF molds receiver-specific versions, including fits for the M4E1, ADM UIC, and LMT MARS lowers the X-Flare excludes, while XTech builds one part for the mil-spec majority and prices it lower.

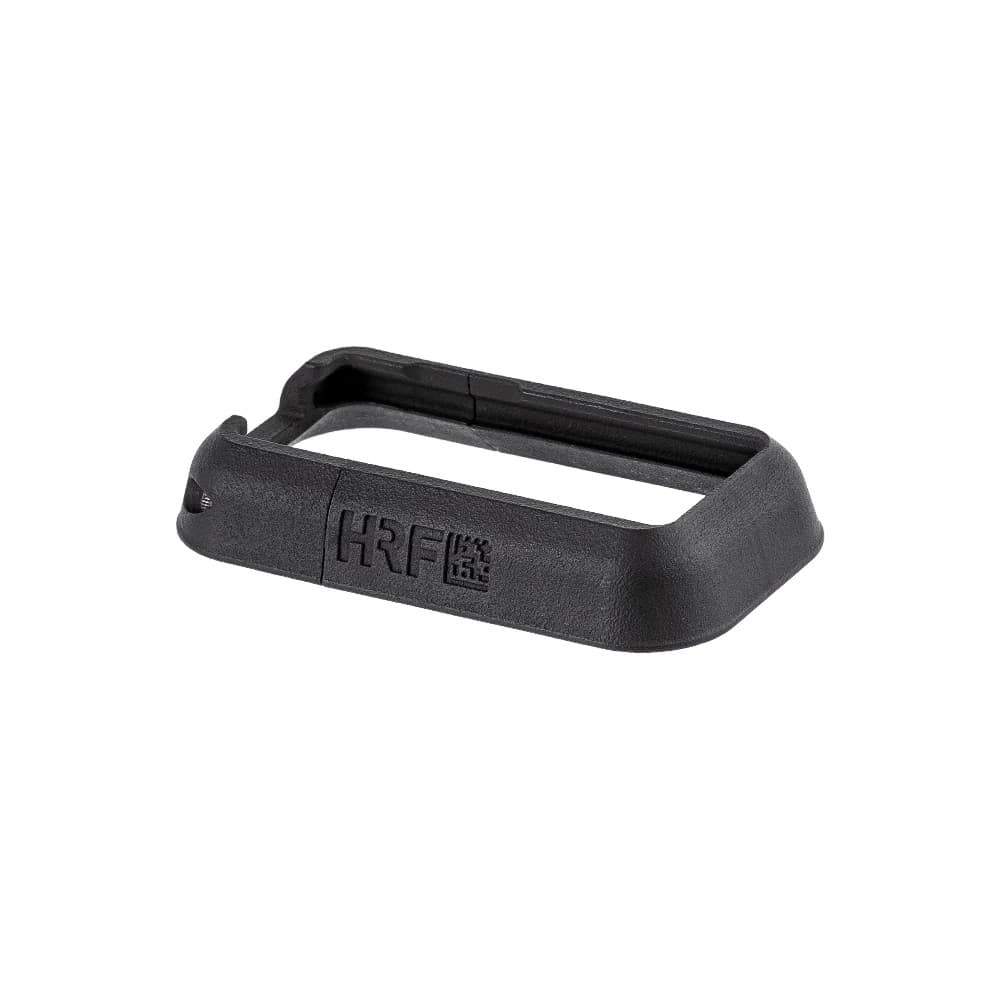

HRF Concepts RCM Rifle Combat Magwell

Best flared magwell for lowers outside the X-Flare fitment window

$50

Flared Rifle Combat Magwell in receiver-specific fits (milspec forged, LMT MARS, Aero, ADM, Radian, more); funnels reloads when you cannot see the magwell.

175% larger flared funnel surfaceReceiver-specific fits: milspec forged, LMT MARS-L/H, Aero M4E1/M5, ADM, Radian, SCAR, moreInjection-molded polymerBlack, FDE, ODG

Pros

• +Reloads index by feel, the failure point when running night vision
• +Receiver-specific fit avoids the universal-magwell wobble
• +Cheap insurance on an expensive rifle

Cons

• −Adds bulk at the magwell
• −Must order the correct receiver-specific variant for the host lower

Type: Flared magwellFits: Receiver-specific variants: milspec forged, LMT MARS-L/H, Aero M4E1/M5, ADM UIC, Radian ADAC, SIG M400/MCX, HK, B&T, SCARMaterial: Injection-molded polymer (2026 revision)Colors: Black, FDE, ODG

Verified Retailer

View Deal

Affiliate links (?)

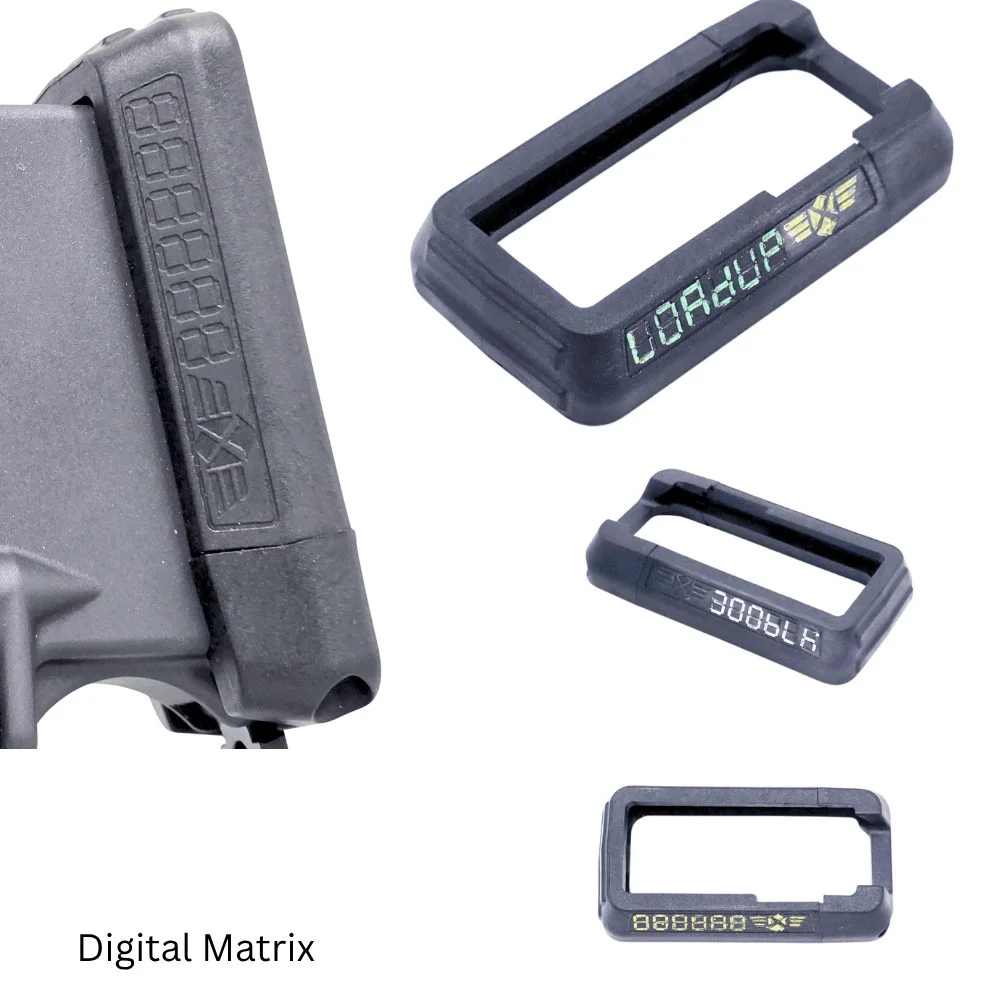

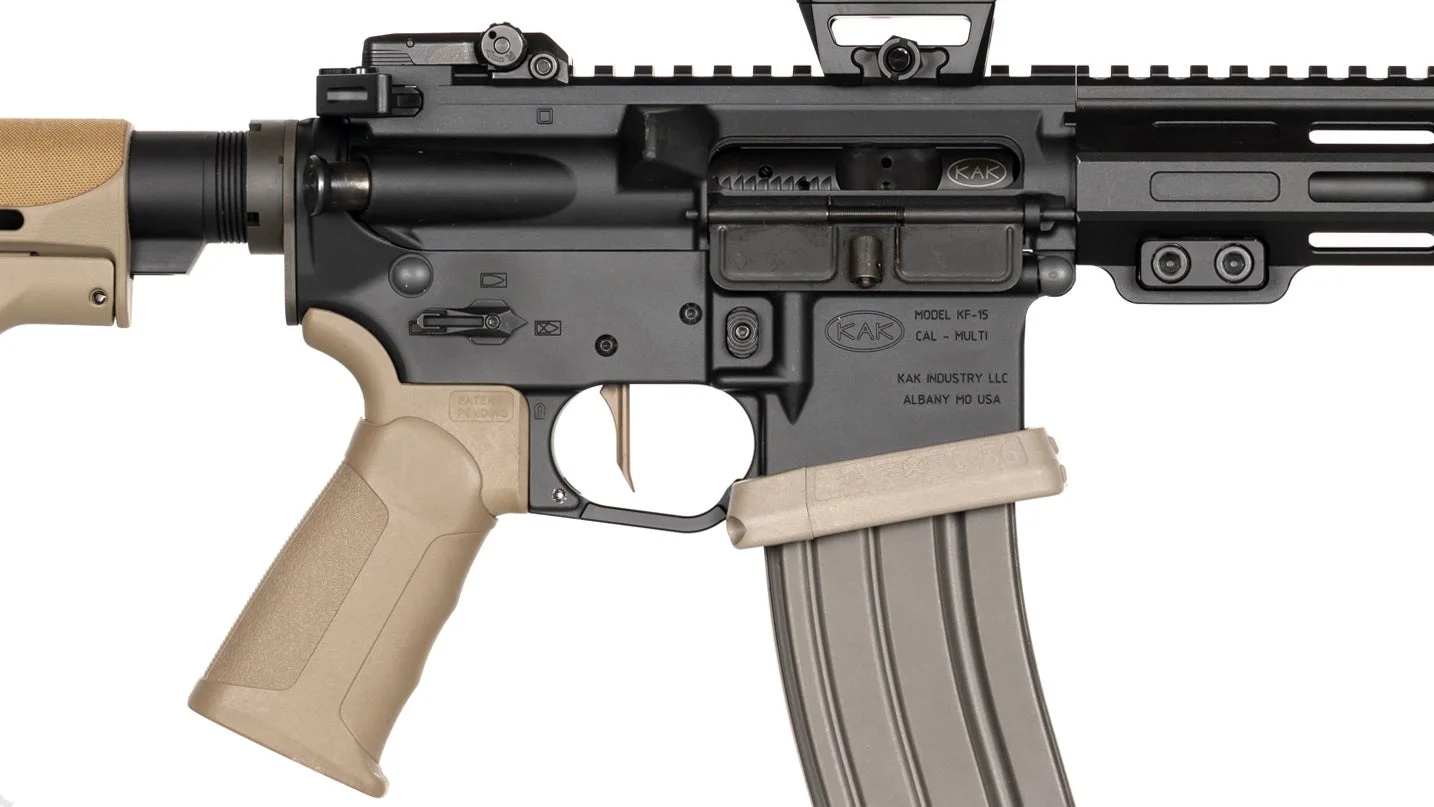

The X-Flare Digital is the second SKU in the launch lineup and is the same product with a flat marking face added to the front of the magwell. That face is intended to be stamped, lasered, or paint-filled with a caliber designation, a team or department ID, or a personal marking. The body, the inserts, the fitment window, the lifetime warranty, and the $39.95 price are all identical to the standard X-Flare. Colors match: Black, FDE, and Grey.

Mark a dedicated-caliber rifle, not a shared lower. On an AR that keeps one upper permanently, stamping 300 BLK on the magwell is a useful at-a-glance identifier for a rack of otherwise identical rifles. On a lower that swaps between 5.56 and 300 Blackout uppers, a permanent magwell mark is actively dangerous, because the mark stays put when the upper changes and a 300 BLK round chambered in a 5.56 barrel destroys the rifle. Caliber labeling belongs on the parts that carry the caliber, which is why our .300 Blackout vs 5.56 guide puts the labels on every 300 BLK upper and every 300 BLK magazine. The magwell surface earns its keep on unit, team, and rack identifiers, where departments and training schools have a real problem and no good place to put the answer short of engraving a receiver.

The X-Flare is aimed at the owner who has already committed to a mil-spec lower and does not want to sell it or trade up to a different receiver for a flared magwell. That covers most of the AR-15 install base. Plain forged lowers from PSA, Anderson, Aero (base AR-15, not M4E1), and Bravo Company Manufacturing, plus the service-rifle clone builds, outnumber billet and enhanced receivers by a wide margin in the aftermarket, and none of them come with a flared magwell from the factory. The X-Flare adds one for $40 with no receiver work and no gunsmithing.

For a first-build AR-15 owner working through the first-$500 upgrade sequence, a flared magwell is not the first purchase. Iron sights, a sling, a light, and a trigger pull all move the rifle further first. But it is a natural mid-cycle upgrade around dollar two-hundred, especially for a training rifle where fast reloads from a mag pouch are the deciding factor between hits at speed and a fumbled reload on the buzzer. The X-Flare gets you the flare without disturbing anything else on the rifle.

Duty and department rifles are the other clean fit. A patrol carbine built on a forged mil-spec lower gains a durable flared magwell for the price of a magazine, and the Digital variant gives an armorer a way to number, caliber, or unit-mark the rifle at the magwell without engraving the receiver. That is the kind of small-quantity fleet application the polymer body and injection-molded process actually suits well: consistent parts, replaceable, warranty-backed, cheap.

XTech puts installation at a few minutes and states that the magwell fits mil-spec receivers without removing any parts from the lower, so the trigger guard and pistol grip stay in place. The two included steel bolts run into the sonic-welded brass inserts. If the magwell sits loose on the receiver, XTech recommends small strips of grip tape or electrical tape on the front surface of the inside of the magwell to snug up the seat. That is a factory-recommended fitting step, not a workaround, and XTech names more than a dozen mil-spec lowers where it expects to need it.

The single ordering caution is fitment verification, and the chart is the only reliable way to do it. XTech's published non-fitment list names the Aero M4E1, every American Defense and SIG Sauer receiver, the LMT MARS-L, the PWS mil-spec lower, San Tan billet, the HK 416, and the POF P-415, among others. Base Aero Precision, FN 15, and VKTR mil-spec lowers are listed as no-issue fits. Do not infer the answer from whether the receiver was forged or billet, because the list crosses that line in both directions. When in doubt, our lower parts quality guide walks through the mil-spec vs enhanced distinction on the lower itself.

The XTech X-Flare is a cheap, well-specified way to put a flared magwell on a mil-spec AR-15 lower without buying a new receiver. At $39.95 in injection-molded glass-filled nylon with sonic-welded brass inserts and a lifetime warranty, it undercuts the receiver-specific polymer competition and it undercuts the alternative of replacing the lower entirely. The 1.75x funnel is the whole functional argument, and it is the same geometry the more expensive options deliver. The catch is not the material, it is the fitment list.

The Digital variant at the same $39.95 is the sleeper addition. Mixed rifle racks and small departments that need to visually differentiate otherwise identical carbines without engraving receivers get a purpose-built marking surface at no upcharge. For the broader first-upgrade-sequence roadmap around this part, including triggers, controls, and iron sights, see our first-$500 AR-15 upgrades guide. To spec a full AR-15 build around a forged mil-spec lower, use the rifle builder.
